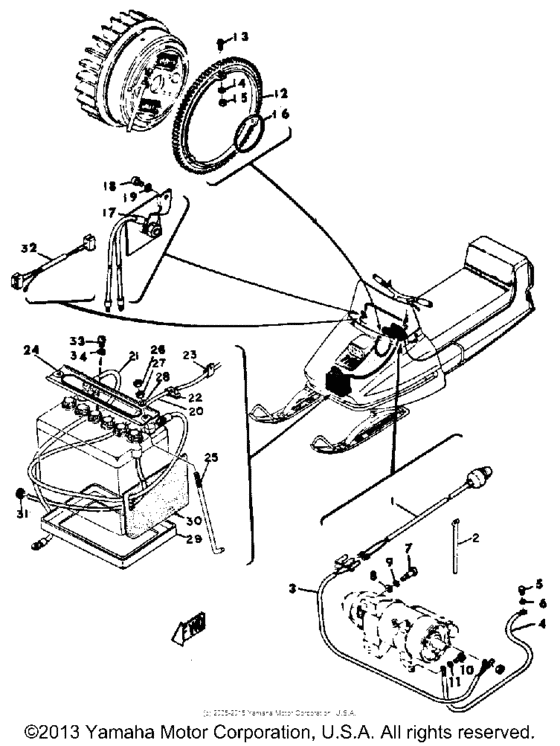

Electric starter unit Diagram Yamaha EW433
- Model code
- EW433
- Engine Capacity
- 433
- Year
- 1972
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
811-83970-00-00
Starter Switch Assembly
|
811-83970-00-00 |
— | ||
|
2
|
2
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
3
|
3
822-82127-00-00
Wire, Lead 2
|
822-82127-00-00 |
— | ||
|
4
|
4
819-82117-00-00
Wire, Lead
|
819-82117-00-00 |
— | ||
|
5
|
5
970-11060-10-00
Bolt
|
970-11060-10-00 |
— | ||
| replacement | |||||
|
5
|
5
97017-06010-00 Bolt |
97017-06010-00 |
from US $1.34 |
||
|
6
|
6
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
7
|
7
901-49080-56-00 Screw, Spec''l Shape |
901-49080-56-00 |
US $1.84 |
||
|
8
|
8
90201-09116-00
Washer, Plate
|
90201-09116-00 |
— | ||
|
9
|
9
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
10
|
10
985-01080-20-00 Screw, Pan Head (92501-08020) |
985-01080-20-00 |
from US $3.58 |
||
| replacement | |||||
|
10
|
10
98580-08020-00 Screw, Pan Head |
98580-08020-00 |
from US $4.68 |
||
|
11
|
11
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
12
|
12
811-81891-00-00
Gear, Ring
|
811-81891-00-00 |
— | ||
|
13
|
13
901-49060-61-00
Screw, Spec''l Shape
|
901-49060-61-00 |
— | ||
|
14
|
14
811-81894-00-00
Washer, Special
|
811-81894-00-00 |
— | ||
|
15
|
15
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
16
|
16
932-10611-17-00
O-Ring
|
932-10611-17-00 |
— | ||
|
17
|
17
812-81970-41-00
Rectifier Assembly
|
812-81970-41-00 |
— | ||
|
17
|
17
827-81970-40-00
Rectifier Assembly
|
827-81970-40-00 |
— | ||
|
18
|
18
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
18
|
18
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
19
|
19
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
20
|
20
824-82115-00-00 Wire, Plus Lead |
824-82115-00-00 |
US $36.34 |
||
|
21
|
21
822-82116-00-00
Wire, Minus Lead
|
822-82116-00-00 |
— | ||
|
22
|
22
822-82591-00-00
Band
|
822-82591-00-00 |
— | ||
|
23
|
23
90465-06013-00 Clamp |
90465-06013-00 |
US $1.71 |
||
|
24
|
24
822-82136-00-00
Plate, Batt Fitting
|
822-82136-00-00 |
— | ||
|
25
|
25
901-49060-24-00
Screw, Spec''l Shape
|
901-49060-24-00 |
— | ||
|
26
|
26
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
| replacement | |||||
|
26
|
26
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
27
|
27
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
28
|
28
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
29
|
29
822-82118-00-00 Seal, Battery |
822-82118-00-00 |
US $6.97 |
||
|
30
|
30
807-82122-00-00 Seat, Battery |
807-82122-00-00 |
US $8.06 |
||
|
30
|
30
807-82122-01-00
Seat, Battery
|
807-82122-01-00 |
— | ||
|
31
|
31
90480-12013-00 Grommet |
90480-12013-00 |
from US $1.84 |
||
|
32
|
32
827-82531-00-00
Wire, Lead
|
827-82531-00-00 |
— | ||
|
33
|
33
985-80060-10-00 Screw, Pan Head (92503-06010-0092503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
34
|
34
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
