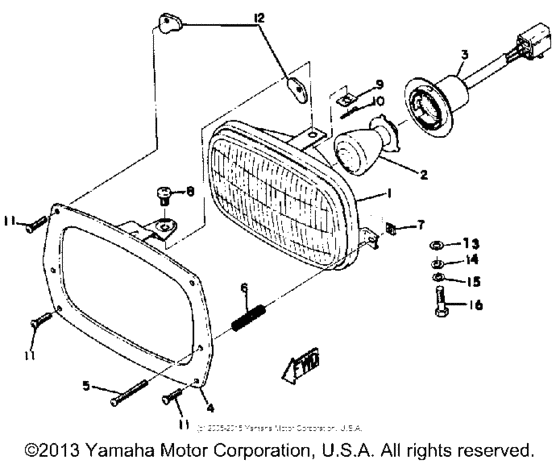

Head lamp Diagram Yamaha EW433
- Model code
- EW433
- Engine Capacity
- 433
- Year
- 1972
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
826-84310-00-00
Headlight Unit Assembly
|
826-84310-00-00 |
— | ||
|
1
|
1
826-84320-00-00 Lens Assembly |
826-84320-00-00 |
US $26.80 |
||
|
2
|
2
826-84314-00-00
Bulb, Headlight
|
826-84314-00-00 |
— | ||
|
3
|
3
826-84312-00-00
Socket
|
826-84312-00-00 |
— | ||
|
4
|
4
811-84315-00-00
Rim, Headlight
|
811-84315-00-00 |
— | ||
|
5
|
5
807-84331-00-00
Screw, Rim Adjusting
|
807-84331-00-00 |
— | ||
|
6
|
6
807-84332-00-00
Spring, Screw
|
807-84332-00-00 |
— | ||
|
7
|
7
807-84334-00-00
Nut, Adjusting
|
807-84334-00-00 |
— | ||
|
8
|
8
811-84338-00-00
Collar, Body Ftng
|
811-84338-00-00 |
— | ||
|
9
|
9
807-84326-00-00
Nut
|
807-84326-00-00 |
— | ||
|
10
|
10
807-84351-00-00
Clamp, Cord
|
807-84351-00-00 |
— | ||
|
11
|
11
986-03040-15-00 Screw, Oval Head |
986-03040-15-00 |
from US $1.48 |
||
|
12
|
12
811-84316-00-00
Nut, Body Fitting
|
811-84316-00-00 |
— | ||
|
13
|
13
807-84344-00-00
Washer, Plain
|
807-84344-00-00 |
— | ||
|
14
|
14
92906-05200-00 Washer |
92906-05200-00 |
from US $1.56 |
||
| replacements | |||||
|
14
|
14
92907-05200-00 Washer |
92907-05200-00 |
from US $1.56 |
||
|
14
|
14
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.07 |
||
|
15
|
15
929-06051-00-00
Washer, Spring
|
929-06051-00-00 |
— | ||
| replacement | |||||
|
15
|
15
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
|
16
|
16
97006-05020-00 Bolt |
97006-05020-00 |
from US $1.42 |
||
| replacements | |||||
|
16
|
16
90101-05396-00 Bolt (2E9) |
90101-05396-00 |
from US $1.70 |
||
|
16
|
16
970-27050-20-00
Bolt
|
970-27050-20-00 |
— | ||
