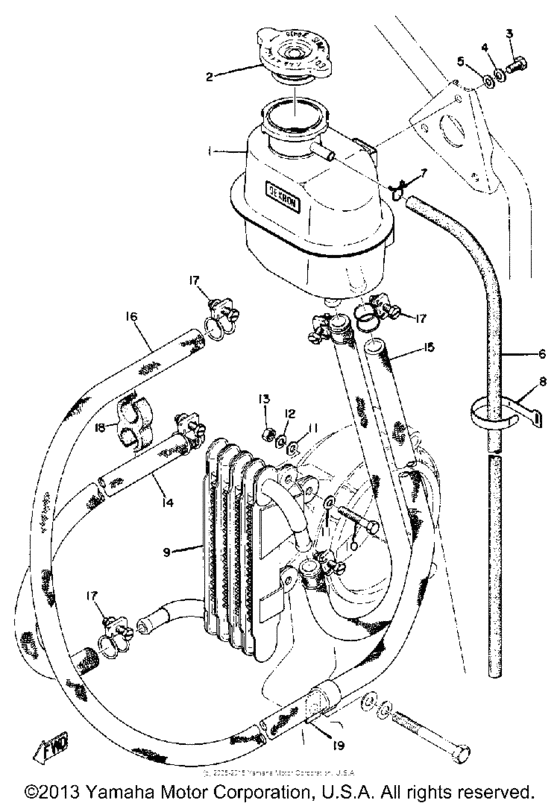

Oil tank & cooler Diagram Yamaha EW643
- Model code
- EW643
- Engine Capacity
- 643
- Year
- 1972
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
834-21811-00-00
Tank, Tq/conv Oil
|
834-21811-00-00 |
— | ||
|
2
|
2
11H-12462-00-00 Cap, Radiator |
11H-12462-00-00 |
from US $51.06 |
||
|
3
|
3
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
3
|
3
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.94 |
||
|
4
|
4
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.90 |
||
|
5
|
5
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $0.90 |
||
|
6
|
6
904-45111-54-00
Hose
|
904-45111-54-00 |
— | ||
|
7
|
7
904-67100-08-00
Clip
|
904-67100-08-00 |
— | ||
| replacements | |||||
|
7
|
7
90467-100A1-00 Clip |
90467-100A1-00 |
from US $1.13 |
||
|
7
|
7
90467-11106-00 Clip |
90467-11106-00 |
from US $1.13 |
||
|
8
|
8
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.50 |
||
|
9
|
9
834-21841-00-00
Cooler
|
834-21841-00-00 |
— | ||
|
10
|
10
97313-06040-00 Bolt (682)682 |
97313-06040-00 |
from US $1.13 |
||
| replacement | |||||
|
10
|
10
97095-06040-00 Bolt682 |
97095-06040-00 |
from US $1.13 |
||
|
11
|
11
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $0.90 |
||
|
12
|
12
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.90 |
||
|
13
|
13
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $0.90 |
||
|
14
|
14
834-21816-00-00
Pipe 1
|
834-21816-00-00 |
— | ||
|
15
|
15
834-21817-00-00
Pipe 2
|
834-21817-00-00 |
— | ||
|
16
|
16
834-21818-00-00
Pipe 3
|
834-21818-00-00 |
— | ||
|
17
|
17
904-60190-39-00
Clamp, Hose (834-21822-00)
834-21822-00 |
904-60190-39-00 |
— | ||
|
18
|
18
834-21836-01-00
Binder, Hose
|
834-21836-01-00 |
— | ||
|
19
|
19
90465-10018-00
Clamp
|
90465-10018-00 |
— | ||
