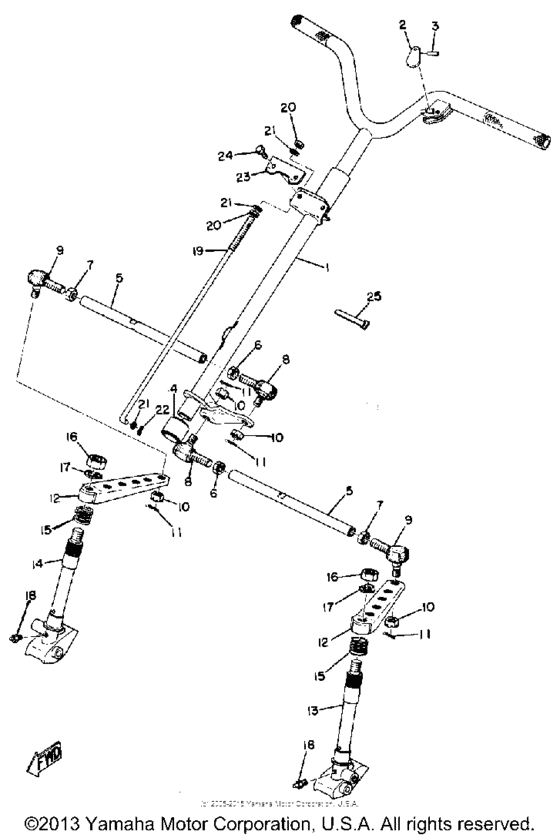

Steering Diagram Yamaha EW643
- Model code
- EW643
- Engine Capacity
- 643
- Year
- 1972
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
834-23811-00-00
Column, Steering
|
834-23811-00-00 |
— | ||
|
2
|
2
803-83965-00-00
Lever, Lock
|
803-83965-00-00 |
— | ||
|
3
|
3
90249-04022-00
Pin, Spec''l Shape
|
90249-04022-00 |
— | ||
|
4
|
4
806-23875-00-00
Bearing, Strg Lower
|
806-23875-00-00 |
— | ||
|
5
|
5
826-23821-00-00
Rod, Steering Relay
|
826-23821-00-00 |
— | ||
|
6
|
6
90170-12055-00 Nut |
90170-12055-00 |
from US $1.80 |
||
| replacement | |||||
|
6
|
6
95317-12700-00 Nut, Hexagon Small |
95317-12700-00 |
from US $1.80 |
||
|
7
|
7
90170-12054-00 Nut |
90170-12054-00 |
from US $1.65 |
||
|
8
|
8
821-23841-90-00
Joint, Universal 1
|
821-23841-90-00 |
— | ||
|
9
|
9
821-23845-90-00
Joint, Universal 2
|
821-23845-90-00 |
— | ||
|
10
|
10
901-71100-02-00
Nut, Castle
|
901-71100-02-00 |
— | ||
|
11
|
11
91401-25030-00 Pin. Cotter |
91401-25030-00 |
from US $1.50 |
||
| replacement | |||||
|
11
|
11
91490-25030-00 Pin. Cotter |
91490-25030-00 |
from US $1.50 |
||
|
12
|
12
810-23851-00-00
Arm, Outside 1
|
810-23851-00-00 |
— | ||
|
13
|
13
810-23853-00-00
Column, Ski 1
|
810-23853-00-00 |
— | ||
|
14
|
14
810-23854-00-00
Column, Ski 2
|
810-23854-00-00 |
— | ||
|
15
|
15
905-01351-54-00
Spring, Compression
|
905-01351-54-00 |
— | ||
|
16
|
16
95306-12600-00 Nut |
95306-12600-00 |
from US $1.50 |
||
| replacement | |||||
|
16
|
16
95337-12600-00 Nut |
95337-12600-00 |
from US $1.50 |
||
|
17
|
17
902-15120-31-00
Washer, Lock (810-23857-00)
810-23857-00 |
902-15120-31-00 |
— | ||
|
18
|
18
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $2.76 |
||
|
19
|
19
810-23861-00-00
Bar, Tension
|
810-23861-00-00 |
— | ||
|
20
|
20
95316-06700-00 Nut |
95316-06700-00 |
from US $1.05 |
||
| replacement | |||||
|
20
|
20
95317-06700-00 Nut(Jn5) |
95317-06700-00 |
from US $1.05 |
||
|
21
|
21
929-06062-00-00
Washer
|
929-06062-00-00 |
— | ||
| replacement | |||||
|
21
|
21
92907-06200-00 Washer(6Ta) |
92907-06200-00 |
from US $0.90 |
||
|
22
|
22
90468-10050-00 Clip (156-83525-00) |
90468-10050-00 |
from US $1.80 |
||
|
23
|
23
810-23894-00-00
Washer, Lock 1
|
810-23894-00-00 |
— | ||
|
24
|
24
970-16060-20-00
Bolt(84J)
|
970-16060-20-00 |
— | ||
| replacement | |||||
|
24
|
24
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.05 |
||
|
25
|
25
J45-83936-00-00 Band Switch Cord Assy |
J45-83936-00-00 |
from US $1.50 |
||
| replacement | |||||
|
25
|
25
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.50 |
||
