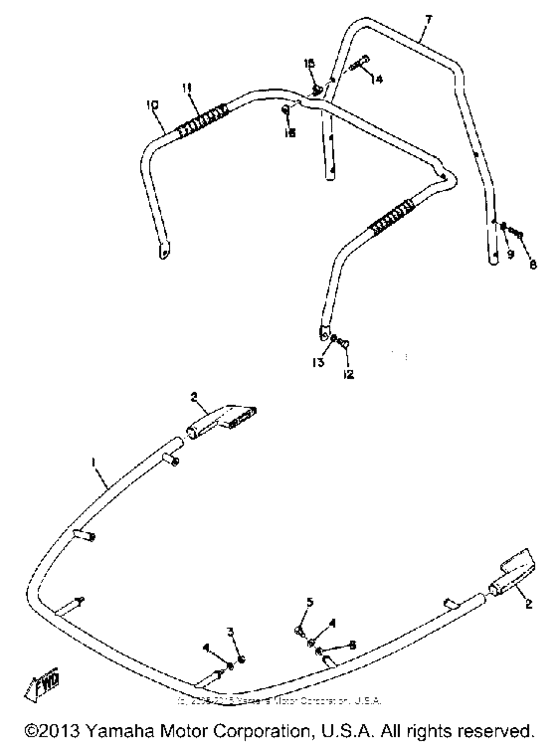

Bumper Diagram Yamaha EW643
- Model code
- EW643
- Engine Capacity
- 643
- Year
- 1973
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
838-77510-00-00
Front Bumper
|
838-77510-00-00 |
— | ||
|
2
|
2
838-77523-00-00
End, Bumper
|
838-77523-00-00 |
— | ||
|
3
|
3
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
| replacement | |||||
|
3
|
3
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
4
|
4
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
5
|
5
97313-08016-00 Bolt, Hexagon |
97313-08016-00 |
from US $2.07 |
||
| replacement | |||||
|
5
|
5
97013-08016-00 Bolt |
97013-08016-00 |
from US $1.42 |
||
|
6
|
6
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
7
|
7
838-77541-00-00 Bumper, Rear 1 |
838-77541-00-00 |
US $81.61 |
||
|
8
|
8
901-52060-03-00
Screw, Countersunk
|
901-52060-03-00 |
— | ||
|
9
|
9
92990-06500-00
Washer
|
92990-06500-00 |
— | ||
|
10
|
10
852-77571-00-00
Grip, Assist 1
|
852-77571-00-00 |
— | ||
|
11
|
11
838-77575-00-00 Cover, Assist Grip |
838-77575-00-00 |
US $10.89 |
||
|
12
|
12
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
12
|
12
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
13
|
13
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
14
|
14
90149-06054-00
Screw, Spec''l Shape
|
90149-06054-00 |
— | ||
|
15
|
15
806-77515-00-00
Bush, Rubber 1
|
806-77515-00-00 |
— | ||
|
16
|
16
806-77573-00-00
Nut, Special
|
806-77573-00-00 |
— | ||
