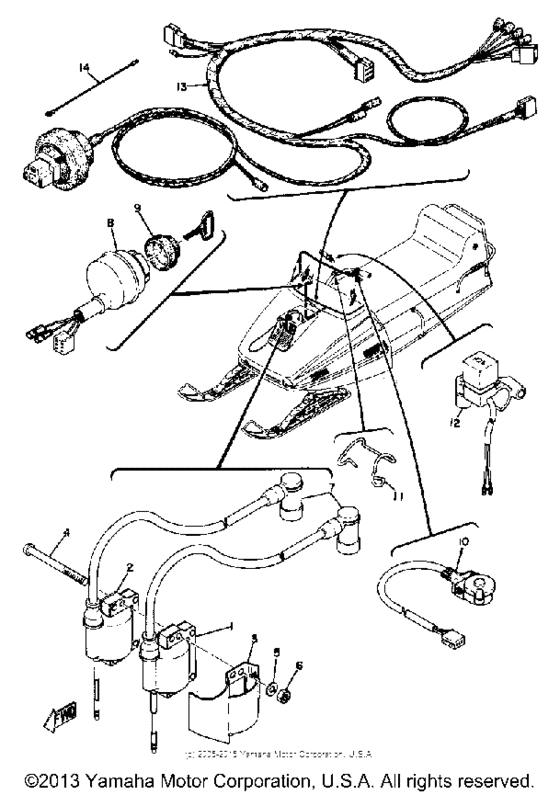

Electrical (2) Diagram Yamaha EW643
- Model code
- EW643
- Engine Capacity
- 643
- Year
- 1973
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
847-82310-40-00 Ignition Coil Assembly |
847-82310-40-00 |
US $37.67 |
||
|
2
|
2
847-82320-40-00 Ignition Coil Assembly |
847-82320-40-00 |
US $37.08 |
||
|
3
|
3
838-82314-00-00
Cover, Ignitn Coil
|
838-82314-00-00 |
— | ||
|
4
|
4
98506-06070-00 Screw Pan Head |
98506-06070-00 |
from US $1.21 |
||
| replacement | |||||
|
4
|
4
98507-06070-00 Screw, Pan Head |
98507-06070-00 |
from US $1.21 |
||
|
5
|
5
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
5
|
5
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
6
|
6
95316-06600-00 Nut (31A) |
95316-06600-00 |
from US $1.21 |
||
| replacement | |||||
|
6
|
6
95317-06600-00 Nut(6Ta) |
95317-06600-00 |
from US $1.21 |
||
|
7
|
7
663-82370-01-00 Plug Cap Assy |
663-82370-01-00 |
from US $7.62 |
||
|
8
|
8
838-82508-20-00
Main Switch Assembly
|
838-82508-20-00 |
— | ||
|
9
|
9
806-82516-00-00
Collar, Main Switch
|
806-82516-00-00 |
— | ||
|
10
|
10
822-82530-00-00
Stop Switch Assembly
|
822-82530-00-00 |
— | ||
|
11
|
11
841-82594-00-00
Clamp
|
841-82594-00-00 |
— | ||
|
12
|
12
883-83976-00-00
Switch, Handle 1
|
883-83976-00-00 |
— | ||
|
13
|
13
838-82590-21-00 Wire Harness Assembly |
838-82590-21-00 |
US $37.67 |
||
|
14
|
14
838-82519-00-00
Wire, Earth Lead
|
838-82519-00-00 |
— | ||
