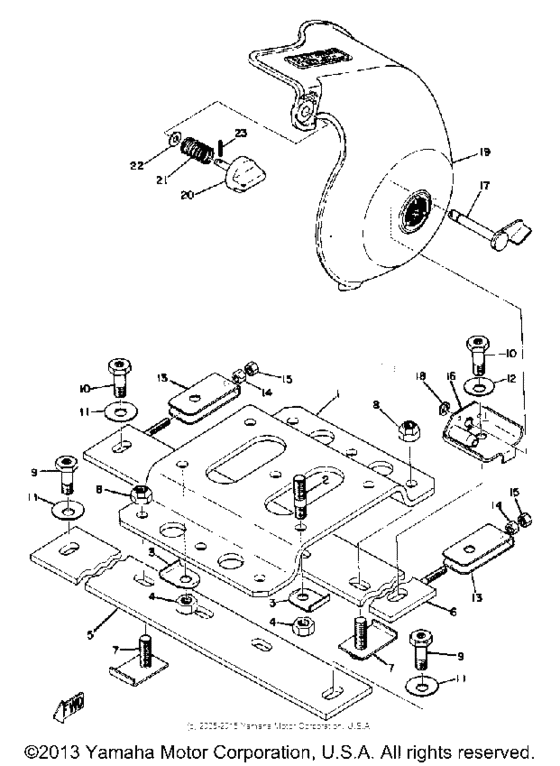

Engine bracket Diagram Yamaha EW643
- Model code
- EW643
- Engine Capacity
- 643
- Year
- 1973
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
834-21411-00-00
Bracket, Engine 1
|
834-21411-00-00 |
— | ||
|
2
|
2
901-16100-84-00
Bolt, Stud
|
901-16100-84-00 |
— | ||
|
3
|
3
902-15100-76-00
Washer, Lock
|
902-15100-76-00 |
— | ||
|
4
|
4
95303-10600-00 Nut |
95303-10600-00 |
from US $1.56 |
||
| replacement | |||||
|
4
|
4
95314-10600-00 Nut |
95314-10600-00 |
from US $1.45 |
||
|
5
|
5
834-21419-00-00
Bracket, Engine 2
|
834-21419-00-00 |
— | ||
|
6
|
6
834-21429-00-00
Bracket, Engine 3
|
834-21429-00-00 |
— | ||
|
7
|
7
834-21484-00-00
Bolt, Eng Mntng 4
|
834-21484-00-00 |
— | ||
|
8
|
8
901-85100-30-00
Nut, Self-Locking
|
901-85100-30-00 |
— | ||
|
9
|
9
901-01100-57-00
Bolt
|
901-01100-57-00 |
— | ||
|
10
|
10
901-06100-15-00
Bolt, Dome Head
|
901-06100-15-00 |
— | ||
|
11
|
11
902-08100-13-00
Washer, Conical Spr
|
902-08100-13-00 |
— | ||
|
12
|
12
90208-10012-00 Washer, Conical Spring |
90208-10012-00 |
from US $1.35 |
||
|
13
|
13
834-21475-00-00
Plate, Engine Adjusting
|
834-21475-00-00 |
— | ||
|
14
|
14
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
15
|
15
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
| replacement | |||||
|
15
|
15
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
16
|
16
821-77315-00-00
Bracket 1
|
821-77315-00-00 |
— | ||
|
17
|
17
806-77314-00-00 Arm, Fitting |
806-77314-00-00 |
US $19.33 |
||
|
18
|
18
990-09066-00-00
Circlip
|
990-09066-00-00 |
— | ||
| replacement | |||||
|
18
|
18
99001-06600-00 Circlip |
99001-06600-00 |
from US $1.56 |
||
|
19
|
19
810-77311-01-00
Guard, Drive
|
810-77311-01-00 |
— | ||
|
20
|
20
806-77324-00-00
Knob
|
806-77324-00-00 |
— | ||
|
21
|
21
905-01161-03-00
Spring 1
|
905-01161-03-00 |
— | ||
| replacement | |||||
|
21
|
21
806-77325-00-00
SPRING
|
806-77325-00-00 |
— | ||
|
22
|
22
90201-06063-00 Washer, Plate |
90201-06063-00 |
from US $1.70 |
||
| replacement | |||||
|
22
|
22
90201-06095-00 Washer, Plate |
90201-06095-00 |
from US $1.70 |
||
|
23
|
23
91690-25016-00 Pin, Spring |
91690-25016-00 |
from US $2.98 |
||
