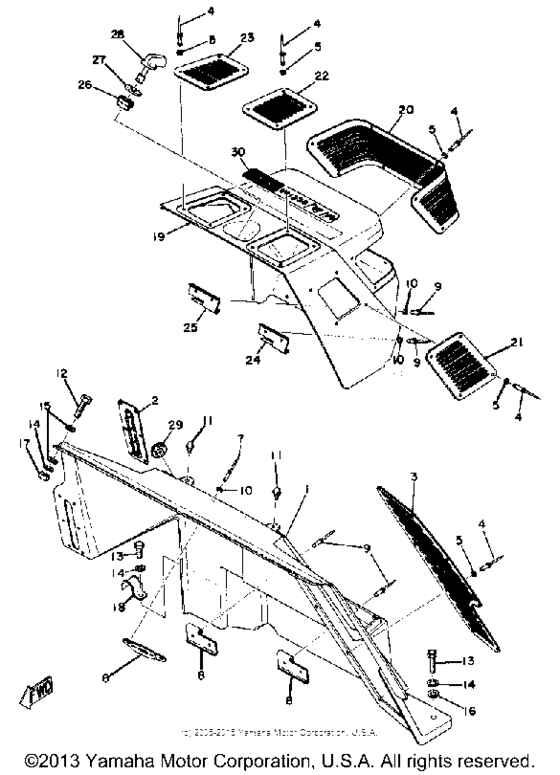

Engine cowl Diagram Yamaha EW643
- Model code
- EW643
- Engine Capacity
- 643
- Year
- 1973
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
3
|
3
834-77441-00-00
Louver 1
|
834-77441-00-00 |
— | ||
|
4
|
4
90267-32070-00 Rivet, Blind |
90267-32070-00 |
from US $2.13 |
||
|
5
|
5
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
6
|
6
807-77424-00-00
Bracket 4
|
807-77424-00-00 |
— | ||
|
7
|
7
902-67400-28-00
Rivet, Blind
|
902-67400-28-00 |
— | ||
|
8
|
8
811-77478-00-00 Hinge 3 |
811-77478-00-00 |
US $4.99 |
||
|
9
|
9
902-67400-27-00
Rivet, Blind
|
902-67400-27-00 |
— | ||
|
10
|
10
90201-04015-00 Washer, Plate |
90201-04015-00 |
from US $2.09 |
||
|
11
|
11
811-77461-00-00
Damper 1
|
811-77461-00-00 |
— | ||
|
12
|
12
970-16060-20-00
Bolt(84J)
|
970-16060-20-00 |
— | ||
| replacement | |||||
|
12
|
12
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
13
|
13
970-16060-20-00
Bolt(84J)
|
970-16060-20-00 |
— | ||
| replacement | |||||
|
13
|
13
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
14
|
14
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
14
|
14
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
15
|
15
90201-062A8-00 Washer, Plate |
90201-062A8-00 |
from US $1.84 |
||
|
16
|
16
902-01060-59-00
Washer, Plate
|
902-01060-59-00 |
— | ||
| replacements | |||||
|
16
|
16
90201-06057-00 Washer, Plate |
90201-06057-00 |
from US $1.28 |
||
|
16
|
16
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
|
17
|
17
95316-06600-00 Nut (31A) |
95316-06600-00 |
from US $1.21 |
||
| replacement | |||||
|
17
|
17
95317-06600-00 Nut(6Ta) |
95317-06600-00 |
from US $1.21 |
||
|
18
|
18
90462-10007-00 Clamp |
90462-10007-00 |
from US $6.61 |
||
|
20
|
20
852-77442-00-00
Louver 2
|
852-77442-00-00 |
— | ||
|
21
|
21
834-77443-00-00
Louver 3
|
834-77443-00-00 |
— | ||
|
22
|
22
834-77444-00-00
Louver 4
|
834-77444-00-00 |
— | ||
|
24
|
24
811-77475-00-00
Hinge 1
|
811-77475-00-00 |
— | ||
|
25
|
25
811-77476-00-00
Hinge 2
|
811-77476-00-00 |
— | ||
|
26
|
26
807-77446-00-00
Bushing
|
807-77446-00-00 |
— | ||
|
27
|
27
90201-08103-00 Washer, Plate |
90201-08103-00 |
from US $1.28 |
||
|
28
|
28
811-42753-00-00
Fastner
|
811-42753-00-00 |
— | ||
|
29
|
29
102-82598-00-00
Grommet
|
102-82598-00-00 |
— | ||
|
30
|
30
852-77351-00-00
Emblem 1
|
852-77351-00-00 |
— | ||
