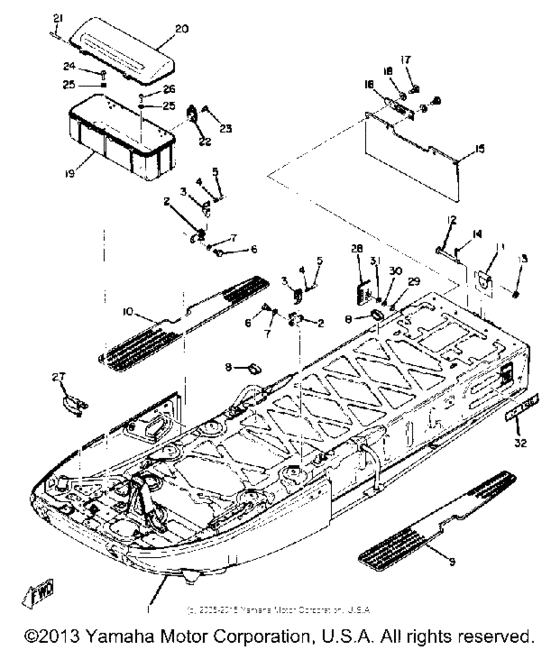

Frame Diagram Yamaha EW643
- Model code
- EW643
- Engine Capacity
- 643
- Year
- 1973
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
807-77170-00-00 Latch Assembly |
807-77170-00-00 |
US $12.44 |
||
|
1
|
1
852-21910-00-00
Frame
|
852-21910-00-00 |
— | ||
|
3
|
3
806-77173-00-00
Lever, Latch 1
|
806-77173-00-00 |
— | ||
|
4
|
4
905-08100-12-00
Spring, Torsion
|
905-08100-12-00 |
— | ||
|
5
|
5
902-49040-68-00
Pin, Specl Shape
|
902-49040-68-00 |
— | ||
|
6
|
6
973-13050-16-00
Bolt, Hexagon
|
973-13050-16-00 |
— | ||
|
7
|
7
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
8
|
8
904-64130-08-00
Clamp
|
904-64130-08-00 |
— | ||
|
9
|
9
806-27413-00-00
Cover, Footrest
|
806-27413-00-00 |
— | ||
|
10
|
10
806-27423-00-00
Cover, Footrest
|
806-27423-00-00 |
— | ||
|
11
|
11
802-77591-00-00
Bracket, Hitch 1
|
802-77591-00-00 |
— | ||
|
12
|
12
917-01081-02-00
Pin, Clevis
|
917-01081-02-00 |
— | ||
|
13
|
13
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
14
|
14
914-01250-20-00
Pin. Cotter
|
914-01250-20-00 |
— | ||
| replacement | |||||
|
14
|
14
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.34 |
||
|
15
|
15
807-77595-02-00
Flap
|
807-77595-02-00 |
— | ||
|
16
|
16
807-77593-00-00
Plate, Flap 1
|
807-77593-00-00 |
— | ||
|
17
|
17
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
17
|
17
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
18
|
18
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
19
|
19
827-77391-00-00 Luggage Box |
827-77391-00-00 |
US $43.63 |
||
|
20
|
20
822-77392-00-00
Cover, Luggage Box
|
822-77392-00-00 |
— | ||
|
21
|
21
902-49030-21-00
Pin, Spec''l Shape
|
902-49030-21-00 |
— | ||
|
22
|
22
822-77340-00-00
Lugge Box Ltch Assembly
|
822-77340-00-00 |
— | ||
|
23
|
23
98702-03008-00 Screw, Flat Head |
98702-03008-00 |
from US $2.27 |
||
| replacement | |||||
|
23
|
23
98707-03008-00 Screw, Flat Head |
98707-03008-00 |
from US $2.27 |
||
|
24
|
24
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
24
|
24
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
25
|
25
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
26
|
26
985-11060-25-00
Screw Pan Head
|
985-11060-25-00 |
— | ||
| replacement | |||||
|
26
|
26
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
27
|
27
841-82591-00-00
Band
|
841-82591-00-00 |
— | ||
|
28
|
28
821-85131-00-00
Reflector, Rear 1
|
821-85131-00-00 |
— | ||
|
29
|
29
95701-06300-00 Nut, Nylon |
95701-06300-00 |
from US $1.56 |
||
| replacement | |||||
|
29
|
29
95707-06300-00 Nut, Nylon |
95707-06300-00 |
from US $1.56 |
||
|
30
|
30
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
31
|
31
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
32
|
32
852-77354-00-00
Emblem 4
|
852-77354-00-00 |
— | ||
