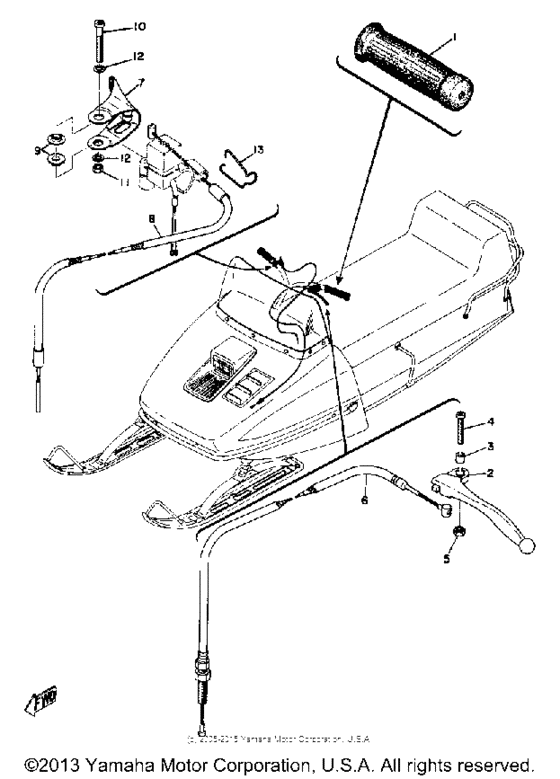

Grip & wiring Diagram Yamaha EW643
- Model code
- EW643
- Engine Capacity
- 643
- Year
- 1973
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
801-26241-01-00 Grip |
801-26241-01-00 |
from US $8.22 |
||
| replacement | |||||
|
1
|
1
801-26241-02-00 Grip |
801-26241-02-00 |
from US $8.22 |
||
|
2
|
2
803-83912-00-38 Lever L |
803-83912-00-38 |
from US $7.49 |
||
|
3
|
3
802-83913-00-00 Collar, Lever 1 |
802-83913-00-00 |
from US $1.70 |
||
|
4
|
4
901-57050-06-00 Screw,pan Head |
901-57050-06-00 |
US $1.73 |
||
| replacement | |||||
|
4
|
4
901-57050-55-00 Screw, Pan Head(8W1) |
901-57050-55-00 |
US $1.73 |
||
|
5
|
5
953-11057-00-00
Nut(3Fv)
|
953-11057-00-00 |
— | ||
| replacement | |||||
|
5
|
5
953-17057-00-00 Nut |
953-17057-00-00 |
from US $2.42 |
||
|
6
|
6
806-26340-00-00
Cable, Brake
|
806-26340-00-00 |
— | ||
|
7
|
7
903-87066-81-00
Collar
|
903-87066-81-00 |
— | ||
| replacement | |||||
|
7
|
7
90387-06857-00 Collar |
90387-06857-00 |
from US $1.42 |
||
|
7
|
7
8G8-42138-00-00
Lever, Throttle
|
8G8-42138-00-00 |
— | ||
|
7
|
7
999-99010-28-00
Throttle Lever
|
999-99010-28-00 |
— | ||
|
7
|
7
98580-06550-00 Screw, Pan Head |
98580-06550-00 |
from US $4.11 |
||
|
8
|
8
841-26311-00-00
Cable, Throttle 1
|
841-26311-00-00 |
— | ||
|
9
|
9
90387-062M9-00 Collar |
90387-062M9-00 |
from US $1.70 |
||
|
10
|
10
901-57060-04-00 Screw, Pan Head (810-83925-00)810-83925-00 |
901-57060-04-00 |
US $4.25 |
||
|
11
|
11
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
| replacement | |||||
|
11
|
11
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
12
|
12
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
13
|
13
90468-10017-00
Clip (821-26391-00)
821-26391-00 |
90468-10017-00 |
— | ||
