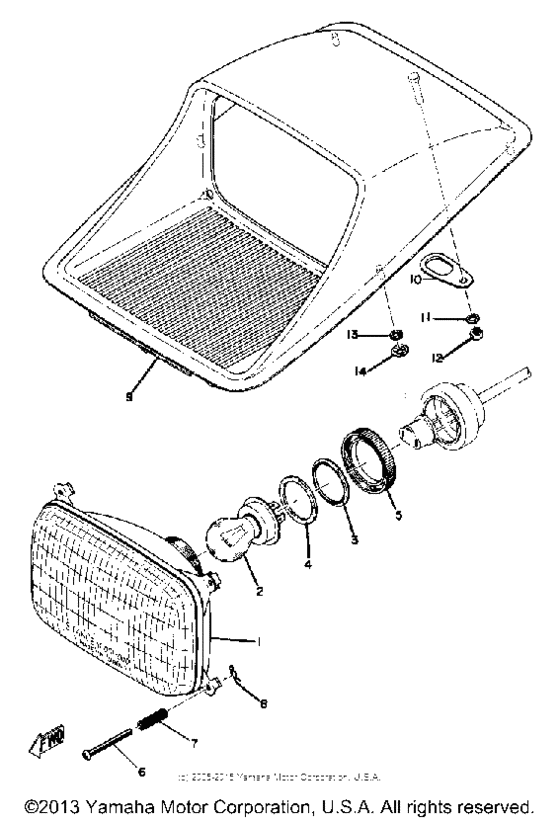

Headlight Diagram Yamaha EW643
- Model code
- EW643
- Engine Capacity
- 643
- Year
- 1973
- Sales region
- USA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
838-84320-01-00
Lens Assembly
|
838-84320-01-00 |
— | ||
|
2
|
2
838-84314-00-00
Bulb, Headlight
|
838-84314-00-00 |
— | ||
|
3
|
3
838-84328-00-00
Spacer
|
838-84328-00-00 |
— | ||
|
4
|
4
838-84327-00-00 Washer, Special |
838-84327-00-00 |
US $6.31 |
||
|
5
|
5
838-84317-00-00
Nut
|
838-84317-00-00 |
— | ||
|
6
|
6
8M6-84331-00-00 Screw, Rim Adjusting |
8M6-84331-00-00 |
from US $5.83 |
||
|
7
|
7
8A5-84332-00-00 Spring, Adjust Screw |
8A5-84332-00-00 |
from US $1.35 |
||
|
8
|
8
807-84351-00-00
Clamp, Cord
|
807-84351-00-00 |
— | ||
|
9
|
9
838-84311-00-00
Body, Headlight
|
838-84311-00-00 |
— | ||
|
10
|
10
90464-16009-00
Clamp
|
90464-16009-00 |
— | ||
|
11
|
11
929-06051-00-00
Washer, Spring
|
929-06051-00-00 |
— | ||
| replacement | |||||
|
11
|
11
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.50 |
||
|
12
|
12
95306-05600-00 Nut |
95306-05600-00 |
from US $1.26 |
||
| replacement | |||||
|
12
|
12
95317-05600-00 Nut |
95317-05600-00 |
from US $1.80 |
||
|
13
|
13
838-77143-00-00
Emblem 3
|
838-77143-00-00 |
— | ||
|
14
|
14
90183-05003-00 Nut, Spring |
90183-05003-00 |
from US $1.65 |
||
