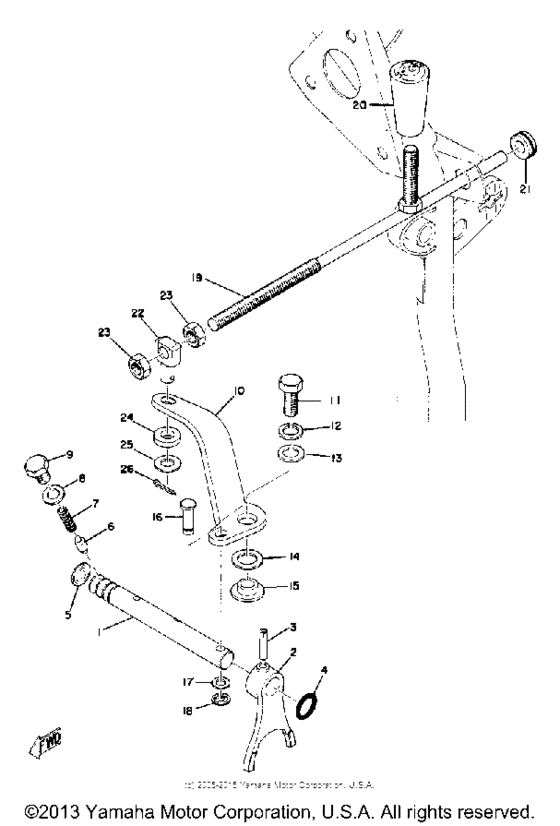

Shift shaft Diagram Yamaha EW643
- Model code
- EW643
- Engine Capacity
- 643
- Year
- 1973
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
826-18531-00-00
Bar, Shif Frk Gde 1
|
826-18531-00-00 |
— | ||
|
2
|
2
826-18511-01-00
Fork, Shift 1
|
826-18511-01-00 |
— | ||
|
3
|
3
91609-40020-00 Pin,spring |
91609-40020-00 |
US $3.12 |
||
| replacement | |||||
|
3
|
3
91690-40020-00 Pin, Spring |
91690-40020-00 |
from US $3.12 |
||
|
4
|
4
93210-12014-00 O-Ring |
93210-12014-00 |
from US $4.96 |
||
|
5
|
5
903-30160-02-00
Plug, Expansion
|
903-30160-02-00 |
— | ||
|
6
|
6
902-49070-04-00
Pin, Spec''l Shape
|
902-49070-04-00 |
— | ||
|
7
|
7
90501-10060-00 Spring, Compression |
90501-10060-00 |
from US $1.84 |
||
|
8
|
8
90430-08023-00
Gasket
|
90430-08023-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
97301-08010-00 Bolt |
97301-08010-00 |
from US $1.28 |
||
| replacements | |||||
|
9
|
9
90101-08344-00 Bolt |
90101-08344-00 |
from US $1.28 |
||
|
9
|
9
97014-08040-00 Bolt, Hexagon |
97014-08040-00 |
from US $2.13 |
||
|
10
|
10
852-18198-00-00
Lever
|
852-18198-00-00 |
— | ||
|
11
|
11
97313-08018-00 Bolt, Hex |
97313-08018-00 |
from US $6.37 |
||
| replacement | |||||
|
11
|
11
901-01086-91-00 Bolt(Ja9) |
901-01086-91-00 |
from US $7.37 |
||
|
12
|
12
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
13
|
13
90206-12074-00 Washer, Wave |
90206-12074-00 |
from US $1.70 |
||
|
14
|
14
90560-08065-00
Spacer
|
90560-08065-00 |
— | ||
|
15
|
15
905-60080-67-00
Spacer
|
905-60080-67-00 |
— | ||
|
16
|
16
902-49060-19-00
Pin, Spec''l Shape
|
902-49060-19-00 |
— | ||
|
17
|
17
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
18
|
18
99080-05600-00 Circlip |
99080-05600-00 |
from US $1.56 |
||
|
19
|
19
843-18115-00-00
Rod, Shift
|
843-18115-00-00 |
— | ||
|
20
|
20
843-18199-00-00
Knob, Change
|
843-18199-00-00 |
— | ||
|
21
|
21
90480-12237-00 Grommet |
90480-12237-00 |
from US $1.35 |
||
|
22
|
22
902-49070-11-00
Pin, Spec''l Shape
|
902-49070-11-00 |
— | ||
|
23
|
23
953-03087-00-00
Nut
|
953-03087-00-00 |
— | ||
| replacement | |||||
|
23
|
23
95380-08700-00 Nut |
95380-08700-00 |
from US $1.42 |
||
|
24
|
24
902-02080-18-00
Washer, Plate
|
902-02080-18-00 |
— | ||
|
25
|
25
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
26
|
26
914-01250-20-00
Pin. Cotter
|
914-01250-20-00 |
— | ||
| replacement | |||||
|
26
|
26
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.34 |
||
