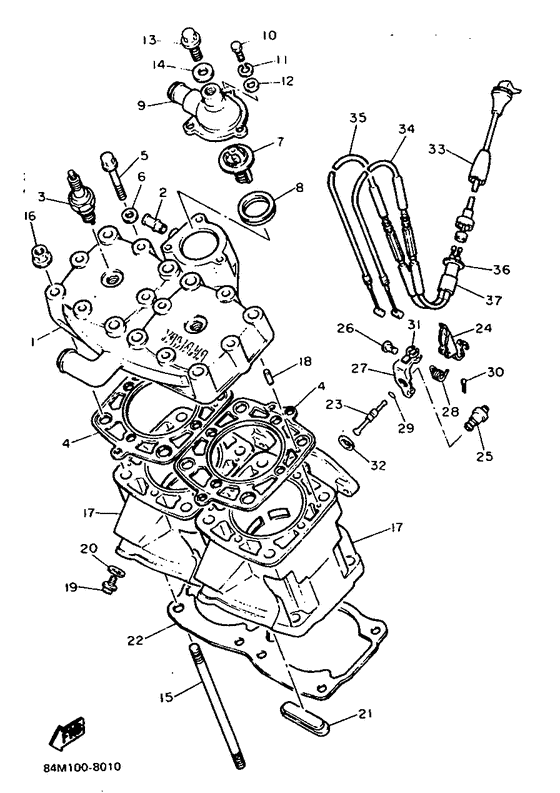

Cylinder head Diagram Yamaha EX570 Exciter II
- Model code
- 84M
- Engine Capacity
- 569
- Year
- 1988
- Sales region
- Europe (General) (999)
- Model
- Exciter II
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
82M-11111-00-00
Head, Cylinder 1
|
82M-11111-00-00 |
— | ||
|
02
|
02
8A7-12499-00-00 Joint |
8A7-12499-00-00 |
from US $11.83 |
||
|
03
|
03
947-02001-88-00 Br9Es Ngk Solid Top |
947-02001-88-00 |
from US $5.32 |
||
| replacements | |||||
|
03
|
03
947-09001-88-00 Plug, Spark (Ngk Br9Es) |
947-09001-88-00 |
US $7.08 |
||
|
03
|
03
BR9-ES01P-C0-00 YA BR9ES NGK SPLUG SOLID |
BR9-ES01P-C0-00 |
US $25.64 |
||
|
04
|
04
82M-11181-01-00 Gasket Cylinder Head |
82M-11181-01-00 |
from US $39.24 |
||
|
05
|
05
95812-08060-00 Bolt, Flange |
95812-08060-00 |
from US $1.07 |
||
| replacement | |||||
|
05
|
05
958-17080-60-00 Bolt, Flange |
958-17080-60-00 |
from US $1.07 |
||
|
06
|
06
90201-08770-00 Washer, Plate |
90201-08770-00 |
from US $2.69 |
||
| replacement | |||||
|
06
|
06
90201-080L7-00 Washer, Plate |
90201-080L7-00 |
from US $2.69 |
||
|
07
|
07
82M-12411-00-00 Thermostat |
82M-12411-00-00 |
from US $55.95 |
||
|
08
|
08
8A7-12412-01-00 Seal, Thermostat |
8A7-12412-01-00 |
from US $3.97 |
||
|
09
|
09
82M-12413-00-00 Cover, Thermostat |
82M-12413-00-00 |
from US $25.70 |
||
|
10
|
10
97001-06025-00 Bolt(53L) |
97001-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
10
|
10
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
11
|
11
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
11
|
11
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
12
|
12
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
13
|
13
95801-06012-00 Bolt, Flange (1E2) |
95801-06012-00 |
from US $1.07 |
||
| replacements | |||||
|
13
|
13
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
13
|
13
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.07 |
||
|
14
|
14
90430-06166-00 Gasket |
90430-06166-00 |
from US $1.28 |
||
|
15
|
15
8M6-11361-00-00
Bolt, Cylinder Holding 1
|
8M6-11361-00-00 |
— | ||
|
16
|
16
957-02105-00-00 Nut, Flange |
957-02105-00-00 |
from US $0.90 |
||
| replacements | |||||
|
16
|
16
95704-10500-00 Nut, With Washer |
95704-10500-00 |
from US $1.07 |
||
|
16
|
16
90179-10394-00 Nut, Flange |
90179-10394-00 |
from US $1.56 |
||
|
17
|
17
82M-11311-00-00
Cylinder 1
|
82M-11311-00-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
93604-12037-00 Pin, Dowel |
93604-12037-00 |
from US $1.28 |
||
|
19
|
19
95026-10016-00 Bolt, Flange |
95026-10016-00 |
US $1.56 |
||
| replacements | |||||
|
19
|
19
95027-10016-00 Bolt, Flange |
95027-10016-00 |
from US $1.56 |
||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
90201-11723-00 Washer, Plate |
90201-11723-00 |
from US $1.56 |
||
| replacement | |||||
|
20
|
20
90201-10128-00 Washer Plate 341839090000 |
90201-10128-00 |
from US $1.56 |
||
|
21
|
21
47X-11355-00-00 Seal, Cylinder 1 |
47X-11355-00-00 |
from US $2 |
||
|
22
|
22
80M-11351-00-00
Gasket, Cylinder
|
80M-11351-00-00 |
— | ||
|
23
|
23
84M-12281-00-00
Valve, Decompression
|
84M-12281-00-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
24
|
24
84M-12282-00-00
Lever, Decompression
|
84M-12282-00-00 |
— | ||
| replacement | |||||
|
24
|
24
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
25
|
25
84M-12283-00-00
Bracket, Decompression
|
84M-12283-00-00 |
— | ||
| replacement | |||||
|
25
|
25
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
26
|
26
90240-03002-00 Pin, Clevis |
90240-03002-00 |
US $8.35 |
||
|
27
|
27
84M-12273-00-00
Holder, Cable
|
84M-12273-00-00 |
— | ||
| replacement | |||||
|
27
|
27
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
28
|
28
90508-10740-00
Spring, Torsion
|
90508-10740-00 |
— | ||
|
29
|
29
93210-04092-00 O-Ring |
93210-04092-00 |
from US $1.70 |
||
|
30
|
30
914-01160-12-00
Pin, Cotter
|
914-01160-12-00 |
— | ||
| replacement | |||||
|
30
|
30
914-90160-20-00 Pin, Cotter |
914-90160-20-00 |
from US $2.55 |
||
|
31
|
31
990-02036-00-00 Clip |
990-02036-00-00 |
US $1.56 |
||
| replacement | |||||
|
31
|
31
99080-03600-00 Circlip |
99080-03600-00 |
from US $1.56 |
||
|
32
|
32
812-11198-00-00 Gasket |
812-11198-00-00 |
from US $1.84 |
||
|
33
|
33
82M-12292-01-00 Cable, Dcomp |
82M-12292-01-00 |
US $88.24 |
||
|
34
|
34
82M-2632A-00-00 Wire, Decomp 1 |
82M-2632A-00-00 |
US $26.89 |
||
|
35
|
35
82M-2632E-00-00
Wire, Decomp 2
|
82M-2632E-00-00 |
— | ||
| replacement | |||||
|
35
|
35
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
36
|
36
4U1-26261-00-00 Connector, Cable |
4U1-26261-00-00 |
from US $20.97 |
||
|
37
|
37
5L6-26272-00-00 Cap |
5L6-26272-00-00 |
from US $2 |
||
