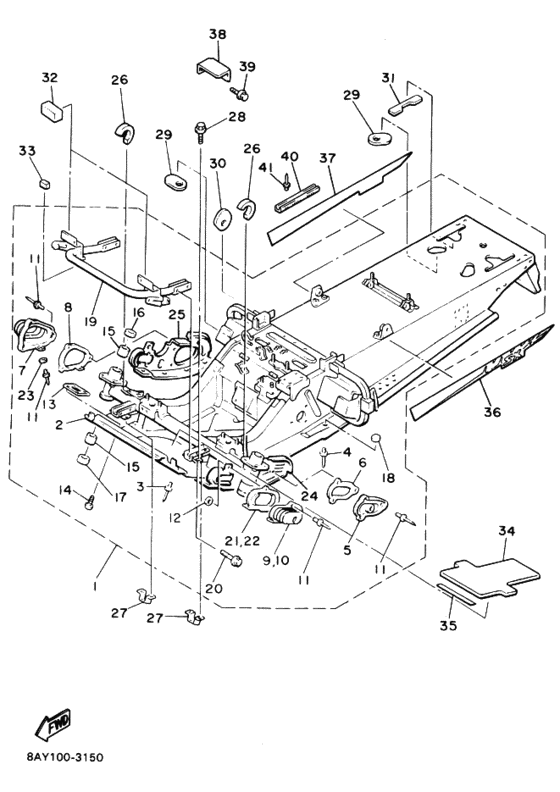

Frame Diagram Yamaha EX570 Exciter II
- Model code
- 8AY1
- Engine Capacity
- 569
- Year
- 1993
- Sales region
- Japan (010)
- Colour
- Yamaha Black (YB; 0033)
- Color Variant
- A
- Model
- Exciter II
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8AY-21910-00-00
Frame
．ＦＲＡＭＥ ＣＯＭＰ; |
8AY-21910-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
．ＦＲＡＭＥ ＣＯＭＰ; |
999-99999-99-00 |
— | ||
|
2
|
2
86M-21912-00-00 Panel, Sub Frame 1・ＰＡＮＥＬ， ｓｕｂ ｆｒａｍｅ １; |
86M-21912-00-00 |
US $359.03 |
||
|
3
|
3
90267-48141-00 Rivet, Blind (4.8X18.6 Black)・ＲＩＶＥＴ， ｂｌｉｎｄ; |
90267-48141-00 |
from US $1.28 |
||
| replacement | |||||
|
3
|
3
90267-48018-00 Rivet, Blind (4.8X18.6 Black)・ＲＩＶＥＴ， ｂｌｉｎｄ; |
90267-48018-00 |
from US $1.52 |
||
|
4
|
4
90267-48060-00 Rivet, Blind (4.8X12.9 Black)・ＲＩＶＥＴ， ｂｌｉｎｄ; |
90267-48060-00 |
from US $2.69 |
||
|
5
|
5
8M6-2198F-00-00 Cover 1・ＣＯＶＥＲ １; |
8M6-2198F-00-00 |
from US $10.13 |
||
|
6
|
6
8M6-21998-00-00 Spacer・ＳＰＡＣＥＲ; |
8M6-21998-00-00 |
from US $2.69 |
||
|
7
|
7
8AY-23818-00-00 Cover, Steering・ＣＯＶＥＲ， ｓｔｅｅｒｉｎｇ; |
8AY-23818-00-00 |
US $156.96 |
||
|
8
|
8
8AY-77526-00-00
Washer 2
・ＷＡＳＨＥＲ ２; |
8AY-77526-00-00 |
— | ||
|
9
|
9
8AY-2198F-00-00 Cover 1 (L.h)・ＣＯＶＥＲ １ ; Ｌ， Ｈ |
8AY-2198F-00-00 |
US $93.04 |
||
|
10
|
10
8AY-2198G-00-00
Cover 2 (R.h)
・ＣＯＶＥＲ ２ ; Ｒ， Ｈ |
8AY-2198G-00-00 |
— | ||
|
11
|
11
90267-40076-00 Rivet, Blind・ＲＩＶＥＴ， ｂｌｉｎｄ; |
90267-40076-00 |
from US $1.84 |
||
|
12
|
12
90201-047A7-00 Washer, Plate・ＷＡＳＨＥＲ， ｐｌａｔｅ; |
90201-047A7-00 |
from US $1.35 |
||
| replacement | |||||
|
12
|
12
90201-04027-00 Washer, Plate・ＷＡＳＨＥＲ， ｐｌａｔｅ; |
90201-04027-00 |
from US $1.35 |
||
|
13
|
13
8M6-21917-00-00
Panel, Sub Frame 6
・ＰＡＮＥＬ， ｓｕｂ ｆｒａｍｅ ６; |
8M6-21917-00-00 |
— | ||
|
14
|
14
90159-05137-00 Screw, With Washer・ＳＣＲＥＷ， ｗｉｔｈ ｗａｓｈｅｒ; |
90159-05137-00 |
US $2.20 |
||
| replacement | |||||
|
14
|
14
98507-05016-00 Screw, Pan Head・ＳＣＲＥＷ， ｗｉｔｈ ｗａｓｈｅｒ; |
98507-05016-00 |
from US $1.18 |
||
|
15
|
15
90384-36134-00 Bush, Bimetal Formed・ＢＵＳＨ， ｂｉｍｅｔａｌ ｆｏｒｍｅｄ; |
90384-36134-00 |
from US $6.80 |
||
|
16
|
16
93102-36232-00 Oil Seal・ＯＩＬ ＳＥＡＬ; |
93102-36232-00 |
from US $4.16 |
||
|
17
|
17
93103-36117-00 Oil Seal・ＯＩＬ ＳＥＡＬ; |
93103-36117-00 |
from US $15.68 |
||
|
18
|
18
80F-21998-00-00 Spacer・ＳＰＡＣＥＲ; |
80F-21998-00-00 |
from US $8.36 |
||
|
19
|
19
84M-77512-01-00
Bumper, Front 2
・ＢＵＭＰＥＲ， ｆｒｏｎｔ ２; |
84M-77512-01-00 |
— | ||
|
20
|
20
95811-08035-00 Bolt, Flange (95821-08035-00)・ＢＯＬＴ， ｆｌａｎｇｅ; |
95811-08035-00 |
from US $1.07 |
||
| replacement | |||||
|
20
|
20
95817-08035-00 Bolt, Flange・ＢＯＬＴ， ｆｌａｎｇｅ; |
95817-08035-00 |
from US $1.18 |
||
|
21
|
21
82M-2195E-00-00 Plate, String Bracket 1 (L, H・ＰＬＡＴＥ， ｓｔｒｇ ｂｒａｃｋｅｔ １ ; Ｌ， Ｈ |
82M-2195E-00-00 |
US $31.63 |
||
|
22
|
22
82M-2195F-00-00
Plate, String Bracket 2 (R, H
・ＰＬＡＴＥ， ｓｔｒｇ ｂｒａｃｋｅｔ ２ ; Ｒ， Ｈ |
82M-2195F-00-00 |
— | ||
|
23
|
23
92990-04200-00 Washer・ＷＡＳＨＥＲ ＰＬＡＮ; |
92990-04200-00 |
from US $1.21 |
||
|
24
|
24
86N-21916-00-00
Panel, Sub-Frame 5 (L.h)
・ＰＡＮＥＬ， ｓｕｂ ｆｒａｍｅ ５; |
86N-21916-00-00 |
— | ||
|
25
|
25
8AY-21917-00-00
Panel, Sub Frame 6
・ＰＡＮＥＬ， ｓｕｂ ｆｒａｍｅ ６; |
8AY-21917-00-00 |
— | ||
|
26
|
26
82M-77277-00-00 Damper, Noise 17ＤＡＭＰＥＲ， ｎｏｉｓｅ １７; |
82M-77277-00-00 |
from US $0.58 |
||
|
27
|
27
82M-21938-00-00
Reinf., Sub Frame 2
ＲＥＩＮＦＯＲＣＥＭＥＮＴ， ｓｕｂ ｆｒａｍｅ ２; |
82M-21938-00-00 |
— | ||
|
28
|
28
95811-06010-00 Bolt, FlangeＢＯＬＴ， ｆｌａｎｇｅ; |
95811-06010-00 |
from US $1.07 |
||
| replacements | |||||
|
28
|
28
95817-06010-00 Bolt, FlangeＢＯＬＴ， ｆｌａｎｇｅ; |
95817-06010-00 |
from US $1.18 |
||
|
28
|
28
95812-06010-00 Bolt, FlangeＢＯＬＴ， ｆｌａｎｇｅ; |
95812-06010-00 |
from US $1.07 |
||
|
29
|
29
82M-21965-00-00
Patch 5
ＰＡＴＣＨ ５; |
82M-21965-00-00 |
— | ||
|
30
|
30
88R-21965-00-00
Patch 5
ＰＡＴＣＨ ５; |
88R-21965-00-00 |
— | ||
|
31
|
31
82M-21966-00-00
Patch 6
ＰＡＴＣＨ ６; |
82M-21966-00-00 |
— | ||
|
32
|
32
84M-77555-00-00 Protector 5ＰＲＯＴＥＣＴＯＲ ５; |
84M-77555-00-00 |
from US $1.81 |
||
|
33
|
33
85L-7717J-00-00 Tape,5ＴＡＰＥ， ５; |
85L-7717J-00-00 |
US $2.05 |
||
|
34
|
34
86M-2199H-00-00
Shield, Heat
ＳＨＩＥＬＤ， ｈｅａｔ; |
86M-2199H-00-00 |
— | ||
|
35
|
35
8V0-7717G-00-00 Tape 3ＴＡＰＥ ３; |
8V0-7717G-00-00 |
US $3.73 |
||
| replacement | |||||
|
35
|
35
8V0-7717G-01-00
Tape 3
ＴＡＰＥ ３; |
8V0-7717G-01-00 |
— | ||
|
36
|
36
8AY-77351-00-00
Emblem 1
ＥＭＢＬＥＭ １; |
8AY-77351-00-00 |
— | ||
|
37
|
37
8AY-77352-00-00
Emblem 2
ＥＭＢＬＥＭ ２; |
8AY-77352-00-00 |
— | ||
| replacement | |||||
|
37
|
37
999-99999-99-00
Not Available
ＥＭＢＬＥＭ ２; |
999-99999-99-00 |
— | ||
|
38
|
38
86M-2198F-00-00
Cover 1
ＣＯＶＥＲ １; |
86M-2198F-00-00 |
— | ||
|
39
|
39
958-11060-12-00
Bolt, Flange (4H7)
ＢＯＬＴ， ｆｌａｎｇｅ; |
958-11060-12-00 |
— | ||
| replacements | |||||
|
39
|
39
958-17060-12-00 Bolt, FlangeＢＯＬＴ， ｆｌａｎｇｅ; |
958-17060-12-00 |
from US $1.39 |
||
|
39
|
39
95812-06012-00 Bolt, FlangeＢＯＬＴ， ｆｌａｎｇｅ; |
95812-06012-00 |
from US $1.39 |
||
|
40
|
40
8AY-2197E-00-00
Protector, Frame Fr
ＰＲＯＴＥＣＴＯＲ， ｆｒａｍｅ; ＡＰ |
8AY-2197E-00-00 |
— | ||
|
41
|
41
90267-48081-00 Rivet, BlindＲＩＶＥＴ， ｂｌｉｎｄ; ＡＰ |
90267-48081-00 |
US $1.60 |
||
