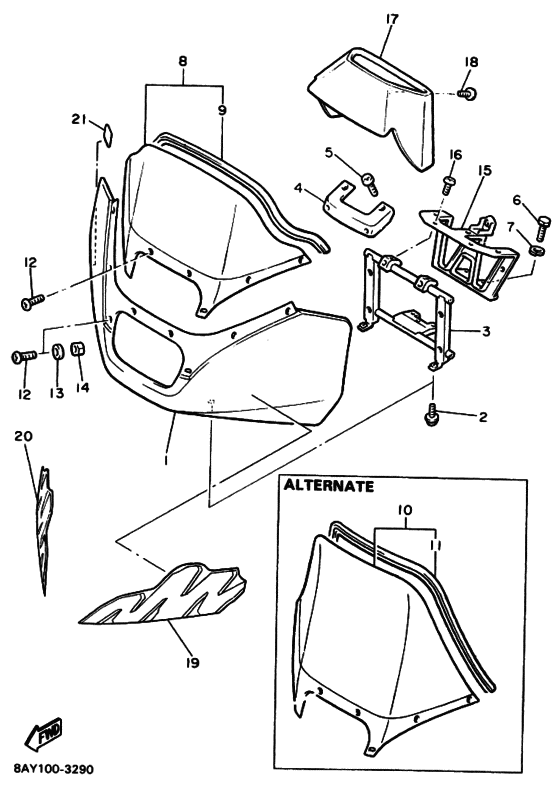

Windshield Diagram Yamaha EX570 Exciter II
- Model code
- 8AY1
- Engine Capacity
- 569
- Year
- 1993
- Sales region
- Japan (010)
- Colour
- Yamaha Black (YB; 0033)
- Color Variant
- A
- Model
- Exciter II
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
89L-77231-00-00
Fairing
ＦＡＩＲＩＮＧ; |
89L-77231-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
ＦＡＩＲＩＮＧ; |
999-99999-99-00 |
— | ||
|
2
|
2
90159-06093-00 Screw, With WasherＳＣＲＥＷ， ｗｉｔｈ ｗａｓｈｅｒ; |
90159-06093-00 |
from US $2.53 |
||
|
3
|
3
88R-77241-00-00
Sray, Fairing
ＳＲＡＹ， ｆａｉｒｉｎｇ; |
88R-77241-00-00 |
— | ||
|
4
|
4
88R-77221-00-00
Bracket, Windshield (L.h)
．ＢＲＡＣＫＥＴ， ｗｉｎｄｓｈｉｅｌｄ ; Ｌ Ｈ |
88R-77221-00-00 |
— | ||
|
5
|
5
98906-06008-00 Screw, Binding (8G6)ＳＣＲＥＷ， ｂｉｎｄ; |
98906-06008-00 |
from US $1.21 |
||
| replacement | |||||
|
5
|
5
98907-06008-00 Screw, BindＳＣＲＥＷ， ｂｉｎｄ; |
98907-06008-00 |
from US $1.39 |
||
|
6
|
6
97026-06030-00 BoltＢＯＬＴ; |
97026-06030-00 |
from US $1.07 |
||
| replacement | |||||
|
6
|
6
97017-06030-00 BoltＢＯＬＴ; |
97017-06030-00 |
from US $1.07 |
||
|
7
|
7
929-06061-00-00
Washer, Spring
ＷＡＳＨＥＲ， ｓｐｒｉｎｇ; |
929-06061-00-00 |
— | ||
| replacement | |||||
|
7
|
7
92907-06100-00 Washer, SpringＷＡＳＨＥＲ， ｓｐｒｉｎｇ; |
92907-06100-00 |
from US $0.88 |
||
|
8
|
8
8AY-77210-00-00
Windshield
．ＷＩＮＤＳＨＩＥＬＤ ＣＯＭＰ; ＵＲ ＦＯＲ ＵＳＡ／ＣＡＮＡＤＡ |
8AY-77210-00-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
．ＷＩＮＤＳＨＩＥＬＤ ＣＯＭＰ; ＵＲ ＦＯＲ ＵＳＡ／ＣＡＮＡＤＡ |
999-99999-99-00 |
— | ||
|
9
|
9
87F-77213-00-00 Trim, Upper・ＴＲＩＭ ＵＰＰＥＲ; ＵＲ ＦＯＲ ＵＳＡ／ＣＡＮＡＤＡ |
87F-77213-00-00 |
US $33.84 |
||
| replacement | |||||
|
9
|
9
87K-77213-00-00
Trim, Upper
・ＴＲＩＭ ＵＰＰＥＲ; ＵＲ ＦＯＲ ＵＳＡ／ＣＡＮＡＤＡ |
87K-77213-00-00 |
— | ||
|
10
|
10
88R-77210-00-00
Windshield Comp
．ＷＩＮＤＳＨＩＥＬＤ ＣＯＭＰ; ＡＰ ＦＯＲ ＪＡＰＡＮ |
88R-77210-00-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
．ＷＩＮＤＳＨＩＥＬＤ ＣＯＭＰ; ＡＰ ＦＯＲ ＪＡＰＡＮ |
999-99999-99-00 |
— | ||
|
11
|
11
87S-77213-00-00 Trim, Upper・ＴＲＩＭ ＵＰＰＥＲ; ＡＰ ＦＯＲ ＪＡＰＡＮ |
87S-77213-00-00 |
from US $25.70 |
||
| replacement | |||||
|
11
|
11
87K-77213-00-00
Trim, Upper
・ＴＲＩＭ ＵＰＰＥＲ; ＡＰ ＦＯＲ ＪＡＰＡＮ |
87K-77213-00-00 |
— | ||
|
12
|
12
90150-05028-00 Screw, Round HeadＳＣＲＥＷ， ｒｏｕｎｄ ｈｅａｄ; |
90150-05028-00 |
from US $1.70 |
||
|
13
|
13
90201-05721-00 Washer, PlateＷＡＳＨＥＲ， ｐｌａｔｅ; |
90201-05721-00 |
from US $1.98 |
||
| replacement | |||||
|
13
|
13
90201-05029-00 Washer, PlateＷＡＳＨＥＲ， ｐｌａｔｅ; |
90201-05029-00 |
from US $1.98 |
||
|
14
|
14
95306-05600-00 NutＮＵＴ; |
95306-05600-00 |
from US $1.26 |
||
| replacement | |||||
|
14
|
14
95317-05600-00 NutＮＵＴ; |
95317-05600-00 |
from US $2.13 |
||
|
15
|
15
82M-83519-01-00
Bracket, Meter
ＢＲＡＣＫＥＴ， ｍｅｔｅｒ; |
82M-83519-01-00 |
— | ||
|
16
|
16
98906-06008-00 Screw, Binding (8G6)ＳＣＲＥＷ， ｂｉｎｄ; |
98906-06008-00 |
from US $1.21 |
||
| replacement | |||||
|
16
|
16
98907-06008-00 Screw, BindＳＣＲＥＷ， ｂｉｎｄ; |
98907-06008-00 |
from US $1.39 |
||
|
17
|
17
88R-77251-00-00
Cover, Headlight
ＣＯＶＥＲ， ｈｅａｄｌｉｇｈｔ; |
88R-77251-00-00 |
— | ||
|
18
|
18
98906-05016-00 Screw, BindＳＣＲＥＷ， ｂｉｎｄ; |
98906-05016-00 |
from US $1.56 |
||
| replacement | |||||
|
18
|
18
98907-05016-00 Screw, BindＳＣＲＥＷ， ｂｉｎｄ; |
98907-05016-00 |
from US $1.56 |
||
|
19
|
19
8AY-77356-00-00
Emblem 6
ＥＭＢＬＥＭ ６; |
8AY-77356-00-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
ＥＭＢＬＥＭ ６; |
999-99999-99-00 |
— | ||
|
20
|
20
8AY-77357-00-00
Emblem 7
ＥＭＢＬＥＭ ７; |
8AY-77357-00-00 |
— | ||
|
21
|
21
86M-24153-00-00
Indicator, Cock
ＩＮＤＩＣＡＴＯＲ， ｃｏｃｋ; |
86M-24153-00-00 |
— | ||
