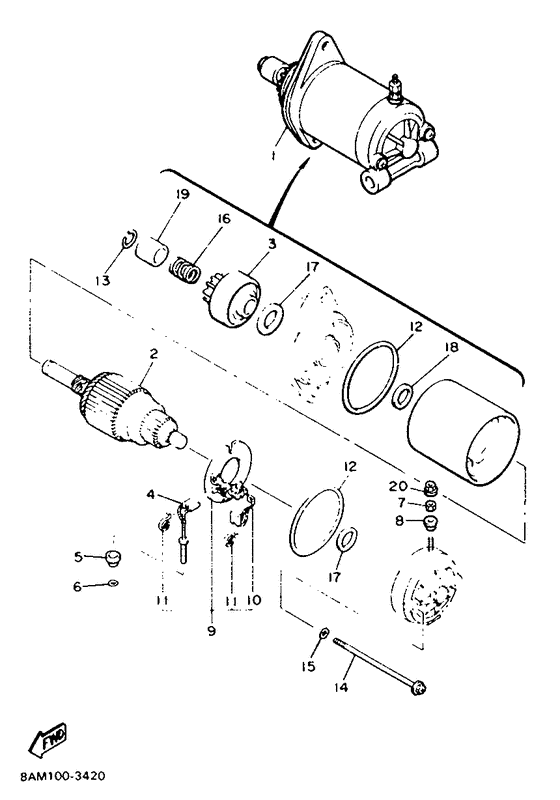

Alternate Diagram Yamaha EX570 Exciter II
- Model code
- 8BA1
- Engine Capacity
- 569
- Year
- 1993
- Sales region
- Europe (General) (999)
- Model
- Exciter II
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
84N-81800-50-00 Starting Motor Assy |
84N-81800-50-00 |
from US $538.78 |
||
| replacements | |||||
|
01
|
01
8BB-81800-01-00 Starting Motor Assy |
8BB-81800-01-00 |
from US $538.78 |
||
|
01
|
01
8BB-81800-02-00 Starting Motor Assy |
8BB-81800-02-00 |
from US $538.78 |
||
|
02
|
02
8Y8-81850-50-00
Armature assy
|
8Y8-81850-50-00 |
— | ||
|
03
|
03
84N-81832-50-00 Clutch, Over Run |
84N-81832-50-00 |
from US $192.04 |
||
| replacement | |||||
|
03
|
03
84N-81832-51-00 Clutch, Over Run |
84N-81832-51-00 |
from US $192.04 |
||
|
04
|
04
73A-81811-00-00 Brush 1 |
73A-81811-00-00 |
from US $24.65 |
||
| replacement | |||||
|
04
|
04
73A-81811-01-00 BRUSH 1 |
73A-81811-01-00 |
from US $24.65 |
||
|
05
|
05
73A-81829-50-00 Grommet |
73A-81829-50-00 |
from US $3.68 |
||
|
06
|
06
73A-81847-00-00 O-Ring |
73A-81847-00-00 |
from US $4.39 |
||
|
07
|
07
4H7-81872-00-00 Nut, Special |
4H7-81872-00-00 |
from US $5.81 |
||
|
08
|
08
73A-81829-00-00 Grommet |
73A-81829-00-00 |
from US $2.98 |
||
|
09
|
09
84N-81840-50-00 Brush Holder Assy |
84N-81840-50-00 |
from US $93.98 |
||
| replacements | |||||
|
09
|
09
8L6-81840-50-00 Brush Holder Assy |
8L6-81840-50-00 |
from US $98.09 |
||
|
09
|
09
8L6-81840-51-00 BRUSH HOLDER ASSY |
8L6-81840-51-00 |
from US $92.77 |
||
|
10
|
10
84N-81812-00-00 Brush 2 |
84N-81812-00-00 |
from US $11.05 |
||
|
11
|
11
8L6-81813-50-00 Spring, Brush |
8L6-81813-50-00 |
from US $5.10 |
||
|
12
|
12
4H7-81844-00-00 O-Ring |
4H7-81844-00-00 |
from US $18.99 |
||
|
13
|
13
8L6-81834-50-00 Ring |
8L6-81834-50-00 |
from US $3.40 |
||
|
14
|
14
84N-81826-00-00 Bolt |
84N-81826-00-00 |
from US $11.33 |
||
|
15
|
15
8L6-81847-50-00 O-Ring |
8L6-81847-50-00 |
from US $3.97 |
||
|
16
|
16
8L6-81836-50-00 Spring, Lever |
8L6-81836-50-00 |
from US $5.42 |
||
|
17
|
17
4H7-81843-50-00 Washer 1 |
4H7-81843-50-00 |
from US $2.83 |
||
|
18
|
18
8L6-81835-50-00 Washer 2 |
8L6-81835-50-00 |
from US $3.68 |
||
|
19
|
19
8L6-81833-50-00 Ring, Stop |
8L6-81833-50-00 |
from US $26.64 |
||
|
20
|
20
953-03066-00-00
Nut, Hexagon
|
953-03066-00-00 |
— | ||
| replacement | |||||
|
20
|
20
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
