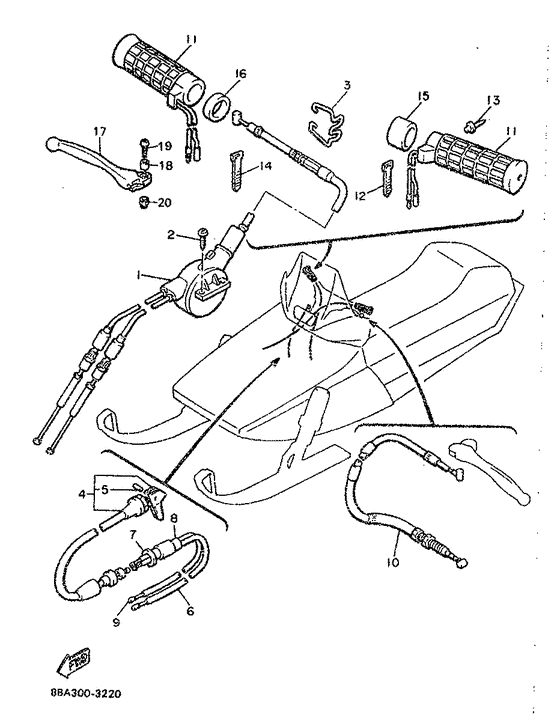

Control cable Diagram Yamaha EX570 Exciter II
- Model code
- 8BA1
- Engine Capacity
- 569
- Year
- 1993
- Sales region
- Europe (General) (999)
- Model
- Exciter II
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
89J-26311-00-00
Cable, Throttle 1
|
89J-26311-00-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
97702-50020-00 Screw, Tapping |
97702-50020-00 |
from US $1.56 |
||
| replacement | |||||
|
02
|
02
90167-05078-00 Screw, Tapping |
90167-05078-00 |
from US $1.56 |
||
|
03
|
03
8M6-26391-01-00
Clip, Cable
|
8M6-26391-01-00 |
— | ||
|
04
|
04
82M-26331-01-00 Cable, Starter 1 |
82M-26331-01-00 |
US $41.60 |
||
|
05
|
05
916-09300-10-00
Pin, Spring
|
916-09300-10-00 |
— | ||
| replacement | |||||
|
05
|
05
91690-30010-00 Pin, Spring |
91690-30010-00 |
from US $1.56 |
||
|
06
|
06
84M-26334-00-00 Cable, Starter 2 |
84M-26334-00-00 |
US $13.90 |
||
|
07
|
07
4U1-26261-00-00 Connector, Cable |
4U1-26261-00-00 |
from US $20.97 |
||
|
08
|
08
5L6-26272-00-00 Cap |
5L6-26272-00-00 |
from US $2.02 |
||
|
09
|
09
84M-2633A-00-00 Wire, Starter 3 |
84M-2633A-00-00 |
US $13.07 |
||
|
10
|
10
8BA-26340-00-00
Cable, brake
|
8BA-26340-00-00 |
— | ||
|
11
|
11
88T-26240-00-00 88T Grip Black 1 Pc |
88T-26240-00-00 |
US $95.05 |
||
| replacements | |||||
|
11
|
11
88T-26240-85-BK
FOOTREST, REAR 1
|
88T-26240-85-BK |
— | ||
|
11
|
11
999-99034-93-00 Grip Assy |
999-99034-93-00 |
from US $95.05 |
||
|
12
|
12
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
|
13
|
13
90267-40076-00 Rivet, Blind |
90267-40076-00 |
from US $1.84 |
||
|
14
|
14
25G-83936-01-00 Band, Switch Cord |
25G-83936-01-00 |
from US $1.56 |
||
|
15
|
15
90387-22726-00
Collar
|
90387-22726-00 |
— | ||
|
16
|
16
90387-224F9-00
Collar
|
90387-224F9-00 |
— | ||
|
17
|
17
8M5-83922-00-00
Lever 2
|
8M5-83922-00-00 |
— | ||
|
18
|
18
802-83913-00-00 Collar, Lever 1 |
802-83913-00-00 |
from US $1.70 |
||
|
19
|
19
901-57050-55-00 Screw, Pan Head(8W1) |
901-57050-55-00 |
US $1.73 |
||
|
20
|
20
95706-05300-00 Nut, Flange |
95706-05300-00 |
from US $1.42 |
||
| replacement | |||||
|
20
|
20
95707-05300-00 Nut, Flange |
95707-05300-00 |
from US $1.42 |
||
