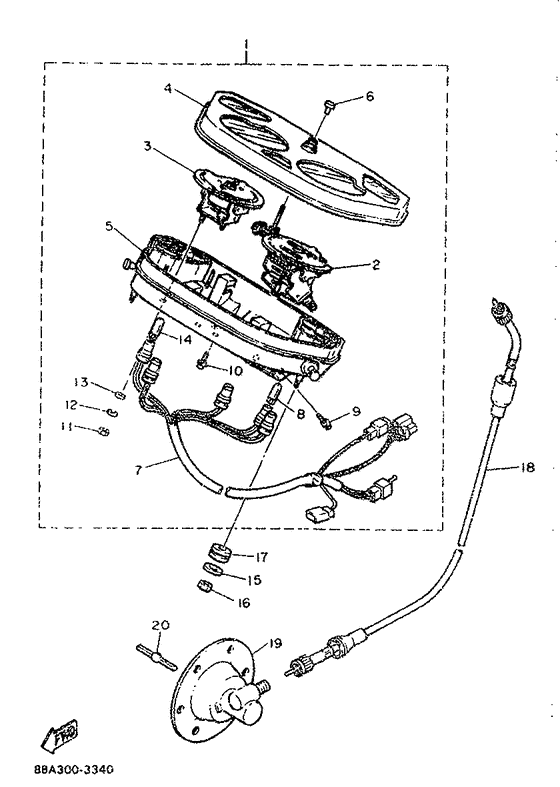

Meter Diagram Yamaha EX570 Exciter II
- Model code
- 8BA1
- Engine Capacity
- 569
- Year
- 1993
- Sales region
- Europe (General) (999)
- Model
- Exciter II
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
8BA-83500-20-00
Speedometer assy
|
8BA-83500-20-00 |
— | ||
|
02
|
02
2JK-83570-F0-00
Speedometer Assy
|
2JK-83570-F0-00 |
— | ||
|
03
|
03
88R-83540-20-00
Tachometer Assembly
|
88R-83540-20-00 |
— | ||
|
04
|
04
8BA-83559-20-00
Cover, meter
|
8BA-83559-20-00 |
— | ||
|
05
|
05
8BA-8353H-01-00
Case, under
|
8BA-8353H-01-00 |
— | ||
|
06
|
06
29L-83578-00-00 Knob, Trip Meter |
29L-83578-00-00 |
from US $12.18 |
||
|
07
|
07
8BA-83509-00-00 Socket cord assy |
8BA-83509-00-00 |
US $71.71 |
||
|
08
|
08
4G1-84744-00-00 Bulb (12V-3.4W T10) |
4G1-84744-00-00 |
US $4.04 |
||
| replacement | |||||
|
08
|
08
4G1-84744-00-XX
Bulb (12V-3.4W T10)
|
4G1-84744-00-XX |
— | ||
|
09
|
09
90167-04021-00 Screw, Tapping |
90167-04021-00 |
from US $2.16 |
||
|
10
|
10
90164-04009-00 Screw, Tapping |
90164-04009-00 |
from US $2.69 |
||
| replacement | |||||
|
10
|
10
90164-04023-00 Screw, Tapping(71E) |
90164-04023-00 |
from US $1.84 |
||
|
11
|
11
95301-04600-00 Nut |
95301-04600-00 |
from US $1.70 |
||
| replacement | |||||
|
11
|
11
95307-04600-00 Nut |
95307-04600-00 |
from US $1.70 |
||
|
12
|
12
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
12
|
12
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
13
|
13
92990-04200-00 Washer |
92990-04200-00 |
from US $1.21 |
||
|
14
|
14
4N0-83516-00-00 Bulb |
4N0-83516-00-00 |
from US $1.66 |
||
|
15
|
15
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
15
|
15
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
16
|
16
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
17
|
17
5J0-83513-00-00 Damper |
5J0-83513-00-00 |
from US $7.51 |
||
|
18
|
18
82M-83550-00-00 Speedometer Cable Assembly |
82M-83550-00-00 |
US $44.01 |
||
|
19
|
19
8L9-47700-00-00 Meter Gear Housing Comp |
8L9-47700-00-00 |
from US $88.31 |
||
|
20
|
20
8K4-47715-00-00 Joint |
8K4-47715-00-00 |
from US $5.10 |
||
