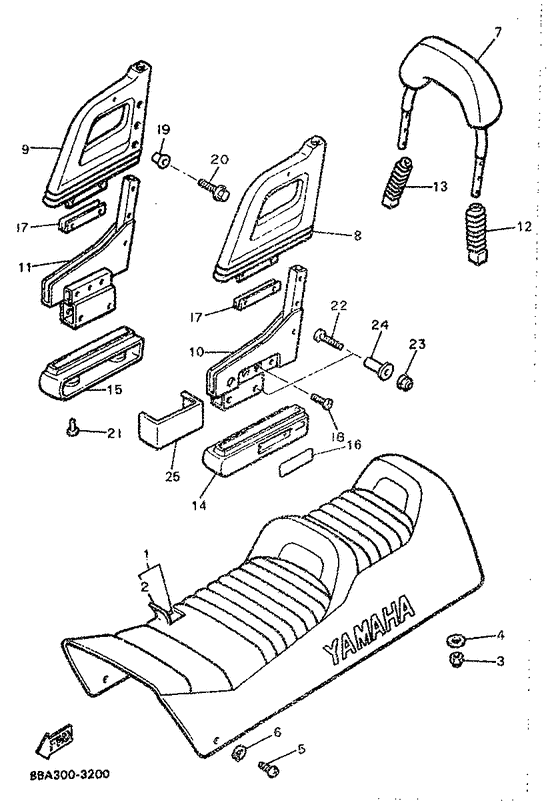

Seat Diagram Yamaha EX570 Exciter II
- Model code
- 8BA1
- Engine Capacity
- 569
- Year
- 1993
- Sales region
- Europe (General) (999)
- Model
- Exciter II
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
8BA-24730-00-00
Double seat assy
|
8BA-24730-00-00 |
— | ||
|
02
|
02
8BA-2470F-00-00
Seat cover comp
|
8BA-2470F-00-00 |
— | ||
|
03
|
03
95712-08300-00 Nut, Lock |
95712-08300-00 |
from US $3.21 |
||
| replacement | |||||
|
03
|
03
957-17083-00-00 Nut, Flange |
957-17083-00-00 |
from US $3.26 |
||
|
04
|
04
90201-08748-00 Washer, Plate |
90201-08748-00 |
from US $1.70 |
||
| replacement | |||||
|
04
|
04
90201-086A3-00 Washer, Plate |
90201-086A3-00 |
from US $1.70 |
||
|
05
|
05
98906-06016-00 Screw, Bind |
98906-06016-00 |
from US $1.56 |
||
| replacement | |||||
|
05
|
05
98907-06016-00 Screw, Bind |
98907-06016-00 |
from US $1.56 |
||
|
06
|
06
90201-063J2-00 Washer, Plate(36Y) |
90201-063J2-00 |
from US $3.12 |
||
|
07
|
07
8BA-24790-00-00
Seat Back Assembly
|
8BA-24790-00-00 |
— | ||
|
08
|
08
8Y7-2474A-01-00 Assist, Grip |
8Y7-2474A-01-00 |
from US $116.74 |
||
|
09
|
09
8Y7-2474W-01-00 Assist,grip 2 |
8Y7-2474W-01-00 |
from US $116.74 |
||
|
10
|
10
88T-2474H-00-00
Bracket, Assist Grip 1
|
88T-2474H-00-00 |
— | ||
|
11
|
11
88T-2474J-00-00
Bracket, Assist Grip 2
|
88T-2474J-00-00 |
— | ||
|
12
|
12
8Y7-2476U-00-00 Protector 1 |
8Y7-2476U-00-00 |
from US $27.02 |
||
|
13
|
13
8Y7-2476V-00-00 Protector,2 |
8Y7-2476V-00-00 |
from US $27.02 |
||
|
14
|
14
8Y7-24796-01-00 Cover |
8Y7-24796-01-00 |
from US $112.60 |
||
|
15
|
15
8Y7-2475X-01-00 Cover,2 |
8Y7-2475X-01-00 |
from US $84.33 |
||
|
16
|
16
83N-24786-00-00
Emblem
|
83N-24786-00-00 |
— | ||
|
17
|
17
8Y7-24746-00-00 Washer, Seat |
8Y7-24746-00-00 |
from US $13.95 |
||
|
18
|
18
98901-08016-00 Screw, Bind |
98901-08016-00 |
US $0.83 |
||
| replacement | |||||
|
18
|
18
98907-08016-00 Screw, Bind |
98907-08016-00 |
from US $0.83 |
||
|
19
|
19
90387-074X6-00 Collar |
90387-074X6-00 |
from US $3.40 |
||
|
20
|
20
95816-06025-00 Bolt, Flange (20X) |
95816-06025-00 |
US $1.07 |
||
| replacements | |||||
|
20
|
20
958-17060-25-00
Bolt, Flange
|
958-17060-25-00 |
— | ||
|
20
|
20
95822-06025-00 Bolt, Flange |
95822-06025-00 |
from US $0.99 |
||
|
21
|
21
902-69060-46-00
Rivet
|
902-69060-46-00 |
— | ||
| replacement | |||||
|
21
|
21
902-69060-01-00 Rivet |
902-69060-01-00 |
from US $1.36 |
||
|
22
|
22
98906-08040-00 Screw, Bind |
98906-08040-00 |
US $4.23 |
||
| replacement | |||||
|
22
|
22
989-07080-40-00 Screw, Binding |
989-07080-40-00 |
US $4.14 |
||
|
23
|
23
95606-08200-00 Nut, Self-Locking |
95606-08200-00 |
from US $2.13 |
||
| replacement | |||||
|
23
|
23
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.13 |
||
|
24
|
24
90387-094X7-00 Collar |
90387-094X7-00 |
US $8.19 |
||
|
25
|
25
88T-2472K-00-00
Cover, Tail 2
|
88T-2472K-00-00 |
— | ||
