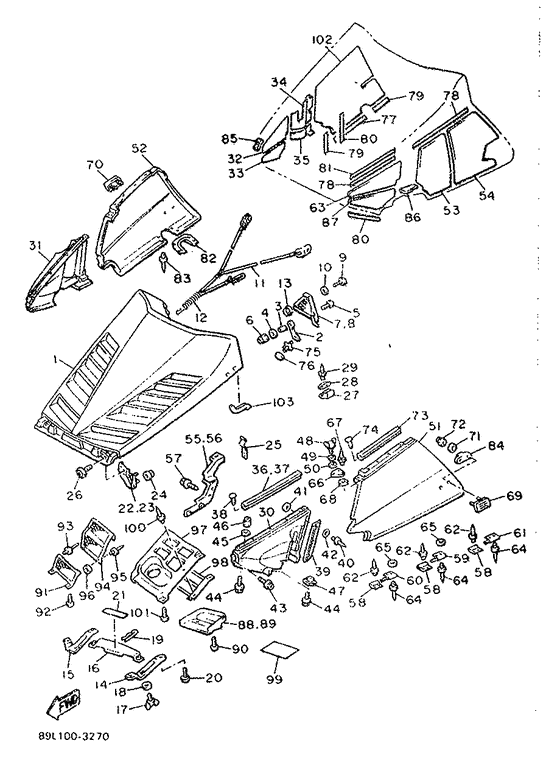

Shroud Diagram Yamaha EX570 Exciter II
- Model code
- 8BA1
- Engine Capacity
- 569
- Year
- 1993
- Sales region
- Europe (General) (999)
- Model
- Exciter II
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
89L-W7711-00-00
Shroud Assembly
|
89L-W7711-00-00 |
— | ||
|
02
|
02
8V0-77171-00-00 Body, Latch 1 |
8V0-77171-00-00 |
from US $6.38 |
||
|
03
|
03
90387-08241-00
Collar
|
90387-08241-00 |
— | ||
|
04
|
04
902-01060-59-00
Washer, Plate
|
902-01060-59-00 |
— | ||
| replacements | |||||
|
04
|
04
90201-06057-00 Washer, Plate |
90201-06057-00 |
from US $1.28 |
||
|
04
|
04
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
|
05
|
05
98906-06030-00 Screw, Bind |
98906-06030-00 |
from US $1.56 |
||
| replacement | |||||
|
05
|
05
98907-06030-00 Screw, Bind |
98907-06030-00 |
from US $1.56 |
||
|
06
|
06
957-01065-00-00
Nut, Flange(34M)
|
957-01065-00-00 |
— | ||
| replacement | |||||
|
06
|
06
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.13 |
||
|
07
|
07
88R-77555-00-00
Protector 5
|
88R-77555-00-00 |
— | ||
|
08
|
08
88R-77556-00-00
Protector 6
|
88R-77556-00-00 |
— | ||
|
09
|
09
98906-06016-00 Screw, Bind |
98906-06016-00 |
from US $1.56 |
||
| replacement | |||||
|
09
|
09
98907-06016-00 Screw, Bind |
98907-06016-00 |
from US $1.56 |
||
|
10
|
10
90202-06007-00 Washer, Plate |
90202-06007-00 |
from US $1.70 |
||
|
11
|
11
88R-77118-00-00
Stopper, Shroud
|
88R-77118-00-00 |
— | ||
|
12
|
12
80L-77159-00-00
Clamp, Rod
|
80L-77159-00-00 |
— | ||
|
13
|
13
957-01065-00-00
Nut, Flange(34M)
|
957-01065-00-00 |
— | ||
| replacement | |||||
|
13
|
13
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.13 |
||
|
14
|
14
88R-77125-00-00
Stay 1
|
88R-77125-00-00 |
— | ||
|
15
|
15
88R-77126-00-00
Stay 2
|
88R-77126-00-00 |
— | ||
|
16
|
16
88R-77131-00-00
Louver 1
|
88R-77131-00-00 |
— | ||
|
17
|
17
90122-05022-00 Bolt, Wing |
90122-05022-00 |
from US $2.83 |
||
|
18
|
18
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.34 |
||
|
19
|
19
90468-10005-00 Clip |
90468-10005-00 |
from US $3.40 |
||
|
20
|
20
97701-50014-00 Screw, Truss Head Tapping |
97701-50014-00 |
from US $1.42 |
||
| replacement | |||||
|
20
|
20
97707-50014-00 Screw, Truss Head Tapping |
97707-50014-00 |
from US $1.42 |
||
|
21
|
21
89S-77762-00-00
Label, Warning 2
|
89S-77762-00-00 |
— | ||
| replacement | |||||
|
21
|
21
89S-77762-01-00 Label, Warning 2 |
89S-77762-01-00 |
US $8.84 |
||
|
22
|
22
88R-77140-01-00 Hinge Assembly |
88R-77140-01-00 |
from US $19.24 |
||
|
23
|
23
88R-7714A-01-00
Hinge Assembly 2
|
88R-7714A-01-00 |
— | ||
|
24
|
24
957-01065-00-00
Nut, Flange(34M)
|
957-01065-00-00 |
— | ||
| replacement | |||||
|
24
|
24
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.13 |
||
|
25
|
25
89L-21945-00-00
Bracket, Tl Bx Ftng
|
89L-21945-00-00 |
— | ||
|
26
|
26
901-59060-71-00
Screw, With Washer
|
901-59060-71-00 |
— | ||
| replacements | |||||
|
26
|
26
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.42 |
||
|
26
|
26
901-59060-60-00
Screw, With Washer
|
901-59060-60-00 |
— | ||
|
27
|
27
8V0-77188-00-00 Stopper |
8V0-77188-00-00 |
US $8.48 |
||
|
28
|
28
8V0-77116-00-00 Washer, Special |
8V0-77116-00-00 |
from US $8.50 |
||
| replacement | |||||
|
28
|
28
8V0-77116-01-00 Washer, Special |
8V0-77116-01-00 |
from US $8.50 |
||
|
29
|
29
90267-40029-00 Rivet, Blind (4X18 Black) |
90267-40029-00 |
from US $3.26 |
||
|
30
|
30
89L-21982-00-00
Hood 1
|
89L-21982-00-00 |
— | ||
|
31
|
31
89L-21983-00-00
Hood 2
|
89L-21983-00-00 |
— | ||
|
32
|
32
82M-77262-00-00 Lining, Shroud 2 |
82M-77262-00-00 |
US $14.60 |
||
|
33
|
33
82M-77263-00-00
Lining, Shroud 3
|
82M-77263-00-00 |
— | ||
| replacement | |||||
|
33
|
33
82M-77263-01-00
IGNITION COIL ASY
|
82M-77263-01-00 |
— | ||
|
34
|
34
82M-77264-00-00
Lining, Shroud 4
|
82M-77264-00-00 |
— | ||
|
35
|
35
82M-77265-00-00 Lining, Shroud 5 |
82M-77265-00-00 |
US $10.91 |
||
| replacement | |||||
|
35
|
35
82M-77265-01-00
Shroud Lining 5
|
82M-77265-01-00 |
— | ||
|
36
|
36
82M-77515-00-00 Bush, Rubber 1 |
82M-77515-00-00 |
US $27.50 |
||
|
37
|
37
8V0-77515-01-00
Bush, Rubber 1
|
8V0-77515-01-00 |
— | ||
|
38
|
38
90269-05039-00 Rivet |
90269-05039-00 |
from US $1.70 |
||
| replacement | |||||
|
38
|
38
90269-05055-00 Rivet |
90269-05055-00 |
from US $1.34 |
||
|
39
|
39
82M-2196T-00-00
Trim 1
|
82M-2196T-00-00 |
— | ||
|
40
|
40
90267-40076-00 Rivet, Blind |
90267-40076-00 |
from US $1.84 |
||
|
41
|
41
90201-044A2-00 Washer, Plate |
90201-044A2-00 |
from US $1.82 |
||
| replacement | |||||
|
41
|
41
90201-044H9-00 Washer, Plate |
90201-044H9-00 |
from US $1.84 |
||
|
42
|
42
90201-047A2-00 Washer, Plate |
90201-047A2-00 |
from US $1.70 |
||
|
43
|
43
90159-05137-00 Screw, With Washer |
90159-05137-00 |
US $2.20 |
||
| replacement | |||||
|
43
|
43
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.07 |
||
|
44
|
44
90119-06088-00 Bolt, With Washer (33A) |
90119-06088-00 |
from US $1.35 |
||
| replacement | |||||
|
44
|
44
90119-06226-00 Bolt, With Washer |
90119-06226-00 |
from US $1.34 |
||
|
45
|
45
929-06062-00-00
Washer
|
929-06062-00-00 |
— | ||
| replacement | |||||
|
45
|
45
92907-06200-00 Washer(6Ta) |
92907-06200-00 |
from US $1.07 |
||
|
46
|
46
95701-06300-00 Nut, Nylon |
95701-06300-00 |
from US $1.56 |
||
| replacement | |||||
|
46
|
46
95707-06300-00 Nut, Nylon |
95707-06300-00 |
from US $1.56 |
||
|
47
|
47
83R-77144-00-00 Nut |
83R-77144-00-00 |
from US $5.67 |
||
|
48
|
48
90122-06020-00 Bolt, Wing |
90122-06020-00 |
from US $5.67 |
||
|
49
|
49
902-01065-F3-00
Washer, Plate
|
902-01065-F3-00 |
— | ||
| replacement | |||||
|
49
|
49
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
|
50
|
50
90202-06008-00 Washer, Plate |
90202-06008-00 |
from US $2.69 |
||
|
51
|
51
89L-2197H-00-00
Hood 3
|
89L-2197H-00-00 |
— | ||
|
52
|
52
89L-2198H-00-00
Hood 4
|
89L-2198H-00-00 |
— | ||
|
53
|
53
82M-77274-01-00
Damper, Noise 14
|
82M-77274-01-00 |
— | ||
|
54
|
54
82M-77275-00-00
Damper, Noise 15
|
82M-77275-00-00 |
— | ||
| replacement | |||||
|
54
|
54
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
55
|
55
89L-2196F-00-00
Bracket 3
|
89L-2196F-00-00 |
— | ||
|
56
|
56
82M-2196G-00-00
Bracket 4
|
82M-2196G-00-00 |
— | ||
|
57
|
57
95811-06010-00 Bolt, Flange |
95811-06010-00 |
from US $1.07 |
||
| replacements | |||||
|
57
|
57
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.07 |
||
|
57
|
57
95812-06010-00 Bolt, Flange |
95812-06010-00 |
from US $1.07 |
||
|
58
|
58
88F-2194X-00-00
Bracket, 1
|
88F-2194X-00-00 |
— | ||
|
59
|
59
88R-2195X-00-00
Bracket 2
|
88R-2195X-00-00 |
— | ||
|
60
|
60
88F-2195X-00-00
Bracket 2
|
88F-2195X-00-00 |
— | ||
| replacement | |||||
|
60
|
60
88R-2195X-00-00
Bracket 2
|
88R-2195X-00-00 |
— | ||
|
61
|
61
88F-2196F-00-00 Bracket 3 |
88F-2196F-00-00 |
from US $13.70 |
||
|
62
|
62
90267-48059-00 Rivet, Blind (4.8X12.3) |
90267-48059-00 |
from US $1.70 |
||
|
63
|
63
82M-77272-00-00
Damper, Noise 12
|
82M-77272-00-00 |
— | ||
|
64
|
64
90267-48057-00 Rivet, Blind |
90267-48057-00 |
from US $1.70 |
||
|
65
|
65
902-01043-25-00
Washer, Plate
|
902-01043-25-00 |
— | ||
| replacements | |||||
|
65
|
65
90201-04027-00 Washer, Plate |
90201-04027-00 |
from US $1.35 |
||
|
65
|
65
902-01044-R6-00
Washer, Plate (90201-04325-00 )
|
902-01044-R6-00 |
— | ||
|
66
|
66
82M-77127-00-00 Stay 3 |
82M-77127-00-00 |
US $8.30 |
||
|
67
|
67
90267-48053-00 Rivet, Blind |
90267-48053-00 |
from US $1.98 |
||
|
68
|
68
902-01043-25-00
Washer, Plate
|
902-01043-25-00 |
— | ||
| replacements | |||||
|
68
|
68
90201-04027-00 Washer, Plate |
90201-04027-00 |
from US $1.35 |
||
|
68
|
68
902-01044-R6-00
Washer, Plate (90201-04325-00 )
|
902-01044-R6-00 |
— | ||
|
69
|
69
85L-77551-00-00 Protector 1 |
85L-77551-00-00 |
from US $20.86 |
||
|
70
|
70
85L-77552-00-00
Protector 2
|
85L-77552-00-00 |
— | ||
|
71
|
71
90201-05029-00 Washer, Plate |
90201-05029-00 |
from US $1.98 |
||
|
72
|
72
95701-06300-00 Nut, Nylon |
95701-06300-00 |
from US $1.56 |
||
| replacement | |||||
|
72
|
72
95707-06300-00 Nut, Nylon |
95707-06300-00 |
from US $1.56 |
||
|
73
|
73
82M-77516-00-00 Bush, Rubber 2 |
82M-77516-00-00 |
from US $19.80 |
||
|
74
|
74
90269-05039-00 Rivet |
90269-05039-00 |
from US $1.70 |
||
| replacement | |||||
|
74
|
74
90269-05055-00 Rivet |
90269-05055-00 |
from US $1.34 |
||
|
75
|
75
8V0-77175-00-00 Holder, Latch |
8V0-77175-00-00 |
from US $9.63 |
||
|
76
|
76
4U5-2176E-00-00 Plate |
4U5-2176E-00-00 |
from US $3.40 |
||
|
77
|
77
82M-7717E-00-00 Tape 1 |
82M-7717E-00-00 |
US $6.66 |
||
|
78
|
78
82M-7717F-00-00
Tape 2
|
82M-7717F-00-00 |
— | ||
| replacement | |||||
|
78
|
78
82M-7717F-01-00
Tape 2
|
82M-7717F-01-00 |
— | ||
|
79
|
79
82M-7717G-00-00 Tape 3 |
82M-7717G-00-00 |
from US $1.13 |
||
| replacement | |||||
|
79
|
79
82M-7717G-01-00 Tape 3 |
82M-7717G-01-00 |
from US $1.13 |
||
|
80
|
80
8V0-7717G-00-00 Tape 3 |
8V0-7717G-00-00 |
US $3.73 |
||
| replacement | |||||
|
80
|
80
8V0-7717G-01-00
Tape 3
|
8V0-7717G-01-00 |
— | ||
|
81
|
81
8V0-7717E-00-00 Tape 1 |
8V0-7717E-00-00 |
from US $3.08 |
||
| replacement | |||||
|
81
|
81
8V0-7717E-01-00 Tape 1 |
8V0-7717E-01-00 |
from US $3.26 |
||
|
82
|
82
82M-21997-00-00
Patch 10
|
82M-21997-00-00 |
— | ||
|
83
|
83
90267-48101-00 Rivet, Blind |
90267-48101-00 |
from US $1.56 |
||
|
84
|
84
82M-77198-01-00
Damper 1
|
82M-77198-01-00 |
— | ||
|
85
|
85
84M-7717H-00-00
Tape 4
|
84M-7717H-00-00 |
— | ||
|
86
|
86
84M-7717J-00-00
Tape, 5
|
84M-7717J-00-00 |
— | ||
|
87
|
87
82M-77273-00-00
Damper, Noise 13
|
82M-77273-00-00 |
— | ||
|
88
|
88
88R-77185-00-00
Plate 1
|
88R-77185-00-00 |
— | ||
|
89
|
89
88R-77186-00-00
Plate 2
|
88R-77186-00-00 |
— | ||
|
90
|
90
97701-50014-00 Screw, Truss Head Tapping |
97701-50014-00 |
from US $1.42 |
||
| replacement | |||||
|
90
|
90
97707-50014-00 Screw, Truss Head Tapping |
97707-50014-00 |
from US $1.42 |
||
|
91
|
91
88R-77731-00-00
Shield 1
|
88R-77731-00-00 |
— | ||
|
92
|
92
97701-50014-00 Screw, Truss Head Tapping |
97701-50014-00 |
from US $1.42 |
||
| replacement | |||||
|
92
|
92
97707-50014-00 Screw, Truss Head Tapping |
97707-50014-00 |
from US $1.42 |
||
|
93
|
93
90267-48141-00 Rivet, Blind (4.8X18.6 Black) |
90267-48141-00 |
from US $1.28 |
||
| replacement | |||||
|
93
|
93
90267-48018-00 Rivet, Blind (4.8X18.6 Black) |
90267-48018-00 |
from US $1.28 |
||
|
94
|
94
88R-77557-00-00
Protector 7
|
88R-77557-00-00 |
— | ||
|
95
|
95
90267-48014-00 Rivet, Blind |
90267-48014-00 |
from US $1.70 |
||
|
96
|
96
90201-05651-00 Washer, Plate |
90201-05651-00 |
from US $2.25 |
||
| replacement | |||||
|
96
|
96
90201-051K1-00 Washer, Plate |
90201-051K1-00 |
from US $2.69 |
||
|
97
|
97
88R-77194-00-00
Duct
|
88R-77194-00-00 |
— | ||
|
98
|
98
88R-77127-00-00
Stay 3
|
88R-77127-00-00 |
— | ||
|
99
|
99
88R-14451-00-00
Element, Air Cleaner
(shroud) |
88R-14451-00-00 |
— | ||
| replacement | |||||
|
99
|
99
999-99999-99-00
Not Available
(shroud) |
999-99999-99-00 |
— | ||
