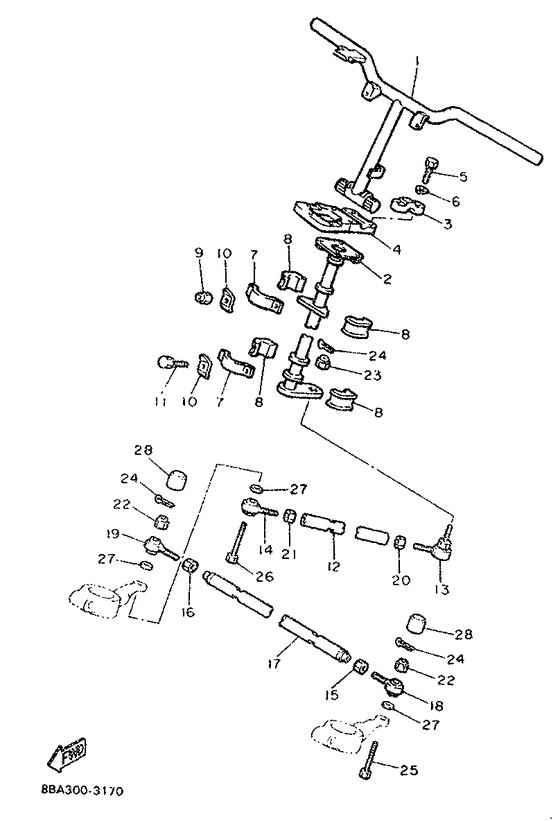

Steering Diagram Yamaha EX570 Exciter II
- Model code
- 8BA1
- Engine Capacity
- 569
- Year
- 1993
- Sales region
- Europe (General) (999)
- Model
- Exciter II
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
8BA-23811-00-00
Column, steering
|
8BA-23811-00-00 |
— | ||
|
02
|
02
8AY-23813-00-00
Column, Steering 2
|
8AY-23813-00-00 |
— | ||
|
03
|
03
1E6-23441-00-00 Holder, Handle Upr (1E6-23441-0 |
1E6-23441-00-00 |
from US $20.97 |
||
|
04
|
04
8V0-23814-01-00 Holder, Handle Upper |
8V0-23814-01-00 |
US $113.09 |
||
|
05
|
05
97022-08055-00 Bolt, Hexagon |
97022-08055-00 |
from US $4.68 |
||
| replacement | |||||
|
05
|
05
97017-08055-00 Bolt |
97017-08055-00 |
from US $4.68 |
||
|
06
|
06
92902-08100-00 Washer, Spring |
92902-08100-00 |
from US $0.85 |
||
| replacement | |||||
|
06
|
06
92907-08100-00 Washer, Spring |
92907-08100-00 |
from US $0.85 |
||
|
07
|
07
84M-23868-00-00 Bracket, Steering Lower |
84M-23868-00-00 |
from US $14.31 |
||
| replacement | |||||
|
07
|
07
84M-23872-00-00 Holder, Bearing |
84M-23872-00-00 |
from US $14.31 |
||
|
08
|
08
8F3-23812-00-00 Bearing, Steering |
8F3-23812-00-00 |
from US $6.23 |
||
|
09
|
09
95712-08300-00 Nut, Lock |
95712-08300-00 |
from US $3.21 |
||
| replacement | |||||
|
09
|
09
957-17083-00-00 Nut, Flange |
957-17083-00-00 |
from US $3.26 |
||
|
10
|
10
90215-08262-00 Washer, Lock 1 |
90215-08262-00 |
from US $1.98 |
||
| replacement | |||||
|
10
|
10
8AC-23894-01-00 Washer, Lock 1 |
8AC-23894-01-00 |
from US $1.98 |
||
|
11
|
11
97012-08020-00 Bolt |
97012-08020-00 |
from US $2.13 |
||
| replacement | |||||
|
11
|
11
97017-08020-00 Bolt |
97017-08020-00 |
from US $1.66 |
||
|
12
|
12
82M-23821-00-00 Rod, Steering Relay |
82M-23821-00-00 |
from US $25.85 |
||
|
13
|
13
86X-23841-00-00 Joint, Universal 1 |
86X-23841-00-00 |
from US $32.08 |
||
|
14
|
14
87S-23847-00-00 Joint, Universal 3 |
87S-23847-00-00 |
from US $21.11 |
||
| replacement | |||||
|
14
|
14
87S-23847-01-00 Joint, Universal 3 |
87S-23847-01-00 |
from US $21.11 |
||
|
15
|
15
95303-10700-00 Nut |
95303-10700-00 |
US $7.37 |
||
| replacement | |||||
|
15
|
15
95380-10700-00 Nut |
95380-10700-00 |
from US $7.37 |
||
|
16
|
16
90170-10186-00 Nut, Hexagon (8A5) |
90170-10186-00 |
from US $1.28 |
||
|
17
|
17
82M-23831-01-00 Rod, Tie |
82M-23831-01-00 |
US $53.73 |
||
| replacement | |||||
|
17
|
17
89X-23831-00-00 Rod, Tie |
89X-23831-00-00 |
US $52.51 |
||
|
18
|
18
87S-23845-00-00 Joint, Universal 2 |
87S-23845-00-00 |
from US $32.87 |
||
| replacement | |||||
|
18
|
18
87S-23845-01-00 Joint, Universal 2 |
87S-23845-01-00 |
from US $29.10 |
||
|
19
|
19
87S-23847-00-00 Joint, Universal 3 |
87S-23847-00-00 |
from US $21.11 |
||
| replacement | |||||
|
19
|
19
87S-23847-01-00 Joint, Universal 3 |
87S-23847-01-00 |
from US $21.11 |
||
|
20
|
20
95303-10700-00 Nut |
95303-10700-00 |
US $7.37 |
||
| replacement | |||||
|
20
|
20
95380-10700-00 Nut |
95380-10700-00 |
from US $7.37 |
||
|
21
|
21
90170-10186-00 Nut, Hexagon (8A5) |
90170-10186-00 |
from US $1.28 |
||
|
22
|
22
95706-10300-00 Nut, Nylon |
95706-10300-00 |
from US $2.55 |
||
| replacement | |||||
|
22
|
22
95707-10300-00 Nut, Flange |
95707-10300-00 |
from US $1.34 |
||
|
23
|
23
90185-10085-00 Nut, Self-Locking |
90185-10085-00 |
from US $1.98 |
||
|
24
|
24
914-01250-20-00
Pin. Cotter
|
914-01250-20-00 |
— | ||
| replacement | |||||
|
24
|
24
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.34 |
||
|
25
|
25
90102-10044-00 Bolt, With Hole |
90102-10044-00 |
from US $4.11 |
||
|
26
|
26
90110-10173-00 Bolt, Hex Socket Head |
90110-10173-00 |
from US $10.63 |
||
|
27
|
27
90210-08759-00
Washer, seal
|
90210-08759-00 |
— | ||
|
28
|
28
82M-23858-00-00 Spacer |
82M-23858-00-00 |
US $9.11 |
||
