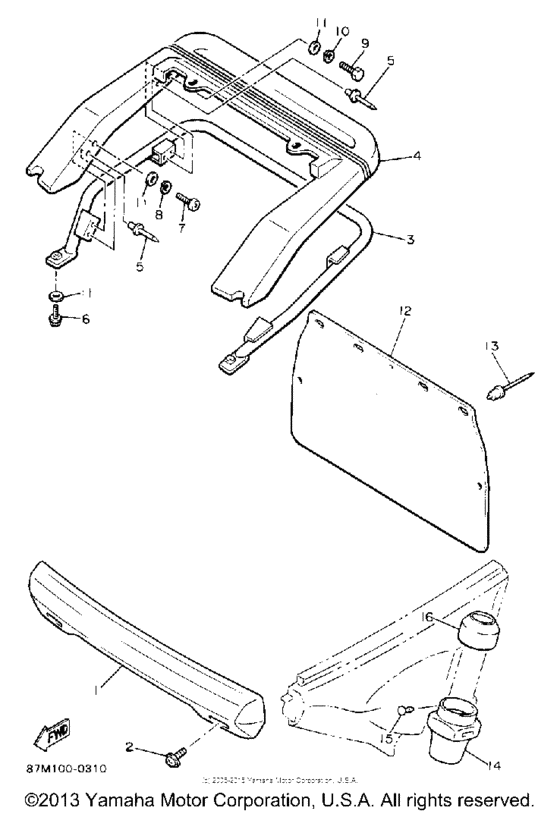

Bumper Diagram Yamaha EX570 Exciter II E
- Model code
- EX570
- Engine Capacity
- 569
- Year
- 1992
- Sales region
- USA
- Model
- Exciter II E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
87M-77511-00-00
Bumper, Front 1
UR FOR RR |
87M-77511-00-00 |
— | ||
|
1
|
1
88S-77511-00-00
Bumper, Front 1
UR FOR BBM2 |
88S-77511-00-00 |
— | ||
|
2
|
2
901-59060-71-00
Screw, With Washer
|
901-59060-71-00 |
— | ||
| replacements | |||||
|
2
|
2
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.42 |
||
|
2
|
2
901-59060-60-00
Screw, With Washer
|
901-59060-60-00 |
— | ||
|
3
|
3
87F-77541-00-00
Bumper, Rear 1
|
87F-77541-00-00 |
— | ||
|
4
|
4
87F-77542-00-00
Bumper, Rear 2
|
87F-77542-00-00 |
— | ||
|
5
|
5
90267-48117-00 Rivet, Blind |
90267-48117-00 |
US $6.08 |
||
|
6
|
6
95811-08012-00 Bolt, Flange (95801-08012-00) |
95811-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
6
|
6
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
7
|
7
98980-08025-00 Screw, Bind (98902-08025-00)98902-08025-00 |
98980-08025-00 |
from US $5.24 |
||
|
8
|
8
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
9
|
9
97011-08025-00 Bolt(2Lt) |
97011-08025-00 |
from US $1.21 |
||
| replacement | |||||
|
9
|
9
97017-08025-00 Bolt |
97017-08025-00 |
from US $1.21 |
||
|
10
|
10
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
11
|
11
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
12
|
12
85L-77595-00-00
Flap
|
85L-77595-00-00 |
— | ||
| replacement | |||||
|
12
|
12
8V9-77595-00-00
Flap
|
8V9-77595-00-00 |
— | ||
|
13
|
13
90267-48086-00 Rivet, Blind (4.8X19 Black)4.8X19 BLACK |
90267-48086-00 |
from US $1.84 |
||
|
14
|
14
82M-77551-00-00 Protector 1 |
82M-77551-00-00 |
US $51.01 |
||
|
15
|
15
90269-04025-00 Rivet |
90269-04025-00 |
from US $1.70 |
||
|
16
|
16
82M-77554-01-00 Protector 4 |
82M-77554-01-00 |
from US $26.21 |
||
