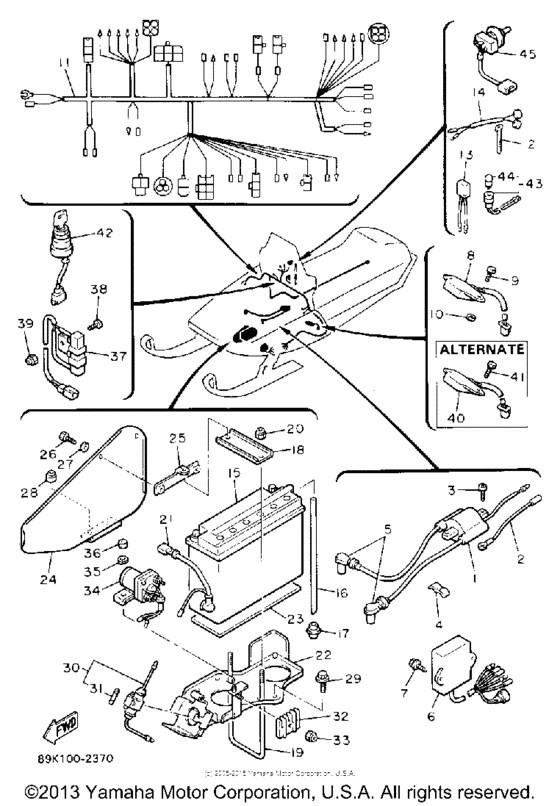

Electrical (1) Diagram Yamaha EX570 Exciter II E
- Model code
- EX570
- Engine Capacity
- 569
- Year
- 1992
- Sales region
- USA
- Model
- Exciter II E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
88R-82310-00-00 Ignition Coil Assy |
88R-82310-00-00 |
from US $79.36 |
||
| replacement | |||||
|
1
|
1
85T-82310-09-00 Ignition Coil Assy |
85T-82310-09-00 |
from US $111.06 |
||
|
2
|
2
87D-82318-00-00
Wire, Sub-Lead
|
87D-82318-00-00 |
— | ||
| replacement | |||||
|
2
|
2
85L-82318-01-00
Wire Sub Lead
|
85L-82318-01-00 |
— | ||
|
3
|
3
97701-60525-00 Screw, Tapping |
97701-60525-00 |
from US $2.13 |
||
| replacement | |||||
|
3
|
3
97707-60525-00 Screw, Tapping |
97707-60525-00 |
from US $2.13 |
||
|
4
|
4
861-82361-00-00 Clamp, Cord |
861-82361-00-00 |
from US $1.84 |
||
|
5
|
5
81E-82370-20-00 Plug Cap Assembly |
81E-82370-20-00 |
from US $28.34 |
||
| replacement | |||||
|
5
|
5
8DG-82370-00-00 Plug Cap Assy |
8DG-82370-00-00 |
from US $28.34 |
||
|
6
|
6
88R-85540-00-00 C.d.i. Unit Assembly |
88R-85540-00-00 |
US $437.27 |
||
|
7
|
7
95811-06016-00 Bolt, Flange |
95811-06016-00 |
from US $1.07 |
||
| replacement | |||||
|
7
|
7
958-17060-16-00 Bolt, Flange |
958-17060-16-00 |
from US $1.07 |
||
|
8
|
8
82M-81910-A0-00 Voltage Regulator Assy |
82M-81910-A0-00 |
from US $59.55 |
||
|
9
|
9
97003-06014-00 Bolt |
97003-06014-00 |
US $2.41 |
||
| replacements | |||||
|
9
|
9
97080-06014-00 Bolt |
97080-06014-00 |
from US $7.08 |
||
|
9
|
9
97095-06014-00 Bolt |
97095-06014-00 |
US $1.56 |
||
|
9
|
9
97D95-06014-00 Bolt, Hexagon Deep R |
97D95-06014-00 |
from US $1.07 |
||
|
10
|
10
95701-06300-00 Nut, Nylon |
95701-06300-00 |
from US $1.56 |
||
| replacement | |||||
|
10
|
10
95707-06300-00 Nut, Nylon |
95707-06300-00 |
from US $1.56 |
||
|
11
|
11
89K-82590-00-00
Wire Harness Assembly
|
89K-82590-00-00 |
— | ||
|
12
|
12
25G-83936-01-00 Band, Switch Cord |
25G-83936-01-00 |
from US $1.56 |
||
|
13
|
13
38W-85774-00-00
Checker, Pilot Lamp
|
38W-85774-00-00 |
— | ||
|
14
|
14
80N-82319-00-00
Wire, Sub-Lead
|
80N-82319-00-00 |
— | ||
|
15
|
15
BTY-YB16A-LA-20
Yb16Ala2 Yuasa Batt
UR |
BTY-YB16A-LA-20 |
— | ||
| replacement | |||||
|
15
|
15
YB1-6ALA2-00-00
Bat Yb16Al-A2 (Cb16Al-A2) Yu
UR |
YB1-6ALA2-00-00 |
— | ||
|
16
|
16
90445-087G7-00 Hose (L340) |
90445-087G7-00 |
from US $5.10 |
||
| replacement | |||||
|
16
|
16
904-45086-84-00 Hose (L340) |
904-45086-84-00 |
from US $5.10 |
||
|
17
|
17
90480-12013-00 Grommet |
90480-12013-00 |
from US $1.84 |
||
|
18
|
18
84N-82136-00-00 Plate, Battery Fitting |
84N-82136-00-00 |
US $11.83 |
||
|
19
|
19
84N-82133-00-00 Screw, Fitting |
84N-82133-00-00 |
US $17.50 |
||
|
20
|
20
95701-06300-00 Nut, Nylon |
95701-06300-00 |
from US $1.56 |
||
| replacement | |||||
|
20
|
20
95707-06300-00 Nut, Nylon |
95707-06300-00 |
from US $1.56 |
||
|
21
|
21
88S-82115-00-00
Wire Plus Lead
|
88S-82115-00-00 |
— | ||
| replacement | |||||
|
21
|
21
84N-82115-00-00
Wire, Plus Lead
|
84N-82115-00-00 |
— | ||
|
22
|
22
88S-2199G-00-00
Bracket, Battery
|
88S-2199G-00-00 |
— | ||
|
23
|
23
84N-82122-00-00 Seat, Battery |
84N-82122-00-00 |
from US $9.16 |
||
|
24
|
24
88S-2199H-01-00
Shield, Heat
|
88S-2199H-01-00 |
— | ||
|
25
|
25
8V0-82128-00-00 Bracket, Battery |
8V0-82128-00-00 |
US $10.93 |
||
|
26
|
26
97001-05010-00 Bolt |
97001-05010-00 |
from US $1.06 |
||
| replacements | |||||
|
26
|
26
97095-05010-00 Bolt |
97095-05010-00 |
from US $1.78 |
||
|
26
|
26
97027-05010-00 Bolt, Hexagon |
97027-05010-00 |
from US $1.70 |
||
|
27
|
27
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
27
|
27
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
27
|
27
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.07 |
||
|
28
|
28
956-01062-00-00
Nut, U-Flange
|
956-01062-00-00 |
— | ||
| replacement | |||||
|
28
|
28
95604-06200-00 Nut, U Flange |
95604-06200-00 |
from US $1.56 |
||
|
29
|
29
95811-06010-00 Bolt, Flange |
95811-06010-00 |
from US $1.07 |
||
| replacements | |||||
|
29
|
29
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.07 |
||
|
29
|
29
95812-06010-00 Bolt, Flange |
95812-06010-00 |
from US $1.07 |
||
|
30
|
30
88T-82150-00-00 Fuse Holder Assembly |
88T-82150-00-00 |
US $27.32 |
||
| replacement | |||||
|
30
|
30
1E6-82150-00-00
Fuse Holder Assembly
|
1E6-82150-00-00 |
— | ||
|
31
|
31
1E6-82151-00-00 Fuse (10A)10A |
1E6-82151-00-00 |
from US $1.70 |
||
|
32
|
32
1Y8-81970-60-00
Rectifier Assy
|
1Y8-81970-60-00 |
— | ||
| replacement | |||||
|
32
|
32
3HB-H1970-01-00
Rectifier Assy (Rxki
|
3HB-H1970-01-00 |
— | ||
|
33
|
33
956-01062-00-00
Nut, U-Flange
|
956-01062-00-00 |
— | ||
| replacement | |||||
|
33
|
33
95604-06200-00 Nut, U Flange |
95604-06200-00 |
from US $1.56 |
||
|
34
|
34
8J9-81940-10-00 Starter Relay Assy |
8J9-81940-10-00 |
US $149 |
||
|
35
|
35
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
36
|
36
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
37
|
37
88T-85370-00-00 Resistor Assembly |
88T-85370-00-00 |
US $44.87 |
||
|
38
|
38
98980-06016-00 Screw, Bind (705) |
98980-06016-00 |
from US $1.42 |
||
|
39
|
39
95701-06300-00 Nut, Nylon |
95701-06300-00 |
from US $1.56 |
||
| replacement | |||||
|
39
|
39
95707-06300-00 Nut, Nylon |
95707-06300-00 |
from US $1.56 |
||
|
40
|
40
82M-81910-A0-00 Voltage Regulator AssyAP |
82M-81910-A0-00 |
from US $59.55 |
||
|
41
|
41
970-21060-30-00
Bolt
AP |
970-21060-30-00 |
— | ||
| replacements | |||||
|
41
|
41
97017-06030-00 BoltAP |
97017-06030-00 |
from US $1.07 |
||
|
41
|
41
970-17060-25-00 BoltAP |
970-17060-25-00 |
from US $1.36 |
||
|
42
|
42
8K1-82508-20-00 Main Switch Assy |
8K1-82508-20-00 |
from US $87.87 |
||
| replacements | |||||
|
42
|
42
8K1-82510-20-00 Main Switch Assy |
8K1-82510-20-00 |
from US $87.87 |
||
|
42
|
42
8K1-82510-21-00 MAIN SWITCH ASSY |
8K1-82510-21-00 |
US $87.87 |
||
|
43
|
43
8V0-84301-00-00
Pilot Light Assembly 1
|
8V0-84301-00-00 |
— | ||
|
44
|
44
8V0-85353-00-00
Bulb (12V5W)
12V5W |
8V0-85353-00-00 |
— | ||
|
45
|
45
88H-82917-00-00 Switch |
88H-82917-00-00 |
US $146.61 |
||
