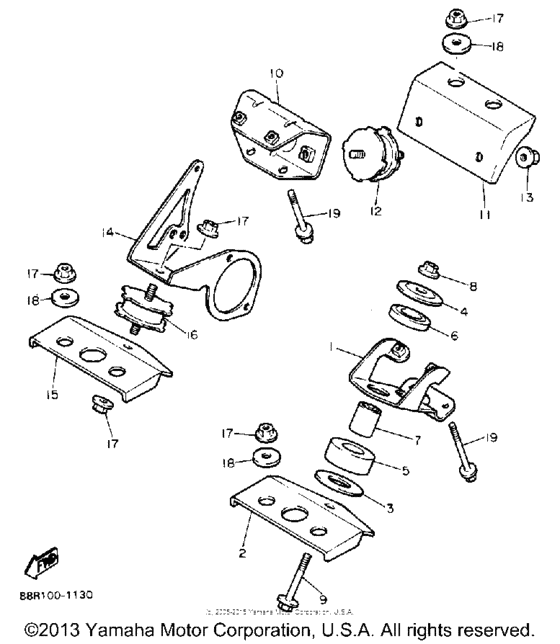

Engine bracket Diagram Yamaha EX570 Exciter II E
- Model code
- EX570
- Engine Capacity
- 569
- Year
- 1992
- Sales region
- USA
- Model
- Exciter II E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82M-21415-00-00 Bracket, Front Upper 1 |
82M-21415-00-00 |
from US $32.16 |
||
|
2
|
2
82M-21417-00-00
Bracket, Front Lower 1
|
82M-21417-00-00 |
— | ||
|
3
|
3
90201-10151-00 Washer, Plate |
90201-10151-00 |
from US $2.13 |
||
|
4
|
4
90208-10034-00 Washer, Conical Spring |
90208-10034-00 |
US $19.40 |
||
|
5
|
5
8U9-21485-00-00
Damper, Rubber 1
|
8U9-21485-00-00 |
— | ||
|
6
|
6
8U9-21486-00-00
Damper 2
|
8U9-21486-00-00 |
— | ||
|
7
|
7
90380-10113-00
Bush, Solid
|
90380-10113-00 |
— | ||
|
8
|
8
957-01105-00-00
Nut, With Washer
|
957-01105-00-00 |
— | ||
| replacements | |||||
|
8
|
8
95704-10500-00 Nut, With Washer |
95704-10500-00 |
from US $1.07 |
||
|
8
|
8
90179-10394-00 Nut, Flange |
90179-10394-00 |
from US $1.56 |
||
|
9
|
9
95811-10055-00 Bolt, Flange |
95811-10055-00 |
from US $2.83 |
||
| replacement | |||||
|
9
|
9
95817-10055-00 Bolt, Flange |
95817-10055-00 |
from US $2.83 |
||
|
10
|
10
82M-21425-00-00 Bracket, Rear Upper 1 |
82M-21425-00-00 |
US $16.09 |
||
| replacement | |||||
|
10
|
10
8AY-21425-00-00
Bracket, Rear Upr 1
|
8AY-21425-00-00 |
— | ||
|
11
|
11
82M-21427-01-00
Bracket, Rear Lower 1
|
82M-21427-01-00 |
— | ||
|
12
|
12
8M6-21486-01-00 Damper 2 |
8M6-21486-01-00 |
US $47.32 |
||
| replacement | |||||
|
12
|
12
8M6-21486-02-00 Damper 2 |
8M6-21486-02-00 |
US $47.32 |
||
|
13
|
13
957-01105-00-00
Nut, With Washer
|
957-01105-00-00 |
— | ||
| replacements | |||||
|
13
|
13
95704-10500-00 Nut, With Washer |
95704-10500-00 |
from US $1.07 |
||
|
13
|
13
90179-10394-00 Nut, Flange |
90179-10394-00 |
from US $1.56 |
||
|
14
|
14
82M-21416-00-00
Bracket, Front Upper 2
|
82M-21416-00-00 |
— | ||
|
15
|
15
82M-21417-00-00
Bracket, Front Lower 1
|
82M-21417-00-00 |
— | ||
|
16
|
16
8M6-21486-01-00 Damper 2 |
8M6-21486-01-00 |
US $47.32 |
||
| replacement | |||||
|
16
|
16
8M6-21486-02-00 Damper 2 |
8M6-21486-02-00 |
US $47.32 |
||
|
17
|
17
957-01105-00-00
Nut, With Washer
|
957-01105-00-00 |
— | ||
| replacements | |||||
|
17
|
17
95704-10500-00 Nut, With Washer |
95704-10500-00 |
from US $1.07 |
||
|
17
|
17
90179-10394-00 Nut, Flange |
90179-10394-00 |
from US $1.56 |
||
|
18
|
18
90201-10321-00 Washer, Plate |
90201-10321-00 |
from US $2.69 |
||
|
19
|
19
95811-08075-00 Bolt, Flange |
95811-08075-00 |
from US $1.98 |
||
| replacement | |||||
|
19
|
19
95817-08075-00 Bolt, Flange |
95817-08075-00 |
from US $1.98 |
||
