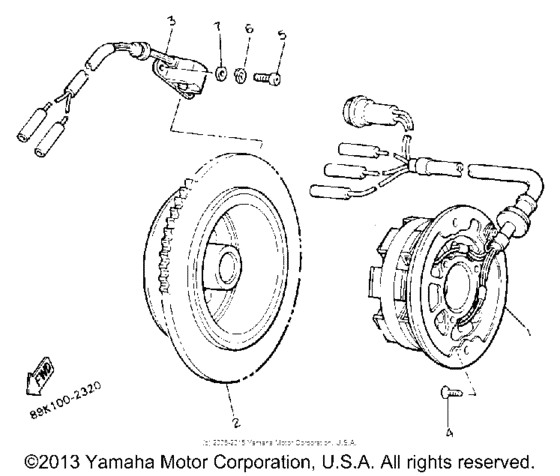

Generator Diagram Yamaha EX570 Exciter II E
- Model code
- EX570
- Engine Capacity
- 569
- Year
- 1992
- Sales region
- USA
- Model
- Exciter II E
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
88R-85510-00-00 Stator Assembly |
88R-85510-00-00 |
from US $576.67 |
||
|
2
|
2
88S-85550-00-00
Rotor Assembly
|
88S-85550-00-00 |
— | ||
|
3
|
3
88R-85580-01-00
Coil, Pulser
|
88R-85580-01-00 |
— | ||
|
4
|
4
98980-06016-00 Screw, Bind (705) |
98980-06016-00 |
from US $1.42 |
||
|
5
|
5
985-80050-14-00
Screw, Pan Head
|
985-80050-14-00 |
— | ||
| replacements | |||||
|
5
|
5
98502-05014-00 Screw, Pan Head |
98502-05014-00 |
from US $1.28 |
||
|
5
|
5
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
6
|
6
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
7
|
7
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
7
|
7
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
7
|
7
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.07 |
||
