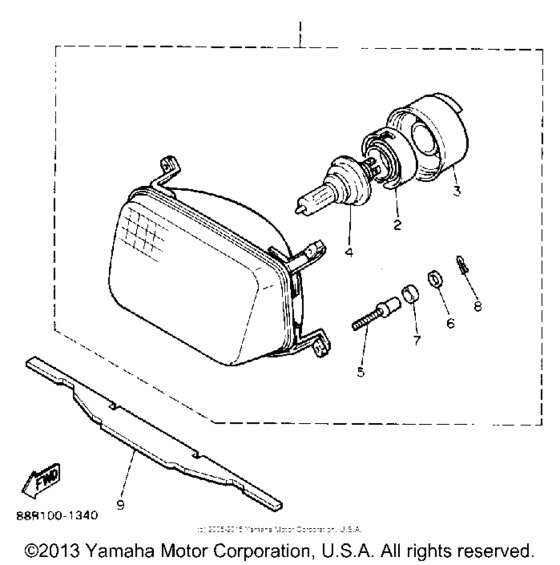

Headlight Diagram Yamaha EX570 Exciter II E
- Model code
- EX570
- Engine Capacity
- 569
- Year
- 1992
- Sales region
- USA
- Model
- Exciter II E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
88R-84310-00-00
Headlight Unit Assembly
|
88R-84310-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
8A7-84312-00-00 Holder, Socket |
8A7-84312-00-00 |
from US $11.76 |
||
|
3
|
3
8A7-84397-01-00 Cover, Socket |
8A7-84397-01-00 |
from US $13.03 |
||
|
4
|
4
5V2-84314-00-XX
Bulb (12V-60/55W)
12V-60/55W |
5V2-84314-00-XX |
— | ||
| replacements | |||||
|
4
|
4
2F9-84314-00-00 Bulb (12V 60/55W Halogen)12V-60/55W |
2F9-84314-00-00 |
from US $29.16 |
||
|
4
|
4
5VK-H4314-00-00 Bulb, Headlight12V-60/55W |
5VK-H4314-00-00 |
US $42.42 |
||
|
4
|
4
8V0-84314-10-00 Bulb, Headlight12V-60/55W |
8V0-84314-10-00 |
from US $42.42 |
||
|
5
|
5
8V0-84331-00-00 Screw, Rim Adjusting |
8V0-84331-00-00 |
US $6.75 |
||
|
6
|
6
8V0-84327-00-00 Washer, Plate |
8V0-84327-00-00 |
from US $1.70 |
||
| replacement | |||||
|
6
|
6
90201-090P4-00 Washer, Plate |
90201-090P4-00 |
from US $1.70 |
||
|
7
|
7
8V0-84366-00-00 Damper, Headlight 1 |
8V0-84366-00-00 |
US $3.51 |
||
|
8
|
8
8V0-84374-00-00 Clip |
8V0-84374-00-00 |
from US $1.98 |
||
| replacement | |||||
|
8
|
8
90468-12006-00 Clip |
90468-12006-00 |
from US $1.84 |
||
|
9
|
9
8W6-84366-00-00 Damper, Headlight 1 |
8W6-84366-00-00 |
US $12.78 |
||
