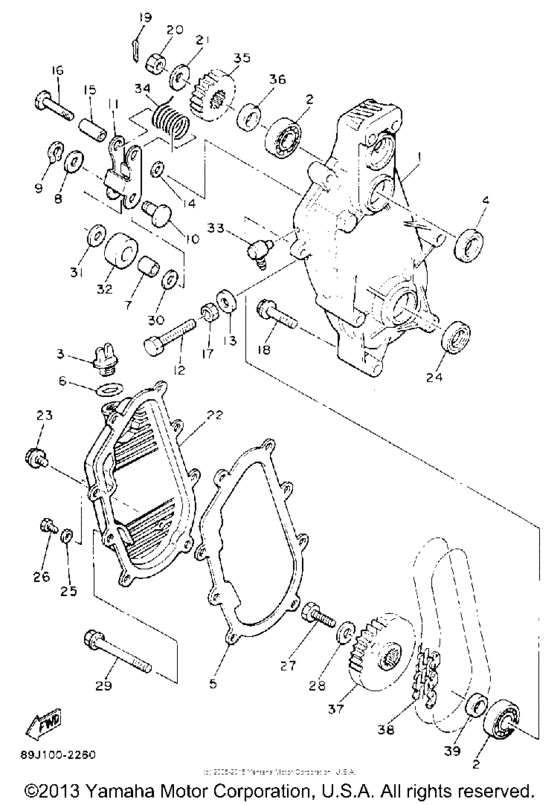

Track drive (2) Diagram Yamaha EX570 Exciter II E
- Model code
- EX570
- Engine Capacity
- 569
- Year
- 1992
- Sales region
- USA
- Model
- Exciter II E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8L9-47541-01-00 Housing, Chain |
8L9-47541-01-00 |
from US $207.96 |
||
|
2
|
2
93306-20570-00 Bearing (80N) |
93306-20570-00 |
from US $23.66 |
||
|
3
|
3
1RG-15363-00-00 Plug, Oil |
1RG-15363-00-00 |
from US $17.14 |
||
| replacement | |||||
|
3
|
3
3Y1-15363-10-00 Plug, Oil |
3Y1-15363-10-00 |
from US $17.14 |
||
|
4
|
4
93102-27204-00 Oil Seal |
93102-27204-00 |
from US $5.10 |
||
|
5
|
5
86M-47592-00-00 Gasket |
86M-47592-00-00 |
from US $25.50 |
||
| replacement | |||||
|
5
|
5
86M-47592-01-00 |
86M-47592-01-00 |
US $12.78 |
||
|
6
|
6
932-10191-23-00 O-Ring |
932-10191-23-00 |
from US $1.70 |
||
|
7
|
7
93306-30101-00 Bearing |
93306-30101-00 |
from US $9.78 |
||
|
8
|
8
90201-12631-00 Washer, Plate (583) |
90201-12631-00 |
from US $1.56 |
||
|
9
|
9
99009-12400-00 Circlip |
99009-12400-00 |
from US $1.56 |
||
|
10
|
10
90249-12216-00 Pin |
90249-12216-00 |
from US $7.37 |
||
|
11
|
11
89J-47613-00-00
Holder
|
89J-47613-00-00 |
— | ||
| replacement | |||||
|
11
|
11
89J-47613-01-00
Holder
|
89J-47613-01-00 |
— | ||
|
12
|
12
90101-10357-00 Bolt |
90101-10357-00 |
from US $7.37 |
||
|
13
|
13
90210-10004-00 Washer, Seal |
90210-10004-00 |
from US $3.83 |
||
|
14
|
14
92901-10758-00
New Genuine Part
IN PRICE BOOK |
92901-10758-00 |
— | ||
|
15
|
15
90387-105Y5-00
Collar
|
90387-105Y5-00 |
— | ||
|
16
|
16
90101-10748-00
Bolt
|
90101-10748-00 |
— | ||
|
17
|
17
95303-10700-00 Nut |
95303-10700-00 |
US $7.37 |
||
| replacement | |||||
|
17
|
17
95380-10700-00 Nut |
95380-10700-00 |
from US $7.37 |
||
|
18
|
18
95811-08065-00 Bolt, Flange |
95811-08065-00 |
from US $3.02 |
||
| replacements | |||||
|
18
|
18
95814-08065-00 Bolt, Flange |
95814-08065-00 |
from US $3.54 |
||
|
18
|
18
90105-08721-00 Bolt, Washer Based(4Jg) |
90105-08721-00 |
from US $4.79 |
||
|
19
|
19
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
19
|
19
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
|
20
|
20
90170-20211-00 Nut |
90170-20211-00 |
from US $4.11 |
||
| replacement | |||||
|
20
|
20
901-70204-13-00
Nut(4Ga)
|
901-70204-13-00 |
— | ||
|
21
|
21
90208-20008-00 Washer, Conical Spring |
90208-20008-00 |
from US $1.70 |
||
|
22
|
22
82M-47543-00-00 Cap, Housing |
82M-47543-00-00 |
from US $119.47 |
||
|
23
|
23
95811-06030-00 Bolt, Flange(2Hr) |
95811-06030-00 |
from US $1.07 |
||
| replacement | |||||
|
23
|
23
95817-06030-00 Bolt, Flange |
95817-06030-00 |
from US $1.07 |
||
|
24
|
24
93102-25081-00 Oil Seal |
93102-25081-00 |
from US $3.64 |
||
|
25
|
25
90210-06006-00 Washer, Seal |
90210-06006-00 |
from US $1.98 |
||
|
26
|
26
970-11060-10-00
Bolt
|
970-11060-10-00 |
— | ||
| replacement | |||||
|
26
|
26
97017-06010-00 Bolt |
97017-06010-00 |
from US $1.34 |
||
|
27
|
27
970-11100-25-00
Bolt
|
970-11100-25-00 |
— | ||
| replacement | |||||
|
27
|
27
97017-10025-00 Bolt |
97017-10025-00 |
from US $2.41 |
||
|
28
|
28
90201-10742-00 Washer, Plate |
90201-10742-00 |
from US $3.83 |
||
|
29
|
29
95811-08090-00 Bolt, Flange (2K7) |
95811-08090-00 |
from US $5.24 |
||
| replacement | |||||
|
29
|
29
95817-08090-00 Bolt, Flange |
95817-08090-00 |
from US $5.24 |
||
|
30
|
30
90201-124F8-00 Washer, Plate |
90201-124F8-00 |
from US $1.84 |
||
|
31
|
31
90201-126A7-00 Washer, Plate (4N0) |
90201-126A7-00 |
from US $1.70 |
||
|
32
|
32
89J-47612-00-00
Wheel
|
89J-47612-00-00 |
— | ||
| replacements | |||||
|
32
|
32
999-99023-12-00
Wheel
|
999-99023-12-00 |
— | ||
|
32
|
32
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
33
|
33
3YJ-15371-00-00 Breather |
3YJ-15371-00-00 |
from US $2.27 |
||
|
34
|
34
90508-342A9-00
Spring, Torsion
|
90508-342A9-00 |
— | ||
|
35
|
35
89J-17682-80-00 Sprocket, Chain Drive (18T)18T UR STD |
89J-17682-80-00 |
US $44.07 |
||
|
35
|
35
89J-17682-60-00
Sprocket, Chain Drive (16T)
16T AP |
89J-17682-60-00 |
— | ||
|
35
|
35
89J-17682-70-00
Sprocket, Chain Drive (17T)
17T AP UR STD |
89J-17682-70-00 |
— | ||
|
36
|
36
90387-25663-00 Collar |
90387-25663-00 |
from US $24.37 |
||
|
37
|
37
89J-47587-30-00 Sprocket, Chain Driven (33T)33T UR STD |
89J-47587-30-00 |
US $152.03 |
||
| replacement | |||||
|
37
|
37
89J-47587-30-WP
Sprocket, Drive (33T)
33T UR STD |
89J-47587-30-WP |
— | ||
|
37
|
37
89J-47587-50-00
Sprocket, Chain Driven (35T)
35T AP |
89J-47587-50-00 |
— | ||
| replacement | |||||
|
37
|
37
999-99999-99-00
Not Available
35T AP |
999-99999-99-00 |
— | ||
|
38
|
38
948-60020-68-00 Chain (68L)68L UR STD |
948-60020-68-00 |
US $140.92 |
||
|
39
|
39
90560-25362-00 Spacer |
90560-25362-00 |
US $11.18 |
||
