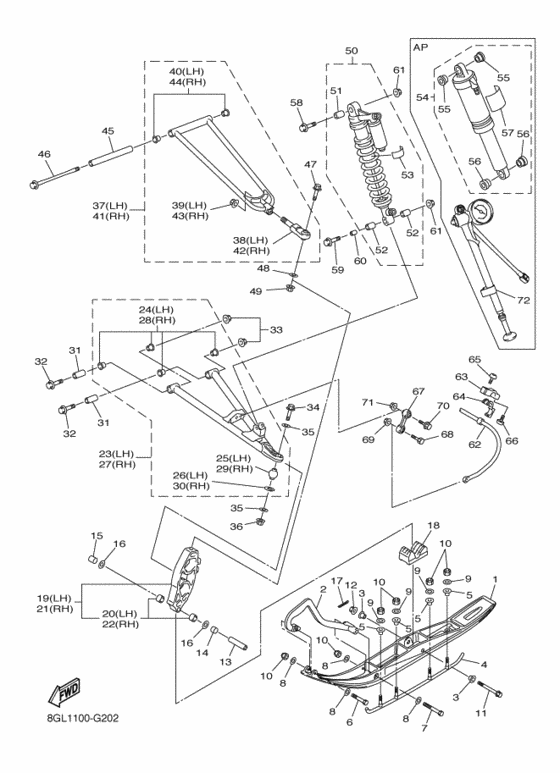

Ski Diagram Yamaha FX10/ RFX10 FX Nytro
- Model code
- 8GL1
- Engine Capacity
- 1049
- Year
- 2008
- Sales region
- Europe (020)
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Color Variant
- A
- Power
- 130 hp
- Model
- FX Nytro
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8EX-F3711-00-00 Ski 1, Black |
8EX-F3711-00-00 |
US $132.48 |
||
| replacement | |||||
|
1
|
1
8EX-23711-00-BK Ski 1, Black |
8EX-23711-00-BK |
US $132.48 |
||
|
2
|
2
8EK-F3712-00-00 Reinforcement, HeadUR FOR DPBSE |
8EK-F3712-00-00 |
US $32.65 |
||
| replacements | |||||
|
2
|
2
8DM-23712-00-BU
Reinforcement, Head
UR FOR DPBSE |
8DM-23712-00-BU |
— | ||
|
2
|
2
8EK-23712-00-00 Reinforcement, HeadUR FOR DPBSE |
8EK-23712-00-00 |
US $108.87 |
||
|
3
|
3
8EX-F3754-00-00 Collar 1 |
8EX-F3754-00-00 |
from US $10.80 |
||
| replacements | |||||
|
3
|
3
8JH-23754-00-00 Collar, 1 |
8JH-23754-00-00 |
from US $11.76 |
||
|
3
|
3
8EX-23754-00-00 Collar, 1 |
8EX-23754-00-00 |
from US $11.76 |
||
|
4
|
4
8EK-F3731-01-00
Runner 1
|
8EK-F3731-01-00 |
— | ||
| replacement | |||||
|
4
|
4
8DM-23731-00-XX Runner 1 :sm |
8DM-23731-00-XX |
US $259.92 |
||
|
5
|
5
8EK-F3751-00-00 Bush, Ski 1 |
8EK-F3751-00-00 |
from US $4.68 |
||
| replacements | |||||
|
5
|
5
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
8EK-23751-00-00 Bush, Ski 1 |
8EK-23751-00-00 |
from US $4.68 |
||
|
6
|
6
9702M-08055-00 Bolt |
9702M-08055-00 |
from US $4.68 |
||
| replacement | |||||
|
6
|
6
97017-08055-00 Bolt |
97017-08055-00 |
from US $4.68 |
||
|
7
|
7
9702M-08100-00 Bolt |
9702M-08100-00 |
from US $2.13 |
||
| replacement | |||||
|
7
|
7
970-27081-00-00 Bolt, Hexagon |
970-27081-00-00 |
from US $2.13 |
||
|
8
|
8
90201-08784-00 Washer, Plate |
90201-08784-00 |
from US $1.70 |
||
|
9
|
9
90201-086P8-00 Washer, Plate(3Xp) |
90201-086P8-00 |
from US $1.70 |
||
|
10
|
10
9570M-08300-00 Nut, Nylon |
9570M-08300-00 |
from US $3.21 |
||
| replacement | |||||
|
10
|
10
957-17083-00-00 Nut, Flange |
957-17083-00-00 |
from US $3.26 |
||
|
11
|
11
90105-10070-00 Bolt, Flange |
90105-10070-00 |
from US $7.65 |
||
|
12
|
12
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
|
13
|
13
90387-1012H-00 Collar |
90387-1012H-00 |
from US $7.23 |
||
|
14
|
14
90387-16017-00 Collar |
90387-16017-00 |
from US $4.39 |
||
|
15
|
15
903-87160-18-00 Collar |
903-87160-18-00 |
from US $5.10 |
||
|
16
|
16
90201-16022-00 Washer, Plate |
90201-16022-00 |
from US $1.98 |
||
|
17
|
17
914-01200-20-00
Pin, Cotter
|
914-01200-20-00 |
— | ||
| replacement | |||||
|
17
|
17
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
18
|
18
8GL-23743-00-00 Stopper 1 |
8GL-23743-00-00 |
US $42.19 |
||
|
19
|
19
8GL-23501-00-00 Steering Knuckle Assy (Left) |
8GL-23501-00-00 |
from US $268.03 |
||
|
20
|
20
903-8416N-51-00 Bush, Bimetal Formed |
903-8416N-51-00 |
from US $4.39 |
||
|
21
|
21
8GL-23502-00-00 Steering Knuckle Assy (Right) |
8GL-23502-00-00 |
from US $268.03 |
||
|
22
|
22
903-8416N-51-00 Bush, Bimetal Formed |
903-8416N-51-00 |
from US $4.39 |
||
|
23
|
23
8GL-23570-00-P0 Front Lower Arm Comp. (Left)UR S8 FOR DPBSE |
8GL-23570-00-P0 |
from US $321.91 |
||
| replacement | |||||
|
23
|
23
8GL-23570-01-P0 Front Lower Arm Comp. (Left)UR S8 FOR DPBSE |
8GL-23570-01-P0 |
from US $321.91 |
||
|
24
|
24
903-8118N-51-00 Bush, Solid |
903-8118N-51-00 |
from US $8.22 |
||
|
25
|
25
8GK-23579-00-00
Ball Joint 2
|
8GK-23579-00-00 |
— | ||
| replacement | |||||
|
25
|
25
8GK-23579-01-00 Ball Joint 2 |
8GK-23579-01-00 |
from US $88.70 |
||
|
26
|
26
99009-35700-00 Circlip |
99009-35700-00 |
from US $1.56 |
||
|
27
|
27
8GL-23580-00-P0 Front Lower Arm Comp. (Right)UR S8 FOR DPBSE |
8GL-23580-00-P0 |
from US $240.95 |
||
| replacement | |||||
|
27
|
27
8GL-23580-01-P0 Front Lower Arm Comp. (Right)UR S8 FOR DPBSE |
8GL-23580-01-P0 |
from US $240.95 |
||
|
28
|
28
903-8118N-51-00 Bush, Solid |
903-8118N-51-00 |
from US $8.22 |
||
|
29
|
29
8GK-23579-00-00
Ball Joint 2
|
8GK-23579-00-00 |
— | ||
| replacement | |||||
|
29
|
29
8GK-23579-01-00 Ball Joint 2 |
8GK-23579-01-00 |
from US $88.70 |
||
|
30
|
30
99009-35700-00 Circlip |
99009-35700-00 |
from US $1.56 |
||
|
31
|
31
90387-10065-00 Collar |
90387-10065-00 |
from US $14.31 |
||
|
32
|
32
90105-10211-00 Bolt, Flange |
90105-10211-00 |
from US $4.39 |
||
|
33
|
33
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
|
34
|
34
90105-10210-00 Bolt, Flange |
90105-10210-00 |
from US $4.39 |
||
|
35
|
35
90201-10051-00 Washer, Plate |
90201-10051-00 |
from US $2.55 |
||
|
36
|
36
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
|
37
|
37
8GL-23540-00-P0 Front Upper Arm Comp. (Left)UR S8 FOR DPBSE |
8GL-23540-00-P0 |
from US $154.90 |
||
|
38
|
38
8GK-23549-00-00 Ball Joint 1 |
8GK-23549-00-00 |
from US $96.02 |
||
|
39
|
39
95602-14200-00 Nut, Self-Locking |
95602-14200-00 |
from US $7.51 |
||
| replacement | |||||
|
39
|
39
956-07142-00-00 Nut, Self-Locking |
956-07142-00-00 |
from US $7.48 |
||
|
40
|
40
903-8115N-50-00 Bush, Solid |
903-8115N-50-00 |
from US $3.83 |
||
|
41
|
41
8GL-23550-00-P0 Front Upper Arm Comp. (Right)UR S8 FOR DPBSE |
8GL-23550-00-P0 |
from US $205.86 |
||
|
42
|
42
8GK-23549-00-00 Ball Joint 1 |
8GK-23549-00-00 |
from US $96.02 |
||
|
43
|
43
95602-14200-00 Nut, Self-Locking |
95602-14200-00 |
from US $7.51 |
||
| replacement | |||||
|
43
|
43
956-07142-00-00 Nut, Self-Locking |
956-07142-00-00 |
from US $7.48 |
||
|
44
|
44
903-8115N-50-00 Bush, Solid |
903-8115N-50-00 |
from US $3.83 |
||
|
45
|
45
90387-10058-00 Collar |
90387-10058-00 |
from US $17.28 |
||
|
46
|
46
90105-10213-00 Bolt, Flange |
90105-10213-00 |
from US $11.62 |
||
|
47
|
47
91312-10045-00 Bolt |
91312-10045-00 |
from US $3.26 |
||
|
48
|
48
90201-10052-00 Washer, Plate |
90201-10052-00 |
from US $1.84 |
||
|
49
|
49
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
|
50
|
50
8GL-2376A-00-00 Absorber Assy 1 |
8GL-2376A-00-00 |
from US $888.36 |
||
|
51
|
51
8FA-2331R-00-00 Damper, Bush B |
8FA-2331R-00-00 |
from US $5.81 |
||
|
52
|
52
903-8415N-51-00 Bush, Bimetal Formed |
903-8415N-51-00 |
from US $4.11 |
||
|
53
|
53
4AA-22259-70-00 Label, Warning |
4AA-22259-70-00 |
from US $6.52 |
||
| replacement | |||||
|
53
|
53
4AA-22259-60-00 Label, Warning |
4AA-22259-60-00 |
from US $6.52 |
||
|
54
|
54
8HB-F376A-00-00 Absorber Assy 1AP |
8HB-F376A-00-00 |
US $975.48 |
||
| replacement | |||||
|
54
|
54
8HB-2376A-00-00 Absorber Assy 1AP |
8HB-2376A-00-00 |
from US $667.06 |
||
|
55
|
55
8HR-2376B-09-00 BushAP |
8HR-2376B-09-00 |
from US $22.67 |
||
|
56
|
56
8HR-2376B-19-00 BushAP |
8HR-2376B-19-00 |
from US $22.67 |
||
|
57
|
57
8GT-F2259-50-00 Label, WarningAP |
8GT-F2259-50-00 |
US $23.94 |
||
| replacements | |||||
|
57
|
57
8GT-F2259-00-00 ARM, PIVOT 1AP |
8GT-F2259-00-00 |
US $9.04 |
||
|
57
|
57
8GT-22259-50-00 Label,warningAP |
8GT-22259-50-00 |
from US $9.04 |
||
|
58
|
58
90105-10122-00 Bolt, Flange |
90105-10122-00 |
from US $3.26 |
||
|
59
|
59
90105-10209-00 Bolt, Flange |
90105-10209-00 |
from US $3.54 |
||
|
60
|
60
90387-10N59-00 Collar |
90387-10N59-00 |
from US $8.08 |
||
|
61
|
61
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
|
62
|
62
8GN-2386E-10-00 Bar, Stabilizer Front |
8GN-2386E-10-00 |
from US $153.36 |
||
|
63
|
63
8GL-2386C-00-00 Holder, Stabilizer Front |
8GL-2386C-00-00 |
from US $24.23 |
||
|
64
|
64
8GN-2386G-10-00 Bush, Stabilizer Front |
8GN-2386G-10-00 |
from US $3.26 |
||
|
65
|
65
92012-08030-00 Bolt, Button Head |
92012-08030-00 |
from US $1.56 |
||
|
66
|
66
92012-08016-00 Bolt, Button Head |
92012-08016-00 |
from US $1.34 |
||
|
67
|
67
8GN-2385L-10-00 Joint, Stabilizer 1 |
8GN-2385L-10-00 |
from US $92.84 |
||
|
68
|
68
97012-10035-00 Bolt |
97012-10035-00 |
from US $3.97 |
||
| replacement | |||||
|
68
|
68
97017-10035-00 Bolt |
97017-10035-00 |
from US $3.97 |
||
|
69
|
69
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
|
70
|
70
95812-08040-00 Bolt, Flange |
95812-08040-00 |
from US $1.07 |
||
| replacement | |||||
|
70
|
70
95817-08040-00 Bolt, Flange |
95817-08040-00 |
from US $1.07 |
||
|
71
|
71
95602-08200-00 Nut, U Flange |
95602-08200-00 |
from US $1.84 |
||
| replacement | |||||
|
71
|
71
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.13 |
||
|
72
|
72
8GT-F3703-00-00 Fox Mega Float PumpAP |
8GT-F3703-00-00 |
from US $60.34 |
||
| replacements | |||||
|
72
|
72
SMA-MEGAF-PU-MP Rpt Mega Foxfloat Airshox PumpAP |
SMA-MEGAF-PU-MP |
US $187.60 |
||
|
72
|
72
8FP-23703-FS-00 Rpt Fox Float Airshox PumpAP |
8FP-23703-FS-00 |
US $60.34 |
||
