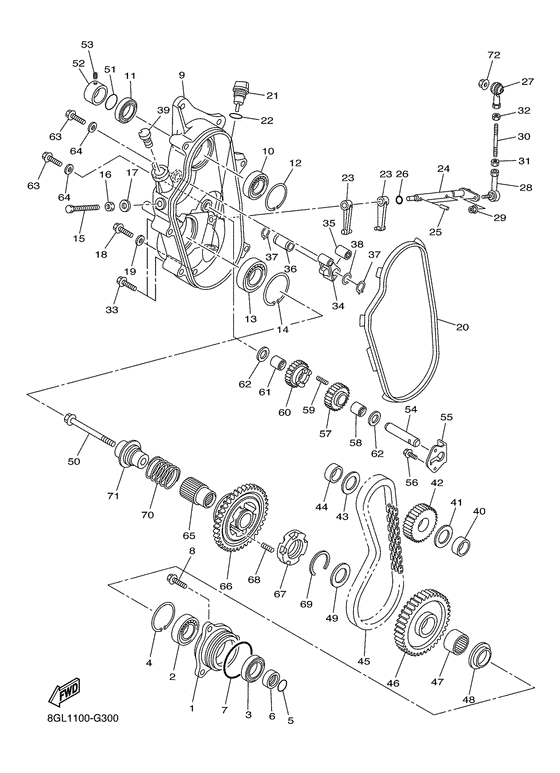

Track drive 2 Diagram Yamaha FX10/ RFX10 FX Nytro
- Model code
- 8GL2
- Engine Capacity
- 1049
- Year
- 2008
- Sales region
- Finland (010)
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Color Variant
- A
- Power
- 130 hp
- Model
- FX Nytro
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
8GL-47633-00-00 Housing, Bearing 2 |
8GL-47633-00-00 |
from US $42.14 |
||
|
02
|
02
93306-205A9-00 Bearing |
93306-205A9-00 |
from US $28.90 |
||
|
03
|
03
93102-35010-00 Oil Seal |
93102-35010-00 |
from US $6.94 |
||
|
04
|
04
99009-52500-00 Circlip |
99009-52500-00 |
from US $4.96 |
||
|
05
|
05
93210-25071-00 O-Ring |
93210-25071-00 |
from US $1.98 |
||
|
06
|
06
90387-2508C-00 Collar |
90387-2508C-00 |
from US $14.45 |
||
|
07
|
07
93210-60426-00 O-Ring |
93210-60426-00 |
from US $6.09 |
||
|
08
|
08
95822-08025-00 Bolt, Flange |
95822-08025-00 |
from US $1.07 |
||
| replacement | |||||
|
08
|
08
95817-08025-00 Bolt, Flange |
95817-08025-00 |
from US $1.07 |
||
|
09
|
09
8GL-47543-00-00 Cap, Housing8gl1: to 8gl-001785 8gl2: |
8GL-47543-00-00 |
from US $175.46 |
||
| replacement | |||||
|
09
|
09
8GL-47543-01-00 Cap, Housing8gl1: to 8gl-001785 8gl2: |
8GL-47543-01-00 |
from US $175.46 |
||
|
09
|
09
8GL-47543-01-00 Cap, Housing8gl1: from 8gl-001786 8gl2 |
8GL-47543-01-00 |
from US $175.46 |
||
|
10
|
10
93306-20511-00 Bearing |
93306-20511-00 |
from US $27.06 |
||
| replacements | |||||
|
10
|
10
93306-20532-00 Bearing |
93306-20532-00 |
from US $27.06 |
||
|
10
|
10
933-06205-29-00 Bearing |
933-06205-29-00 |
from US $16.20 |
||
|
11
|
11
93102-35473-00 Oil Seal |
93102-35473-00 |
from US $24.94 |
||
|
12
|
12
99009-52500-00 Circlip |
99009-52500-00 |
from US $4.96 |
||
|
13
|
13
93306-00711-00 Bearing |
93306-00711-00 |
from US $35.51 |
||
|
14
|
14
99009-62500-00 Circlip |
99009-62500-00 |
from US $1.98 |
||
|
15
|
15
90101-10357-00 Bolt |
90101-10357-00 |
from US $7.37 |
||
|
16
|
16
95302-10700-00 Nut, Hexagon |
95302-10700-00 |
US $7.37 |
||
| replacements | |||||
|
16
|
16
95380-10700-00 Nut |
95380-10700-00 |
from US $7.37 |
||
|
16
|
16
95314-10600-00 Nut |
95314-10600-00 |
from US $1.45 |
||
|
17
|
17
90210-10004-00 Washer, Seal |
90210-10004-00 |
from US $3.83 |
||
|
18
|
18
97002-08016-00 Bolt |
97002-08016-00 |
from US $1.42 |
||
| replacement | |||||
|
18
|
18
97017-08016-00 Bolt |
97017-08016-00 |
from US $1.42 |
||
|
19
|
19
90210-08017-00 Washer, Seal |
90210-08017-00 |
from US $1.98 |
||
|
20
|
20
8GL-47558-00-00 Ring, Housing |
8GL-47558-00-00 |
from US $22.10 |
||
|
21
|
21
8GL-15362-00-00 Plug, Oil Level |
8GL-15362-00-00 |
from US $6.80 |
||
|
22
|
22
932-10195-22-00 O-Ring |
932-10195-22-00 |
from US $1.84 |
||
|
23
|
23
8GL-18511-00-00 Fork, Shift 1 |
8GL-18511-00-00 |
from US $23.66 |
||
| replacement | |||||
|
23
|
23
8GL-18511-01-00 Fork, Shift 1 |
8GL-18511-01-00 |
from US $23.66 |
||
|
24
|
24
8GL-18197-00-00 Shaft |
8GL-18197-00-00 |
from US $30.04 |
||
|
25
|
25
91609-50022-00 Pin, Spring |
91609-50022-00 |
from US $1.84 |
||
|
26
|
26
93210-12131-00 O-Ring |
93210-12131-00 |
from US $2.55 |
||
|
27
|
27
8CW-18156-00-00 Joint 1 |
8CW-18156-00-00 |
from US $37.30 |
||
|
28
|
28
88T-18157-00-00 Joint 2 |
88T-18157-00-00 |
from US $26.64 |
||
|
29
|
29
95602-06200-00 Nut, U Flange |
95602-06200-00 |
from US $1.56 |
||
| replacement | |||||
|
29
|
29
95604-06200-00 Nut, U Flange |
95604-06200-00 |
from US $1.56 |
||
|
30
|
30
8GL-18115-00-00 Rod, Shift |
8GL-18115-00-00 |
from US $2.41 |
||
|
31
|
31
90170-06289-00 Nut (Counter Clockwise) |
90170-06289-00 |
from US $1.70 |
||
| replacement | |||||
|
31
|
31
901-70062-28-00 Nut (Counter Clockwise) |
901-70062-28-00 |
from US $1.70 |
||
|
32
|
32
95302-06600-00 Nut, Hexagon |
95302-06600-00 |
US $1.07 |
||
| replacement | |||||
|
32
|
32
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
33
|
33
90105-08179-00 Bolt, Flange |
90105-08179-00 |
from US $2.41 |
||
|
34
|
34
8ES-47613-00-00 Holder |
8ES-47613-00-00 |
from US $17.43 |
||
|
35
|
35
93311-32685-00 Bearing |
93311-32685-00 |
from US $40.34 |
||
|
36
|
36
90387-22005-00 Collar |
90387-22005-00 |
from US $12.89 |
||
|
37
|
37
99009-26400-00 Circlip |
99009-26400-00 |
from US $1.56 |
||
|
38
|
38
90201-266P2-00 Washer, Plate |
90201-266P2-00 |
from US $3.69 |
||
|
39
|
39
8GL-47575-00-00 Plug |
8GL-47575-00-00 |
from US $3.26 |
||
|
40
|
40
90387-30011-00 Collar |
90387-30011-00 |
from US $10.48 |
||
|
41
|
41
90208-30001-00 Washer, Conical Spring |
90208-30001-00 |
from US $5.24 |
||
|
42
|
42
8FA-17682-10-00 Sprocket, Chain Drive (21T) |
8FA-17682-10-00 |
from US $41.17 |
||
|
43
|
43
90208-26002-00 Washer, Conical Spring |
90208-26002-00 |
from US $4.39 |
||
|
44
|
44
90387-26007-00 Collar |
90387-26007-00 |
from US $10.34 |
||
|
45
|
45
948-90090-68-00 Chain (68L) |
948-90090-68-00 |
from US $133.19 |
||
|
46
|
46
8FB-47587-90-00 Sprocket, Chain Driven (39T) |
8FB-47587-90-00 |
from US $129.04 |
||
|
47
|
47
933-17331-79-00 Bearing |
933-17331-79-00 |
from US $27.49 |
||
|
48
|
48
90387-2008G-00 Collar |
90387-2008G-00 |
from US $14.31 |
||
|
49
|
49
90201-320S3-00 Washer, Plate |
90201-320S3-00 |
from US $5.81 |
||
|
50
|
50
90105-10307-00 Bolt, Flange |
90105-10307-00 |
from US $6.94 |
||
| replacement | |||||
|
50
|
50
901-05103-69-00 Bolt, Flange |
901-05103-69-00 |
from US $5.44 |
||
|
51
|
51
93210-25642-00 O-Ring |
93210-25642-00 |
from US $2.55 |
||
|
52
|
52
90387-25018-00 Collar |
90387-25018-00 |
from US $27.63 |
||
|
53
|
53
901-13060-64-00
Bolt, Set
|
901-13060-64-00 |
— | ||
| replacement | |||||
|
53
|
53
901-13060-06-00 Bolt, Set |
901-13060-06-00 |
from US $4.39 |
||
|
54
|
54
8CW-1761A-00-00 Shaft 1 |
8CW-1761A-00-00 |
from US $34 |
||
|
55
|
55
8CW-47591-00-00 Plate |
8CW-47591-00-00 |
from US $13.86 |
||
|
56
|
56
90105-060A6-00 Bolt, Flange |
90105-060A6-00 |
from US $1.07 |
||
| replacement | |||||
|
56
|
56
95817-06016-00 Bolt, Flange |
95817-06016-00 |
from US $1.07 |
||
|
57
|
57
8FB-17692-00-00 Sprocket, Drive (18T) |
8FB-17692-00-00 |
from US $74.88 |
||
|
58
|
58
933-17215-78-00 Bearing |
933-17215-78-00 |
from US $26.35 |
||
|
59
|
59
90501-060A1-00 Spring, Compression |
90501-060A1-00 |
from US $1.84 |
||
| replacement | |||||
|
59
|
59
90501-06022-00 Spring, Compression |
90501-06022-00 |
from US $1.84 |
||
|
60
|
60
8CW-17143-00-00 Reverse Gear Sub-Assembly 1 |
8CW-17143-00-00 |
from US $119.92 |
||
| replacement | |||||
|
60
|
60
8CW-W1714-00-00 Gear, Reverse Pinion 1 (18T) |
8CW-W1714-00-00 |
from US $100.86 |
||
|
61
|
61
933-17215-78-00 Bearing |
933-17215-78-00 |
from US $26.35 |
||
|
62
|
62
90201-16245-00 Washer, Plate |
90201-16245-00 |
from US $2.55 |
||
|
63
|
63
90105-060A6-00 Bolt, Flange |
90105-060A6-00 |
from US $1.07 |
||
| replacement | |||||
|
63
|
63
95817-06016-00 Bolt, Flange |
95817-06016-00 |
from US $1.07 |
||
|
64
|
64
90210-06006-00 Washer, Seal |
90210-06006-00 |
from US $1.98 |
||
|
65
|
65
8CW-47571-00-00 Journal 1 |
8CW-47571-00-00 |
from US $134.84 |
||
|
66
|
66
8CW-17243-00-00 Gear, Reverse Wheel 1 (50T) |
8CW-17243-00-00 |
from US $212.77 |
||
|
67
|
67
8CW-17492-00-00 Dog, Transmission Shift |
8CW-17492-00-00 |
from US $105 |
||
|
68
|
68
90501-066J5-00 Spring, Compression |
90501-066J5-00 |
from US $1.98 |
||
|
69
|
69
93440-39175-00 Circlip |
93440-39175-00 |
from US $4.53 |
||
|
70
|
70
90501-260A0-00 Spring, Compression |
90501-260A0-00 |
from US $2.55 |
||
|
71
|
71
8GL-48566-00-00 Collar |
8GL-48566-00-00 |
from US $55.54 |
||
|
72
|
72
95602-06200-00 Nut, U Flange |
95602-06200-00 |
from US $1.56 |
||
| replacement | |||||
|
72
|
72
95604-06200-00 Nut, U Flange |
95604-06200-00 |
from US $1.56 |
||
