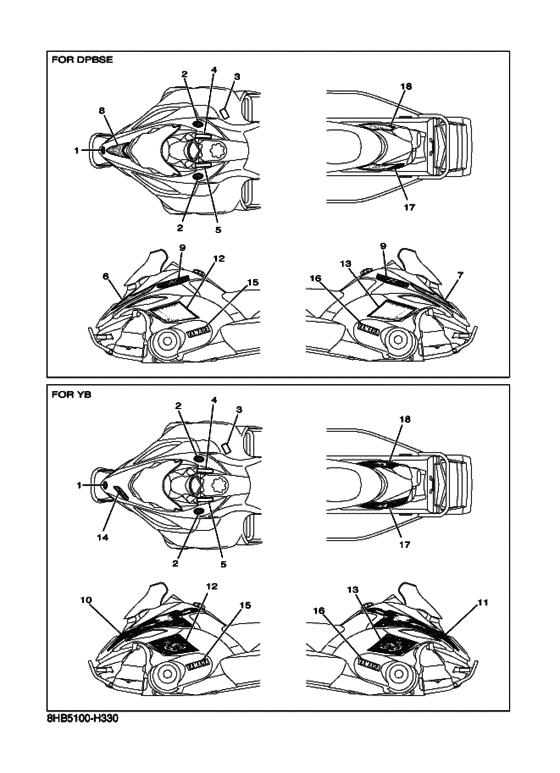

Emblem Diagram Yamaha FX10/ RFX10 FX Nytro R-TX ER
- Model code
- 8HB5
- Engine Capacity
- 1049
- Year
- 2009
- Sales region
- Europe (020)
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Color Variant
- A
- Power
- 130 hp
- Model
- FX Nytro R-TX ER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8GC-2836B-01-00 Tuning Fork Mark |
8GC-2836B-01-00 |
from US $20.79 |
||
| replacement | |||||
|
1
|
1
8GC-2836B-02-00 Tuning Fork Mark |
8GC-2836B-02-00 |
from US $20.79 |
||
|
2
|
2
5YU-2411B-01-00 Emblem |
5YU-2411B-01-00 |
from US $29.02 |
||
|
3
|
3
8GL-77763-E1-00 Label, Warning 3 |
8GL-77763-E1-00 |
US $3.02 |
||
|
4
|
4
8ET-2815K-00-00 Label, Notice Windshield 1 |
8ET-2815K-00-00 |
from US $2.24 |
||
|
5
|
5
8ET-2815K-10-00 Label, Notice Windshield 1 |
8ET-2815K-10-00 |
from US $2.24 |
||
|
6
|
6
8GL-7711F-10-00 Graphic 6FOR DPBSE |
8GL-7711F-10-00 |
from US $13.76 |
||
|
7
|
7
8GL-7711G-10-00 Graphic 7FOR DPBSE |
8GL-7711G-10-00 |
from US $13.76 |
||
|
8
|
8
8GL-7711C-10-00 Graphic 3FOR DPBSE |
8GL-7711C-10-00 |
from US $17.80 |
||
|
9
|
9
8HB-77143-00-00 Emblem 3FOR DPBSE |
8HB-77143-00-00 |
US $17.86 |
||
|
12
|
12
8GL-7711D-30-00 Graphic 4UR FOR DPBSE |
8GL-7711D-30-00 |
US $43.07 |
||
|
13
|
13
8GL-7711E-30-00 Graphic 5UR FOR DPBSE |
8GL-7711E-30-00 |
from US $54.34 |
||
|
15
|
15
8GL-2153A-00-00 Emblem, YamahaUR FOR DPBSE |
8GL-2153A-00-00 |
from US $9.42 |
||
|
16
|
16
8GL-2153A-00-00 Emblem, YamahaUR FOR DPBSE |
8GL-2153A-00-00 |
from US $9.42 |
||
|
17
|
17
8GL-7755B-10-00 Graphic 1UR FOR DPBSE |
8GL-7755B-10-00 |
from US $12.87 |
||
|
18
|
18
8GL-7755C-10-00 Graphic 2UR FOR DPBSE |
8GL-7755C-10-00 |
US $19.64 |
||
