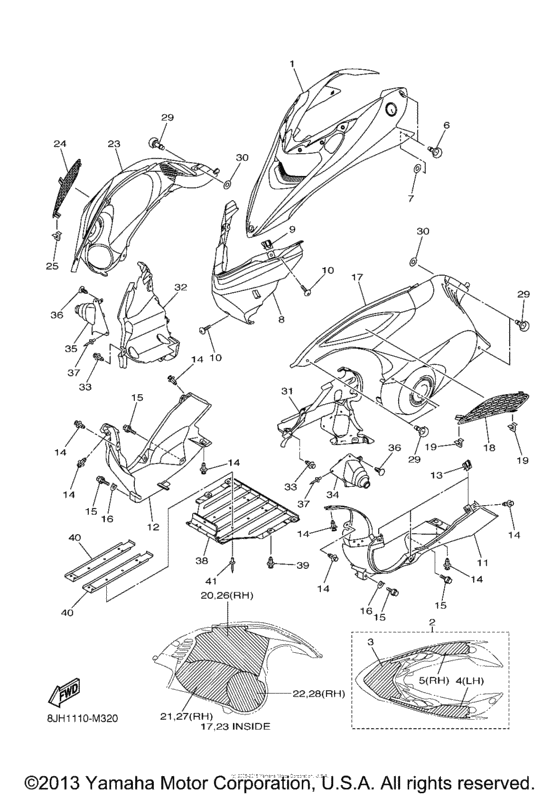

Shroud Diagram Yamaha FX10/ RFX10 FX Nytro
- Model code
- 8JH2
- Engine Capacity
- 1049
- Year
- 2014
- Sales region
- USA
- Power
- 130 hp
- Model
- FX Nytro
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8GL-77111-40-00 Shroud |
8GL-77111-40-00 |
from US $104.59 |
||
|
2
|
2
8GL-W7726-00-00 Lining Set |
8GL-W7726-00-00 |
from US $35.51 |
||
|
3
|
3
8GL-77271-00-00 Damper, Noise 1111 |
8GL-77271-00-00 |
from US $11.48 |
||
|
4
|
4
8GL-77272-00-00 Damper, Noise 1212 |
8GL-77272-00-00 |
from US $12.47 |
||
|
5
|
5
8GL-77273-00-00 Damper, Noise 1313 |
8GL-77273-00-00 |
from US $12.47 |
||
|
6
|
6
8HG-28386-00-00 Head |
8HG-28386-00-00 |
from US $18.20 |
||
|
7
|
7
8HR-21757-00-00 Washer, Special 1 |
8HR-21757-00-00 |
from US $1.42 |
||
|
8
|
8
8GL-21912-00-00 Panel, Sub Frame 1 |
8GL-21912-00-00 |
from US $45.59 |
||
|
9
|
9
4XV-2177L-01-00 Plate, Spring |
4XV-2177L-01-00 |
from US $7.23 |
||
|
10
|
10
90149-06263-00 Screw(2Xf) |
90149-06263-00 |
from US $1.56 |
||
|
11
|
11
8GL-21982-00-00 Hood 1 |
8GL-21982-00-00 |
from US $66.87 |
||
|
12
|
12
8GL-21983-00-00 Hood 2 |
8GL-21983-00-00 |
from US $66.87 |
||
|
13
|
13
4XV-2177L-01-00 Plate, Spring |
4XV-2177L-01-00 |
from US $7.23 |
||
|
14
|
14
902-69080-06-00 Rivet |
902-69080-06-00 |
from US $2.55 |
||
|
15
|
15
90109-06174-00 Bolt |
90109-06174-00 |
from US $1.98 |
||
|
16
|
16
8GL-77185-00-00 Plate 1 |
8GL-77185-00-00 |
from US $3.54 |
||
|
17
|
17
8GL-2197H-00-00 Hood 3 |
8GL-2197H-00-00 |
from US $88.28 |
||
|
18
|
18
8GL-77109-01-00 Louver 5 |
8GL-77109-01-00 |
from US $47.53 |
||
|
19
|
19
90468-06001-00 Clip |
90468-06001-00 |
from US $2.69 |
||
|
20
|
20
8GL-77274-00-00 Damper, Noise 1414 |
8GL-77274-00-00 |
from US $22.53 |
||
|
21
|
21
8GL-77275-00-00 Damper, Noise 1515 |
8GL-77275-00-00 |
from US $12.18 |
||
|
22
|
22
8GL-77276-00-00 Damper, Noise 1616 |
8GL-77276-00-00 |
from US $7.79 |
||
|
23
|
23
8GL-2198H-00-00 Hood 4 |
8GL-2198H-00-00 |
from US $88.28 |
||
|
24
|
24
8GL-77108-00-00 Louver 6 |
8GL-77108-00-00 |
from US $47.53 |
||
|
25
|
25
90468-06001-00 Clip |
90468-06001-00 |
from US $2.69 |
||
|
26
|
26
8GL-77277-00-00 Damper, Noise 1717 |
8GL-77277-00-00 |
from US $22.53 |
||
|
27
|
27
8GL-77278-00-00 Damper, Noise 1818 |
8GL-77278-00-00 |
from US $12.18 |
||
|
28
|
28
8GL-77279-00-00 Damper, Noise 1919 |
8GL-77279-00-00 |
from US $7.79 |
||
|
29
|
29
8HG-28386-00-00 Head |
8HG-28386-00-00 |
from US $18.20 |
||
|
30
|
30
8HR-21757-00-00 Washer, Special 1 |
8HR-21757-00-00 |
from US $1.42 |
||
|
31
|
31
8GL-2196A-00-00 Frame Under 1 |
8GL-2196A-00-00 |
from US $45.45 |
||
|
32
|
32
8GL-2196E-00-00 Frame, Under 2 |
8GL-2196E-00-00 |
from US $45.45 |
||
|
33
|
33
902-69080-06-00 Rivet |
902-69080-06-00 |
from US $2.55 |
||
|
34
|
34
8GL-2198F-00-00 Cover 1 |
8GL-2198F-00-00 |
from US $19.98 |
||
|
35
|
35
8GL-2198J-00-00 Cover 3 |
8GL-2198J-00-00 |
from US $19.98 |
||
|
36
|
36
90269-05003-00 Rivet |
90269-05003-00 |
from US $1.98 |
||
|
37
|
37
90267-48024-00 Rivet, Blind5X23.6 BLACK |
90267-48024-00 |
from US $1.98 |
||
|
38
|
38
8GL-2193A-00-00 Protector |
8GL-2193A-00-00 |
from US $32.16 |
||
|
39
|
39
902-69080-06-00 Rivet |
902-69080-06-00 |
from US $2.55 |
||
|
40
|
40
8GL-21997-00-00 Patch 1010 |
8GL-21997-00-00 |
from US $15.44 |
||
|
41
|
41
90267-48018-00 Rivet, Blind (4.8X18.6 Black)4.8X18.6 BLACK |
90267-48018-00 |
from US $1.28 |
