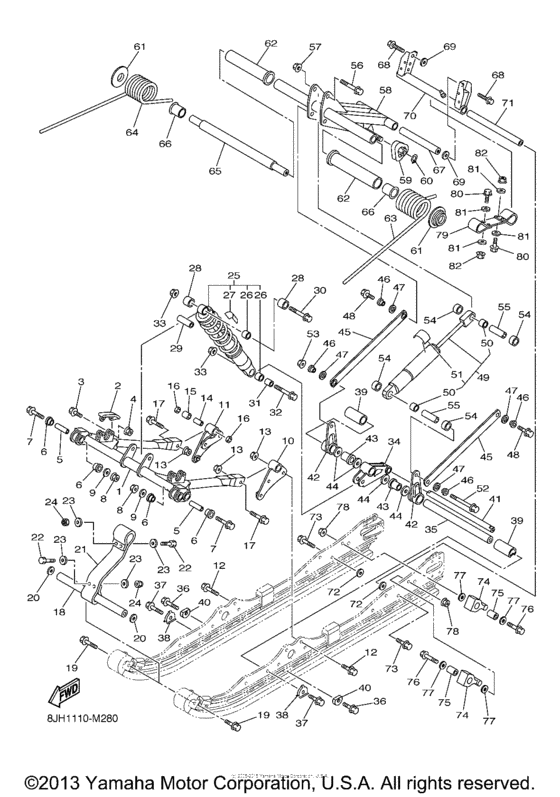

Track suspension (2) Diagram Yamaha FX10/ RFX10 FX Nytro
- Model code
- 8JH2
- Engine Capacity
- 1049
- Year
- 2014
- Sales region
- USA
- Power
- 130 hp
- Model
- FX Nytro
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8GL-47331-00-00 Arm, Pivot 1 |
8GL-47331-00-00 |
from US $233.49 |
||
|
2
|
2
8F3-47422-10-00 Runner, Sliding 2 |
8F3-47422-10-00 |
from US $40.20 |
||
|
3
|
3
90105-06164-00 Bolt, Flange |
90105-06164-00 |
from US $1.13 |
||
| replacement | |||||
|
3
|
3
95817-06020-00 Bolt, Flange |
95817-06020-00 |
from US $1.13 |
||
|
4
|
4
95602-06200-00 Nut, U Flange |
95602-06200-00 |
from US $1.56 |
||
| replacement | |||||
|
4
|
4
95604-06200-00 Nut, U Flange |
95604-06200-00 |
from US $1.56 |
||
|
5
|
5
8GL-47465-00-00 Shaft 1 |
8GL-47465-00-00 |
from US $7.51 |
||
|
6
|
6
90381-18068-00 Bush, Solid |
90381-18068-00 |
from US $21.82 |
||
|
7
|
7
90105-10135-00 Bolt, Flange |
90105-10135-00 |
from US $4.11 |
||
|
8
|
8
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
|
9
|
9
90201-10046-00 Washer, Plate |
90201-10046-00 |
from US $3.54 |
||
|
10
|
10
8GL-47415-00-00 Bracket 1 |
8GL-47415-00-00 |
from US $49.74 |
||
|
11
|
11
8GL-47418-00-00 Bracket 4 |
8GL-47418-00-00 |
from US $49.74 |
||
|
12
|
12
95812-10025-00 Bolt, Flange |
95812-10025-00 |
US $1.28 |
||
| replacement | |||||
|
12
|
12
95817-10025-00 Bolt, Flange |
95817-10025-00 |
from US $1.07 |
||
|
13
|
13
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
|
14
|
14
90387-1012A-00 Collar |
90387-1012A-00 |
from US $7.79 |
||
|
15
|
15
93315-31758-00 Bearing |
93315-31758-00 |
from US $14.22 |
||
|
16
|
16
931-09170-71-00 Oil Seal |
931-09170-71-00 |
from US $2.98 |
||
|
17
|
17
95812-10045-00 Bolt, Flange |
95812-10045-00 |
from US $2.55 |
||
| replacement | |||||
|
17
|
17
95817-10045-00 Bolt, Flange |
95817-10045-00 |
from US $2.55 |
||
|
18
|
18
8FU-47485-00-00 Shaft 3 |
8FU-47485-00-00 |
from US $27.49 |
||
|
19
|
19
90105-10237-00 Bolt, Flange |
90105-10237-00 |
from US $1.07 |
||
| replacement | |||||
|
19
|
19
958-17100-30-00 Bolt, Flange |
958-17100-30-00 |
from US $1.07 |
||
|
20
|
20
90201-10126-00 Washer, Plate |
90201-10126-00 |
from US $2.69 |
||
| replacement | |||||
|
20
|
20
90201-102G9-00 Washer, Plate (26H) |
90201-102G9-00 |
from US $2.69 |
||
|
21
|
21
8GL-47495-00-00 Stopper 1 |
8GL-47495-00-00 |
from US $53.88 |
||
|
22
|
22
97002-06025-00 Bolt |
97002-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
22
|
22
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
23
|
23
90201-06036-00 Washer, Plate |
90201-06036-00 |
from US $1.70 |
||
|
24
|
24
95702-06300-00 Nut, Nylon |
95702-06300-00 |
from US $1.56 |
||
| replacement | |||||
|
24
|
24
95707-06300-00 Nut, Nylon |
95707-06300-00 |
from US $1.56 |
||
|
25
|
25
8JH-47481-00-00 Shock Absorber 2 |
8JH-47481-00-00 |
US $520.15 |
||
|
26
|
26
90384-17N50-00 Bush, Bimetal Formed |
90384-17N50-00 |
from US $8.93 |
||
|
27
|
27
4AA-22259-70-00 Label, Warning |
4AA-22259-70-00 |
from US $6.52 |
||
| replacement | |||||
|
27
|
27
4AA-22259-60-00 Label, Warning |
4AA-22259-60-00 |
from US $6.52 |
||
|
28
|
28
8FU-47341-00-00 Spacer |
8FU-47341-00-00 |
from US $2.41 |
||
|
29
|
29
90387-10034-00 Collar |
90387-10034-00 |
from US $11.05 |
||
|
30
|
30
90105-10335-00 Bolt, Flange |
90105-10335-00 |
from US $7.65 |
||
|
31
|
31
90387-10064-00 Collar |
90387-10064-00 |
from US $8.36 |
||
|
32
|
32
95812-10045-00 Bolt, Flange |
95812-10045-00 |
from US $2.55 |
||
| replacement | |||||
|
32
|
32
95817-10045-00 Bolt, Flange |
95817-10045-00 |
from US $2.55 |
||
|
33
|
33
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
|
34
|
34
8GL-47349-00-00 Bracket, Arm Pivot |
8GL-47349-00-00 |
from US $56.23 |
||
|
35
|
35
8GL-47487-00-00 Shaft 5 |
8GL-47487-00-00 |
from US $97.68 |
||
|
36
|
36
90105-10237-00 Bolt, Flange |
90105-10237-00 |
from US $1.07 |
||
| replacement | |||||
|
36
|
36
958-17100-30-00 Bolt, Flange |
958-17100-30-00 |
from US $1.07 |
||
|
37
|
37
90105-10332-00 Bolt, Flange |
90105-10332-00 |
from US $4.96 |
||
| replacement | |||||
|
37
|
37
901-05103-34-00 Bolt, Flange |
901-05103-34-00 |
from US $3.97 |
||
|
38
|
38
8GL-47384-00-00 Washer |
8GL-47384-00-00 |
from US $7.65 |
||
|
39
|
39
90387-26010-00 Collar |
90387-26010-00 |
from US $3.12 |
||
|
40
|
40
8GL-47341-00-00 Spacer |
8GL-47341-00-00 |
from US $7.37 |
||
|
41
|
41
8GL-47486-00-00 Shaft 4 |
8GL-47486-00-00 |
from US $41.03 |
||
|
42
|
42
8GL-47416-00-00 Bracket 2 |
8GL-47416-00-00 |
from US $27.49 |
||
|
43
|
43
90386-25002-00 Bush |
90386-25002-00 |
from US $22.81 |
||
|
44
|
44
90201-256E4-00 Washer, Plate (T=1.5) |
90201-256E4-00 |
from US $7.08 |
||
|
45
|
45
8GL-47490-00-00 Relay Rod Assy |
8GL-47490-00-00 |
from US $51.67 |
||
|
46
|
46
8HR-47366-10-00 Collar 2 |
8HR-47366-10-00 |
from US $13.32 |
||
|
47
|
47
90201-16027-00 Washer, Plate |
90201-16027-00 |
from US $2.69 |
||
|
48
|
48
90105-10237-00 Bolt, Flange |
90105-10237-00 |
from US $1.07 |
||
| replacement | |||||
|
48
|
48
958-17100-30-00 Bolt, Flange |
958-17100-30-00 |
from US $1.07 |
||
|
49
|
49
8JH-47480-00-00 Shock Absorber |
8JH-47480-00-00 |
US $447.14 |
||
|
50
|
50
90384-17N50-00 Bush, Bimetal Formed |
90384-17N50-00 |
from US $8.93 |
||
|
51
|
51
4AA-22259-70-00 Label, Warning |
4AA-22259-70-00 |
from US $6.52 |
||
| replacement | |||||
|
51
|
51
4AA-22259-60-00 Label, Warning |
4AA-22259-60-00 |
from US $6.52 |
||
|
52
|
52
901-05103-75-00 Bolt, Flange |
901-05103-75-00 |
from US $9.63 |
||
|
53
|
53
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
|
54
|
54
8FU-47341-00-00 Spacer |
8FU-47341-00-00 |
from US $2.41 |
||
|
55
|
55
90387-10034-00 Collar |
90387-10034-00 |
from US $11.05 |
||
|
56
|
56
90105-10335-00 Bolt, Flange |
90105-10335-00 |
from US $7.65 |
||
|
57
|
57
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
|
58
|
58
8GL-47332-00-00 Arm, Pivot 2 |
8GL-47332-00-00 |
from US $169.94 |
||
|
59
|
59
8ES-47447-00-00 Hook 2 |
8ES-47447-00-00 |
from US $5.53 |
||
|
60
|
60
99009-14400-00 Circlip |
99009-14400-00 |
from US $2.41 |
||
|
61
|
61
8ES-47467-00-00 Plate, Guide |
8ES-47467-00-00 |
from US $9.63 |
||
|
62
|
62
8GL-47445-00-00 Protector |
8GL-47445-00-00 |
from US $6.09 |
||
|
63
|
63
8JH-47473-00-00 Spring, Rear 1 (K=1400Nmm/deg)K=1400NMM/DEG |
8JH-47473-00-00 |
US $269.78 |
||
|
64
|
64
8JH-47474-00-00 Spring, Rear 2 (K=1400Nmm/deg)K=1400NMM/DEG |
8JH-47474-00-00 |
US $269.78 |
||
|
65
|
65
8GL-47475-00-00 Shaft 2 |
8GL-47475-00-00 |
from US $72.95 |
||
|
66
|
66
903-81281-08-00 Bush, Solid |
903-81281-08-00 |
from US $6.23 |
||
|
67
|
67
8GC-47488-00-00 Shaft 6 |
8GC-47488-00-00 |
from US $29.89 |
||
|
68
|
68
90105-10237-00 Bolt, Flange |
90105-10237-00 |
from US $1.07 |
||
| replacement | |||||
|
68
|
68
958-17100-30-00 Bolt, Flange |
958-17100-30-00 |
from US $1.07 |
||
|
69
|
69
90201-19008-00 Washer, Plate |
90201-19008-00 |
from US $2.83 |
||
|
70
|
70
8GC-47417-10-00 Bracket 3 |
8GC-47417-10-00 |
from US $70.74 |
||
|
71
|
71
8FU-47485-00-00 Shaft 3 |
8FU-47485-00-00 |
from US $27.49 |
||
|
72
|
72
902-01101-36-00 Washer, Plate |
902-01101-36-00 |
from US $2.13 |
||
|
73
|
73
90105-10237-00 Bolt, Flange |
90105-10237-00 |
from US $1.07 |
||
| replacement | |||||
|
73
|
73
958-17100-30-00 Bolt, Flange |
958-17100-30-00 |
from US $1.07 |
||
|
74
|
74
8JH-47496-00-00 Stopper 2 |
8JH-47496-00-00 |
from US $6.52 |
||
|
75
|
75
90387-105G5-00 Collar (8U7) |
90387-105G5-00 |
from US $1.42 |
||
|
76
|
76
97012-10050-00 Bolt |
97012-10050-00 |
from US $3.54 |
||
| replacement | |||||
|
76
|
76
97017-10050-00 Bolt |
97017-10050-00 |
from US $2.94 |
||
|
77
|
77
90201-10051-00 Washer, Plate |
90201-10051-00 |
from US $2.55 |
||
|
78
|
78
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
|
79
|
79
8GL-47496-10-00 Stopper 2 |
8GL-47496-10-00 |
from US $55.40 |
||
|
80
|
80
97002-06025-00 Bolt |
97002-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
80
|
80
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
81
|
81
90201-06036-00 Washer, Plate |
90201-06036-00 |
from US $1.70 |
||
|
82
|
82
95702-06300-00 Nut, Nylon |
95702-06300-00 |
from US $1.56 |
||
| replacement | |||||
|
82
|
82
95707-06300-00 Nut, Nylon |
95707-06300-00 |
from US $1.56 |
||
