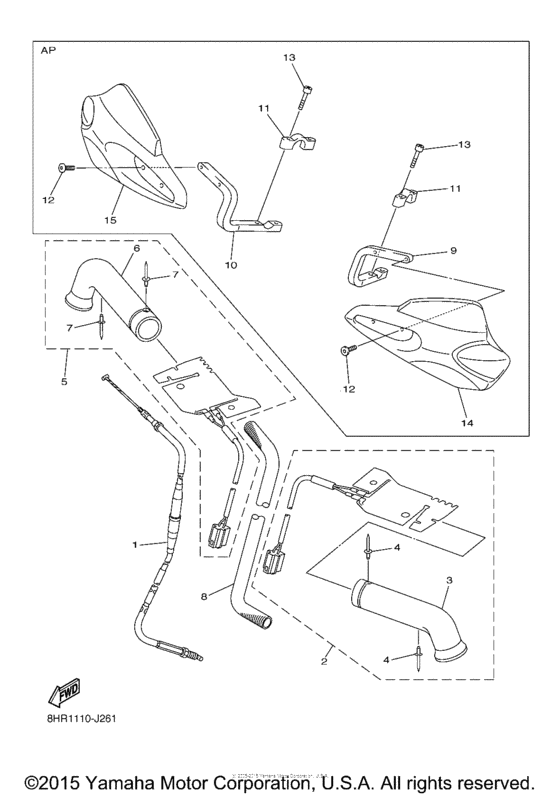

Control cable Diagram Yamaha FX10/ RFX10 FX Nytro M-TX 153 SE
- Model code
- 8HU1
- Engine Capacity
- 1049
- Year
- 2010
- Sales region
- USA
- Power
- 130 hp
- Model
- FX Nytro M-TX SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8HA-26311-00-00 Cable, Throttle 1 |
8HA-26311-00-00 |
from US $52.64 |
||
|
2
|
2
999-99041-72-00 Grip,warmer Set |
999-99041-72-00 |
from US $81.51 |
||
|
3
|
3
8HR-26241-01-00 Grip |
8HR-26241-01-00 |
from US $13.88 |
||
|
4
|
4
90267-48014-00 Rivet, Blind4.8X15.1 BLACK |
90267-48014-00 |
from US $1.70 |
||
|
5
|
5
999-99041-73-00 Grip,warmer Set |
999-99041-73-00 |
from US $81.51 |
||
|
6
|
6
8HR-26241-01-00 Grip |
8HR-26241-01-00 |
from US $13.88 |
||
|
7
|
7
90267-48014-00 Rivet, Blind4.8X15.1 BLACK |
90267-48014-00 |
from US $1.70 |
||
|
8
|
8
8HA-82351-00-00 Tube, Cord |
8HA-82351-00-00 |
from US $4.96 |
||
|
9
|
9
8GL-2612L-01-00 Bracket 3AP |
8GL-2612L-01-00 |
from US $33.86 |
||
|
10
|
10
8GL-2612M-01-00 Bracket 4AP |
8GL-2612M-01-00 |
from US $33.86 |
||
|
11
|
11
8GL-2612K-00-00 Bracket 2AP |
8GL-2612K-00-00 |
from US $10.63 |
||
|
12
|
12
90109-06234-00 BoltAP |
90109-06234-00 |
from US $1.70 |
||
|
13
|
13
91312-05030-00 BoltAP |
91312-05030-00 |
from US $1.42 |
||
|
14
|
14
8GL-26141-00-00 Guard, Brush 1AP |
8GL-26141-00-00 |
from US $19.98 |
||
| replacement | |||||
|
14
|
14
8GL-F6141-00-00 Guard, Brush 1AP |
8GL-F6141-00-00 |
US $11.50 |
||
|
15
|
15
8GL-26142-00-00 Guard, Brush 2AP |
8GL-26142-00-00 |
from US $19.98 |
||
| replacement | |||||
|
15
|
15
8GL-F6142-00-00 Guard, Brush 2AP |
8GL-F6142-00-00 |
US $11.99 |
||
