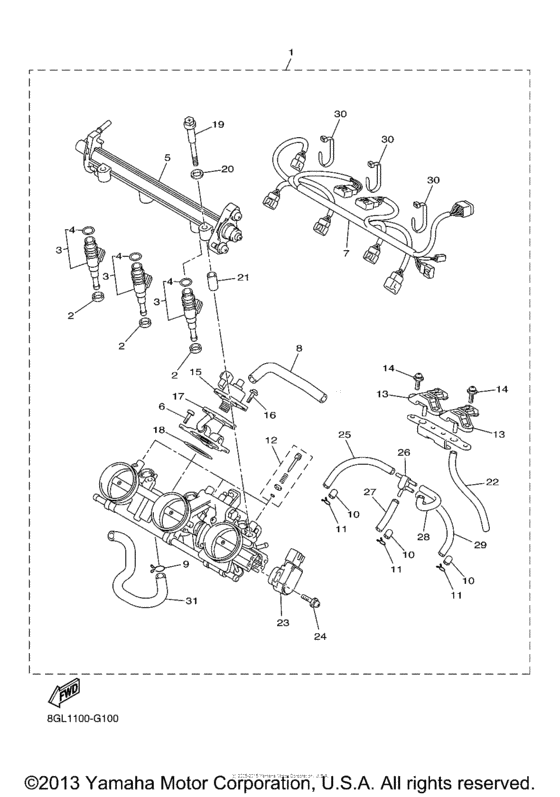

Intake (2) Diagram Yamaha FX10/ RFX10 FX Nytro M-TX
- Model code
- 8HA5
- Engine Capacity
- 1049
- Year
- 2008
- Sales region
- USA
- Power
- 130 hp
- Model
- FX Nytro M-TX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8GL-13750-00-00 Throttle Body Assy |
8GL-13750-00-00 |
from US $1,425.60 |
||
| replacement | |||||
|
1
|
1
8GL-13750-10-00 Throttle Body Assy |
8GL-13750-10-00 |
from US $1,425.60 |
||
|
2
|
2
8FP-13556-00-00 Rubber, Injector |
8FP-13556-00-00 |
from US $4.53 |
||
|
3
|
3
8GC-13761-00-00 Injector |
8GC-13761-00-00 |
from US $125.45 |
||
|
4
|
4
8GC-13769-00-00 O-Ring |
8GC-13769-00-00 |
from US $7.93 |
||
|
5
|
5
8GL-13930-00-00 Pipe Inlet Assembly |
8GL-13930-00-00 |
from US $150.59 |
||
|
6
|
6
8GL-14565-00-00 Screw |
8GL-14565-00-00 |
from US $3.40 |
||
|
7
|
7
8GL-82386-00-00 Extension, Wire Harness |
8GL-82386-00-00 |
from US $95.19 |
||
| replacement | |||||
|
7
|
7
8GL-82386-01-00 Extension, Wire Harness |
8GL-82386-01-00 |
from US $95.19 |
||
|
8
|
8
8GL-13895-00-00 Hose, Air |
8GL-13895-00-00 |
from US $13.60 |
||
|
9
|
9
90467-150A2-00 Clip |
90467-150A2-00 |
from US $1.56 |
||
|
10
|
10
895-14169-00-00 Cap |
895-14169-00-00 |
from US $4.11 |
||
|
11
|
11
8A7-14139-00-00 Clip, Pipe |
8A7-14139-00-00 |
from US $3.40 |
||
|
12
|
12
8GL-14503-00-00 Adjust Screw Set |
8GL-14503-00-00 |
from US $9.63 |
||
|
13
|
13
2C0-82380-10-00 Sensor, Pressure |
2C0-82380-10-00 |
from US $150.59 |
||
|
14
|
14
8GL-14592-00-00 Screw |
8GL-14592-00-00 |
from US $1.98 |
||
|
15
|
15
8GL-13713-00-00 Motor Assy |
8GL-13713-00-00 |
from US $145.07 |
||
|
16
|
16
8GL-14216-00-00 Screw |
8GL-14216-00-00 |
from US $1.98 |
||
|
17
|
17
8GL-14960-00-00 Body Assy |
8GL-14960-00-00 |
from US $121.44 |
||
|
18
|
18
8GL-13769-00-00 O-Ring |
8GL-13769-00-00 |
from US $7.79 |
||
|
19
|
19
8GL-13573-00-00 Bolt 1 |
8GL-13573-00-00 |
from US $7.23 |
||
|
20
|
20
8GL-13571-00-00 Washer |
8GL-13571-00-00 |
from US $1.70 |
||
|
21
|
21
8GL-14534-00-00 Collar |
8GL-14534-00-00 |
from US $4.39 |
||
|
22
|
22
5PW-14349-00-00 Pipe |
5PW-14349-00-00 |
from US $6.94 |
||
|
23
|
23
8GL-85885-00-00 Throttle Sensor Assy |
8GL-85885-00-00 |
from US $67.01 |
||
| replacement | |||||
|
23
|
23
8GL-85885-01-00 THROTTLE SENSOR ASSY |
8GL-85885-01-00 |
from US $67.01 |
||
|
24
|
24
8CC-14216-10-00 Screw |
8CC-14216-10-00 |
from US $6.09 |
||
|
25
|
25
5JW-14987-00-00 Hose |
5JW-14987-00-00 |
from US $9.07 |
||
|
26
|
26
5PW-1410F-00-00 Connector |
5PW-1410F-00-00 |
from US $13.46 |
||
|
27
|
27
8FP-14349-30-00 Pipe |
8FP-14349-30-00 |
from US $2.41 |
||
|
28
|
28
8GL-13892-00-00 Hose, Air 2 |
8GL-13892-00-00 |
from US $20.40 |
||
|
29
|
29
8GL-13893-00-00 Hose, Air 3 |
8GL-13893-00-00 |
from US $3.97 |
||
|
30
|
30
4KM-14137-00-00 Clip |
4KM-14137-00-00 |
from US $7.69 |
||
|
31
|
31
8GL-13545-00-00 Hose 1 |
8GL-13545-00-00 |
from US $15.16 |
||
