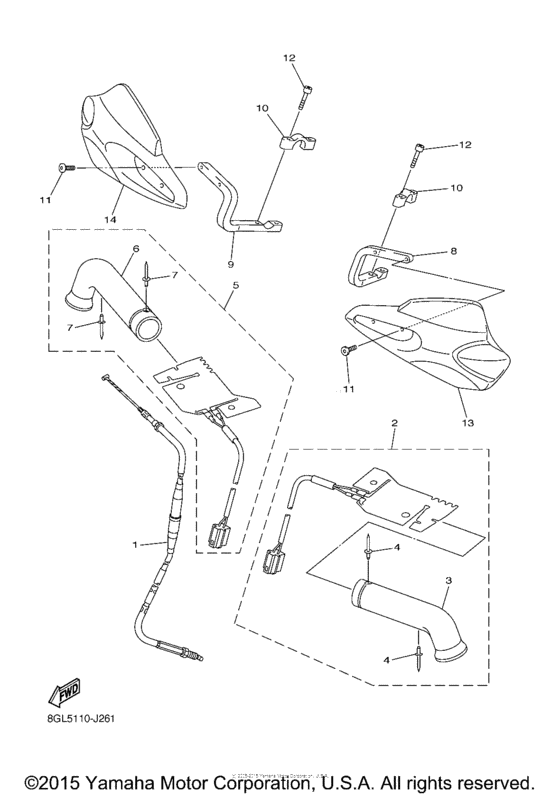

Control cable Diagram Yamaha FX10/ RFX10 FX Nytro R-TX SE
- Model code
- 8HK5
- Engine Capacity
- 1049
- Year
- 2011
- Sales region
- USA
- Power
- 130 hp
- Model
- FX Nytro R-TX SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8GL-26311-00-00 Cable, Throttle 1 |
8GL-26311-00-00 |
from US $54.99 |
||
|
2
|
2
999-99041-70-00 Grip, Warmer Set |
999-99041-70-00 |
from US $81.51 |
||
|
3
|
3
8HR-26241-01-00 Grip |
8HR-26241-01-00 |
from US $13.88 |
||
|
4
|
4
90267-48014-00 Rivet, Blind4.8X15.1 BLACK |
90267-48014-00 |
from US $1.70 |
||
|
5
|
5
999-99041-71-00 Grip, Warmer Set |
999-99041-71-00 |
from US $81.51 |
||
|
6
|
6
8HR-26241-01-00 Grip |
8HR-26241-01-00 |
from US $13.88 |
||
|
7
|
7
90267-48014-00 Rivet, Blind4.8X15.1 BLACK |
90267-48014-00 |
from US $1.70 |
||
|
8
|
8
8GL-2612L-01-00 Bracket 3 |
8GL-2612L-01-00 |
from US $33.86 |
||
|
9
|
9
8GL-2612M-01-00 Bracket 4 |
8GL-2612M-01-00 |
from US $33.86 |
||
|
10
|
10
8GL-2612K-00-00 Bracket 2 |
8GL-2612K-00-00 |
from US $10.63 |
||
|
11
|
11
90109-065F3-00 Bolt |
90109-065F3-00 |
from US $1.84 |
||
|
12
|
12
91312-05030-00 Bolt |
91312-05030-00 |
from US $1.42 |
||
|
13
|
13
8GL-F6141-40-00 Guard, Brush 1UR FOR DPBSE |
8GL-F6141-40-00 |
US $10.13 |
||
|
13
|
13
8GL-F6141-30-00 Guard, Brush 1UR FOR YB |
8GL-F6141-30-00 |
from US $10.51 |
||
|
14
|
14
8GL-F6142-30-00 Guard, Brush 2UR FOR YB |
8GL-F6142-30-00 |
from US $9.49 |
||
|
14
|
14
8GL-F6142-40-00 Guard, Brush 2UR FOR DPBSE |
8GL-F6142-40-00 |
US $10.69 |
