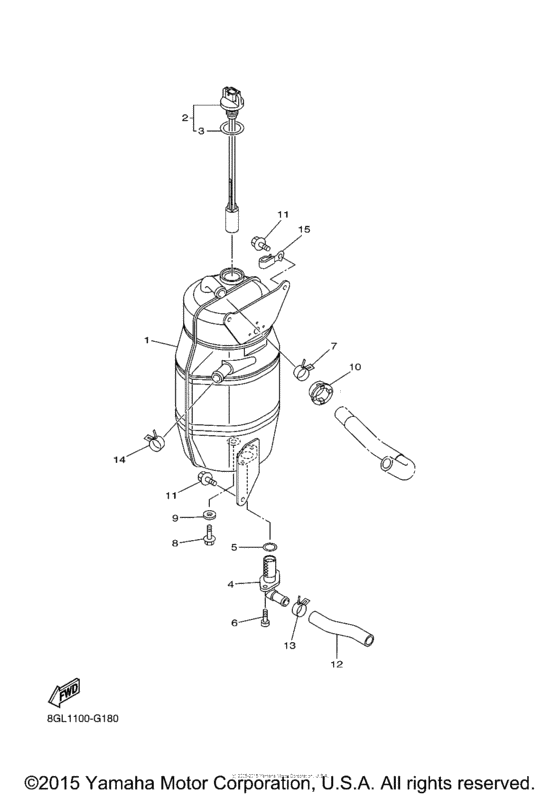

Oil tank Diagram Yamaha FX10/ RFX10 FX Nytro R-TX SE
- Model code
- 8HK5
- Engine Capacity
- 1049
- Year
- 2011
- Sales region
- USA
- Power
- 130 hp
- Model
- FX Nytro R-TX SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8GL-21751-01-00 Tank, Oil |
8GL-21751-01-00 |
from US $355.07 |
||
|
2
|
2
8GL-85720-00-00 Oil Level Gauge Assy |
8GL-85720-00-00 |
from US $31.74 |
||
|
3
|
3
8FP-85075-00-00 O-Ring |
8FP-85075-00-00 |
from US $4.82 |
||
|
4
|
4
8GL-13406-00-00 Oil Pipe Comp. 2 |
8GL-13406-00-00 |
from US $59.82 |
||
|
5
|
5
93210-24001-00 O-Ring |
93210-24001-00 |
from US $1.98 |
||
|
6
|
6
91312-06016-00 Bolt |
91312-06016-00 |
from US $1.07 |
||
| replacement | |||||
|
6
|
6
91317-06016-00 Bolt |
91317-06016-00 |
from US $1.04 |
||
|
7
|
7
90467-22097-00 Clip(34X) |
90467-22097-00 |
from US $1.70 |
||
|
8
|
8
95802-08012-00 Bolt, Flange |
95802-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
8
|
8
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
9
|
9
90430-08204-00 Gasket(3Aj) |
90430-08204-00 |
from US $1.34 |
||
|
10
|
10
90480-27001-00 Grommet |
90480-27001-00 |
from US $1.84 |
||
|
11
|
11
95812-06016-00 Bolt, Flange |
95812-06016-00 |
from US $1.07 |
||
| replacement | |||||
|
11
|
11
95817-06016-00 Bolt, Flange |
95817-06016-00 |
from US $1.07 |
||
|
12
|
12
8GL-13465-00-00 Hose, Oil 2 |
8GL-13465-00-00 |
from US $4.82 |
||
|
13
|
13
90467-22097-00 Clip(34X) |
90467-22097-00 |
from US $1.70 |
||
|
14
|
14
90467-22097-00 Clip(34X) |
90467-22097-00 |
from US $1.70 |
||
|
15
|
15
90465-08125-00 Clamp |
90465-08125-00 |
from US $2.41 |
||
| replacement | |||||
|
15
|
15
90465-06376-00 Clamp |
90465-06376-00 |
from US $2.41 |
||
