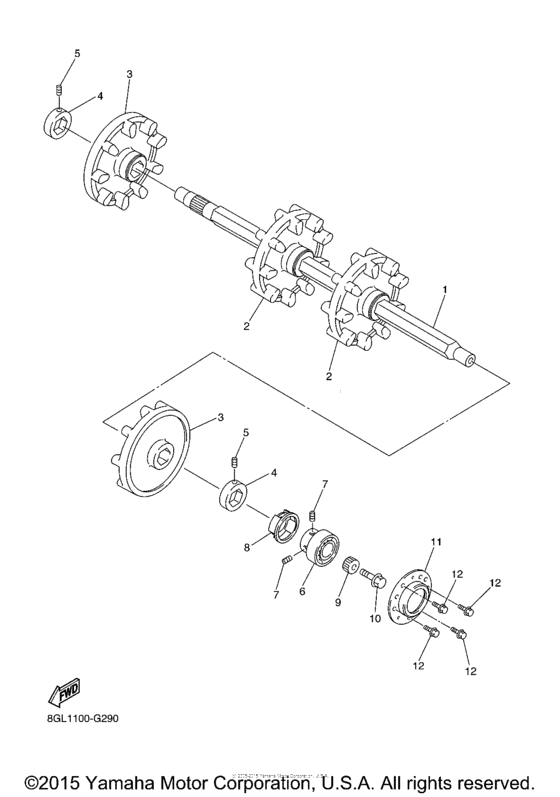

Track drive (1) Diagram Yamaha FX10/ RFX10 FX Nytro X-TX
- Model code
- 8HL5
- Engine Capacity
- 1049
- Year
- 2011
- Sales region
- USA
- Power
- 130 hp
- Model
- FX Nytro X-TX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8GL-47511-20-00 Axle, Front |
8GL-47511-20-00 |
from US $201.71 |
||
|
2
|
2
8BW-47531-00-00 Wheel, Sprocket 1 |
8BW-47531-00-00 |
from US $108.50 |
||
| replacement | |||||
|
2
|
2
8CM-47531-10-00 Wheel, Sprocket 1 |
8CM-47531-10-00 |
from US $119.92 |
||
|
3
|
3
8BW-47532-10-00 Wheel, Sprocket 2 |
8BW-47532-10-00 |
from US $110.39 |
||
|
4
|
4
8BW-47526-00-00 Collar |
8BW-47526-00-00 |
from US $33.01 |
||
|
5
|
5
90113-06039-00 Bolt, Set (8K2) |
90113-06039-00 |
from US $1.84 |
||
|
6
|
6
933-06205-89-00 Bearing |
933-06205-89-00 |
from US $40.48 |
||
|
7
|
7
901-13060-64-00
Bolt, Set
|
901-13060-64-00 |
— | ||
| replacement | |||||
|
7
|
7
901-13060-06-00 Bolt, Set |
901-13060-06-00 |
from US $4.39 |
||
|
8
|
8
8FN-47377-00-00 Cap |
8FN-47377-00-00 |
from US $26.37 |
||
|
9
|
9
8EK-47715-00-00 Joint |
8EK-47715-00-00 |
from US $17.28 |
||
|
10
|
10
95822-10025-00 Bolt, Flange |
95822-10025-00 |
from US $1.07 |
||
| replacement | |||||
|
10
|
10
95817-10025-00 Bolt, Flange |
95817-10025-00 |
from US $1.07 |
||
|
11
|
11
8EK-47551-00-00 Housing, Front Axle |
8EK-47551-00-00 |
from US $4.53 |
||
|
12
|
12
95822-08025-00 Bolt, Flange |
95822-08025-00 |
from US $1.07 |
||
| replacement | |||||
|
12
|
12
95817-08025-00 Bolt, Flange |
95817-08025-00 |
from US $1.07 |
||
