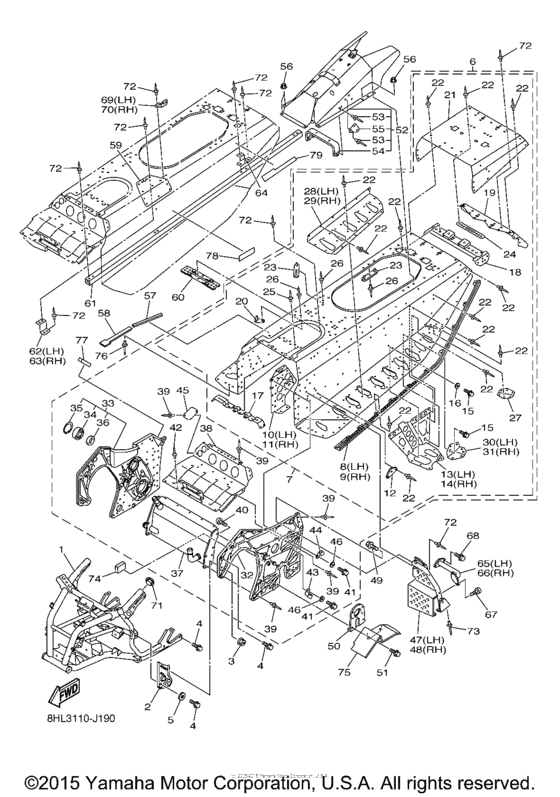

Frame Diagram Yamaha FX10/ RFX10 FX Nytro X-TX
- Model code
- 8HL3
- Engine Capacity
- 1049
- Year
- 2010
- Sales region
- USA
- Power
- 130 hp
- Model
- FX Nytro X-TX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8GL-21940-02-00 Front Frame Comp |
8GL-21940-02-00 |
from US $889.68 |
||
| replacement | |||||
|
1
|
1
8GL-21940-03-00 Front Frame Comp |
8GL-21940-03-00 |
from US $889.68 |
||
|
2
|
2
8GL-2194E-00-00 Bracket, Engine |
8GL-2194E-00-00 |
from US $46.70 |
||
|
3
|
3
90185-08054-00 Nut, Self-Locking |
90185-08054-00 |
from US $4.53 |
||
| replacements | |||||
|
3
|
3
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
3
|
3
901-85080-89-00
Nut, Self-Locking
|
901-85080-89-00 |
— | ||
|
4
|
4
95827-08016-00 Bolt, Flange |
95827-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
4
|
4
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
4
|
4
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.07 |
||
|
5
|
5
90201-086A3-00 Washer, Plate |
90201-086A3-00 |
from US $1.70 |
||
|
6
|
6
8HL-21950-01-00 Rear Frame Comp |
8HL-21950-01-00 |
from US $5,092.33 |
||
|
7
|
7
8HL-21950-09-00 Rear Frame Comp |
8HL-21950-09-00 |
from US $2,943.60 |
||
|
8
|
8
8HK-21926-00-00 Reinforcement, Footrest 1 |
8HK-21926-00-00 |
from US $197.57 |
||
|
9
|
9
8HK-21936-00-00 Reinforcement, Footrest 2 |
8HK-21936-00-00 |
from US $197.57 |
||
|
10
|
10
8HL-21943-00-00 Bracket, Main Track 1 |
8HL-21943-00-00 |
from US $97.82 |
||
|
11
|
11
8HL-21953-00-00 Bracket, Main Track 2 |
8HL-21953-00-00 |
from US $98.09 |
||
|
12
|
12
8FU-21919-00-00 Bracket, Main Track 3 |
8FU-21919-00-00 |
from US $3.83 |
||
|
13
|
13
8HL-21944-00-00 Bracket, Rr. Track Suspension |
8HL-21944-00-00 |
from US $74.88 |
||
|
14
|
14
8HL-21954-00-00 Bracket, Rr. Track Suspension |
8HL-21954-00-00 |
from US $74.88 |
||
|
15
|
15
95812-10020-00 Bolt, Flange |
95812-10020-00 |
from US $1.07 |
||
| replacement | |||||
|
15
|
15
958-17100-20-00 Bolt, Flange |
958-17100-20-00 |
from US $1.07 |
||
|
16
|
16
90201-10035-00 Washer, Plate |
90201-10035-00 |
from US $1.34 |
||
|
17
|
17
8GL-2194H-00-00 Protector, Muffler |
8GL-2194H-00-00 |
from US $51.81 |
||
|
18
|
18
8GL-2197N-00-00 Bracket 7 |
8GL-2197N-00-00 |
from US $87.73 |
||
|
19
|
19
8HL-21923-00-00 Reineforcement, Frame Rear |
8HL-21923-00-00 |
from US $58.17 |
||
|
20
|
20
8CR-2194N-00-00 Bracket, Fuel Tank 1 |
8CR-2194N-00-00 |
from US $2.41 |
||
|
21
|
21
8HL-21917-01-00 Panel, Sub Frame 6 |
8HL-21917-01-00 |
from US $146.45 |
||
|
22
|
22
90267-47195-00 Rivet, Blind(4.7X16.4 Yellow)4.7X16.4 YELL QTY: 207 |
90267-47195-00 |
from US $1.98 |
||
|
23
|
23
8GL-22512-00-00 Bracket 8 |
8GL-22512-00-00 |
from US $4.96 |
||
|
24
|
24
8GL-21295-00-00 Nut |
8GL-21295-00-00 |
from US $6.52 |
||
|
25
|
25
90267-48010-00 Rivet, Blind4.8X12 YELLOW |
90267-48010-00 |
from US $1.28 |
||
|
26
|
26
90267-48023-00 Rivet, Blind4.8X12.1 YELL |
90267-48023-00 |
from US $1.84 |
||
|
27
|
27
8HK-21961-00-00 Patch 1 |
8HK-21961-00-00 |
from US $4.53 |
||
|
28
|
28
8HK-21963-00-00 Patch 3 |
8HK-21963-00-00 |
from US $79.99 |
||
|
29
|
29
8HK-21964-00-00 Patch 4 |
8HK-21964-00-00 |
from US $79.99 |
||
|
30
|
30
8HK-21965-00-00 Patch 5 |
8HK-21965-00-00 |
from US $15.16 |
||
|
31
|
31
8HK-21966-00-00 Patch 6 |
8HK-21966-00-00 |
from US $15.16 |
||
|
32
|
32
8GL-21925-00-00 Reinf., Housing 1 |
8GL-21925-00-00 |
from US $390.10 |
||
|
33
|
33
8GL-21930-00-00 Housing, Reinf Sub-Assy (R.h) |
8GL-21930-00-00 |
from US $696.96 |
||
|
34
|
34
933-06206-01-00
Bearing (B6206C3)
|
933-06206-01-00 |
— | ||
| replacement | |||||
|
34
|
34
933-06206-27-00 Bearing (5X5) |
933-06206-27-00 |
from US $30.76 |
||
|
35
|
35
99009-62500-00 Circlip |
99009-62500-00 |
from US $1.98 |
||
|
36
|
36
93102-30012-00 Oil Seal |
93102-30012-00 |
from US $10.34 |
||
|
37
|
37
8GL-12440-00-00 Heat Exchanger Assy |
8GL-12440-00-00 |
from US $424.20 |
||
|
38
|
38
8GL-21915-00-00 Panel, Sub Frame 4 |
8GL-21915-00-00 |
from US $88.28 |
||
|
39
|
39
90267-47195-00 Rivet, Blind(4.7X16.4 Yellow)4.7X16.4 YELLOW |
90267-47195-00 |
from US $1.98 |
||
|
40
|
40
92012-08016-00 Bolt, Button Head |
92012-08016-00 |
from US $1.34 |
||
|
41
|
41
97012-08016-00 Bolt |
97012-08016-00 |
from US $1.42 |
||
| replacement | |||||
|
41
|
41
97017-08016-00 Bolt |
97017-08016-00 |
from US $1.42 |
||
|
42
|
42
90267-48010-00 Rivet, Blind4.8X12 YELLOW |
90267-48010-00 |
from US $1.28 |
||
|
43
|
43
90462-08061-00 Clamp |
90462-08061-00 |
from US $8.93 |
||
|
44
|
44
90462-08064-00 Clamp |
90462-08064-00 |
from US $8.93 |
||
|
45
|
45
8GL-2131D-00-00 Plate, Cover |
8GL-2131D-00-00 |
from US $6.52 |
||
|
46
|
46
90201-08512-00 Washer, Plate |
90201-08512-00 |
from US $1.66 |
||
|
47
|
47
8GL-21960-00-00 Footrest Comp. 1 |
8GL-21960-00-00 |
from US $157.50 |
||
|
48
|
48
8GL-21970-01-00 Footrest Comp. 2 |
8GL-21970-01-00 |
from US $157.50 |
||
|
49
|
49
95827-10030-00 Bolt, Flange |
95827-10030-00 |
from US $1.07 |
||
| replacement | |||||
|
49
|
49
958-17100-30-00 Bolt, Flange |
958-17100-30-00 |
from US $1.07 |
||
|
50
|
50
8GL-21920-00-00 Housing, Reinf Sub-Assy (L.h) |
8GL-21920-00-00 |
from US $13.60 |
||
|
51
|
51
95812-08020-00 Bolt, Flange |
95812-08020-00 |
from US $1.34 |
||
|
52
|
52
8GL-21916-00-00 Panel, Sub Frame 5 |
8GL-21916-00-00 |
from US $256.98 |
||
|
53
|
53
90267-47195-00 Rivet, Blind(4.7X16.4 Yellow)4.7X16.4 YELLOW |
90267-47195-00 |
from US $1.98 |
||
|
54
|
54
8GL-2194L-00-00 Stay, Muffer |
8GL-2194L-00-00 |
from US $31.74 |
||
|
55
|
55
8GL-21946-00-00 Bracket, Seat Fitting |
8GL-21946-00-00 |
from US $5.95 |
||
|
56
|
56
90176-06016-00 Nut, Cap |
90176-06016-00 |
from US $3.83 |
||
|
57
|
57
8GL-22151-00-00 Seal, Guard |
8GL-22151-00-00 |
from US $1.21 |
||
|
58
|
58
8GL-22152-00-00 Seal, Guard |
8GL-22152-00-00 |
from US $2.41 |
||
|
59
|
59
8GL-21967-00-00 Patch 7 |
8GL-21967-00-00 |
from US $13.60 |
||
|
60
|
60
8GL-21988-00-00 Patch 8 |
8GL-21988-00-00 |
from US $9.07 |
||
|
61
|
61
8HL-21978-00-00 Protector, Frame |
8HL-21978-00-00 |
from US $135.26 |
||
|
62
|
62
8GL-2196M-00-00 Bracket, 5 |
8GL-2196M-00-00 |
from US $7.65 |
||
|
63
|
63
8GL-2197M-00-00 Bracket, 6 |
8GL-2197M-00-00 |
from US $7.65 |
||
|
64
|
64
8GL-21443-00-00 Bracket, Protector Rear |
8GL-21443-00-00 |
from US $3.97 |
||
|
65
|
65
8GL-27471-00-00 Bar, Footrest 1 |
8GL-27471-00-00 |
from US $38.27 |
||
|
66
|
66
8GL-27472-00-00 Bar, Footrest 2 |
8GL-27472-00-00 |
from US $38.27 |
||
|
67
|
67
92012-06014-00 Bolt, Button Head |
92012-06014-00 |
from US $1.56 |
||
|
68
|
68
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.07 |
||
| replacement | |||||
|
68
|
68
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
69
|
69
8GL-21151-00-00 Bracket, Rear Fender 1 |
8GL-21151-00-00 |
from US $4.11 |
||
|
70
|
70
8GL-21152-00-00 Bracket, Rear Fender 2 |
8GL-21152-00-00 |
from US $4.11 |
||
|
71
|
71
180-22117-00-00 Cap |
180-22117-00-00 |
from US $3.26 |
||
|
72
|
72
90267-47195-00 Rivet, Blind(4.7X16.4 Yellow)4.7X16.4 YELLOW |
90267-47195-00 |
from US $1.98 |
||
|
73
|
73
90267-48016-00 Rivet, Blind (4.8X16.4 Yellow4.8X16.4 YELLOW |
90267-48016-00 |
from US $1.84 |
||
|
74
|
74
8GL-21852-00-00 Damper |
8GL-21852-00-00 |
from US $1.28 |
||
|
75
|
75
8GL-2197B-00-00 Protector, Frame |
8GL-2197B-00-00 |
from US $18.56 |
||
|
76
|
76
90267-48023-00 Rivet, Blind4.8X12.1 YELLOW |
90267-48023-00 |
from US $1.84 |
||
|
77
|
77
905-20100-03-00 Damper, Plate |
905-20100-03-00 |
from US $0.99 |
||
|
78
|
78
8GL-2179D-20-00 Plate, Epa Offroad 2 |
8GL-2179D-20-00 |
US $3.55 |
||
|
79
|
79
8GL-2199A-30-00 Graphic 1UR FOR BWS1 |
8GL-2199A-30-00 |
from US $14.73 |
||
|
79
|
79
8GL-2199A-50-00 Graphic 1UR FOR YB |
8GL-2199A-50-00 |
from US $8.50 |
||
