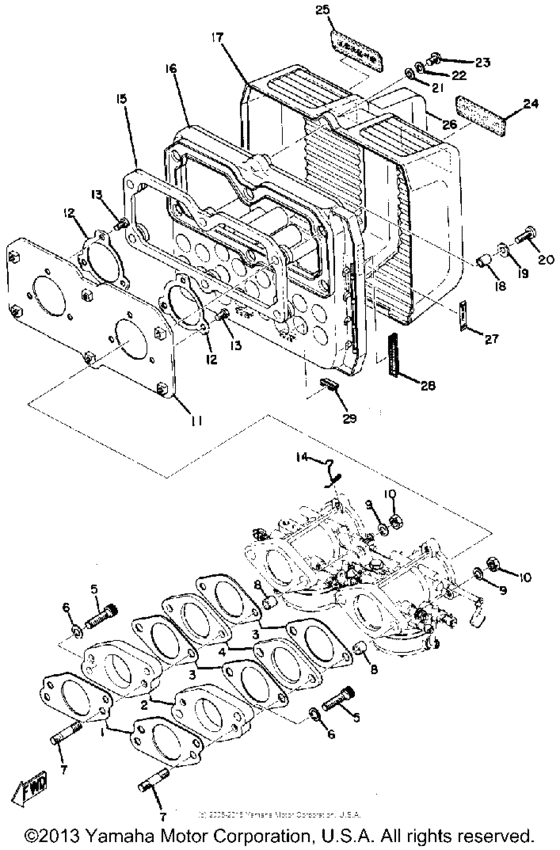

Intake Diagram Yamaha GP643
- Model code
- GP643
- Engine Capacity
- 643
- Year
- 1973
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
835-13556-00-00
Gasket, Manifold
|
835-13556-00-00 |
— | ||
|
2
|
2
835-13565-00-00
Joint, Carburetor
|
835-13565-00-00 |
— | ||
|
3
|
3
812-13556-70-00 Gasket, Manifold |
812-13556-70-00 |
US $6.79 |
||
| replacement | |||||
|
3
|
3
812-13556-09-00 PIN,FLOAT |
812-13556-09-00 |
US $6.79 |
||
|
4
|
4
835-13585-00-00
Joint, Carburetor
|
835-13585-00-00 |
— | ||
|
5
|
5
913-16080-30-00
Bolt
|
913-16080-30-00 |
— | ||
| replacement | |||||
|
5
|
5
913-17080-30-00 Bolt |
913-17080-30-00 |
from US $1.07 |
||
|
6
|
6
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
7
|
7
901-16080-45-00
Bolt, Stud
|
901-16080-45-00 |
— | ||
|
8
|
8
810-13576-00-00
Spacer
|
810-13576-00-00 |
— | ||
|
9
|
9
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
10
|
10
953-03087-00-00
Nut
|
953-03087-00-00 |
— | ||
| replacement | |||||
|
10
|
10
95380-08700-00 Nut |
95380-08700-00 |
from US $1.42 |
||
|
11
|
11
847-14477-00-00
Plate
|
847-14477-00-00 |
— | ||
|
12
|
12
902-09450-75-00
Washer, Spec''l Shap (847-14475
847-14475 |
902-09450-75-00 |
— | ||
|
13
|
13
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
13
|
13
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
14
|
14
822-41222-00-00
Clamp, Throttle
|
822-41222-00-00 |
— | ||
|
15
|
15
844-14492-00-00
Damper
|
844-14492-00-00 |
— | ||
|
16
|
16
844-14431-00-00
Silencer, Intake 1
|
844-14431-00-00 |
— | ||
|
17
|
17
844-14441-00-00
Silencer, Intake 2
|
844-14441-00-00 |
— | ||
|
18
|
18
90387-065L7-00 Collar |
90387-065L7-00 |
from US $1.56 |
||
| replacement | |||||
|
18
|
18
90387-06026-00 Collar |
90387-06026-00 |
from US $1.56 |
||
|
19
|
19
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
19
|
19
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
20
|
20
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.07 |
||
|
21
|
21
929-06062-00-00
Washer
|
929-06062-00-00 |
— | ||
| replacement | |||||
|
21
|
21
92907-06200-00 Washer(6Ta) |
92907-06200-00 |
from US $1.07 |
||
|
22
|
22
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
22
|
22
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
23
|
23
989-06060-10-00
Screw, Bind
|
989-06060-10-00 |
— | ||
| replacement | |||||
|
23
|
23
989-07060-10-00 Screw, Binding |
989-07060-10-00 |
from US $1.56 |
||
|
24
|
24
844-77351-00-00
Emblem 1
|
844-77351-00-00 |
— | ||
|
25
|
25
847-77451-00-00
Emblem 1
|
847-77451-00-00 |
— | ||
|
26
|
26
844-77359-00-00
Emblem 9
|
844-77359-00-00 |
— | ||
|
27
|
27
847-77455-00-00
Indicator, Choke
|
847-77455-00-00 |
— | ||
|
28
|
28
844-14425-00-00
Damper 1
|
844-14425-00-00 |
— | ||
|
29
|
29
844-14426-00-00
Damper 2
|
844-14426-00-00 |
— | ||
