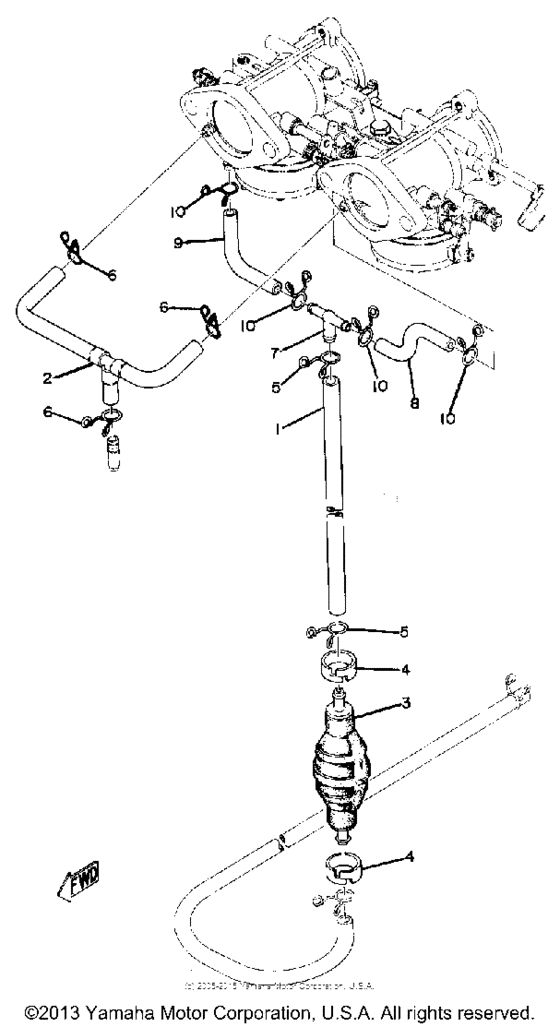

Piping Diagram Yamaha GP643
- Model code
- GP643
- Engine Capacity
- 643
- Year
- 1973
- Sales region
- USA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
904-46110-22-00 Hose |
904-46110-22-00 |
US $3.97 |
||
|
2
|
2
835-24315-01-00
Pipe 5
|
835-24315-01-00 |
— | ||
|
3
|
3
810-24360-00-00
Primer Pump Assembly
|
810-24360-00-00 |
— | ||
|
4
|
4
601-24353-00-00
Band
|
601-24353-00-00 |
— | ||
|
5
|
5
90467-11009-00 Clip |
90467-11009-00 |
from US $1.07 |
||
|
6
|
6
904-67090-06-00
Clip
|
904-67090-06-00 |
— | ||
| replacement | |||||
|
6
|
6
904-67090-A2-00 Clip |
904-67090-A2-00 |
from US $1.56 |
||
|
7
|
7
807-24376-00-00 Pipe, Joint 1 |
807-24376-00-00 |
from US $6.52 |
||
|
8
|
8
813-24313-00-00
Pipe 3
|
813-24313-00-00 |
— | ||
|
9
|
9
835-24317-00-00 Pipe 7 |
835-24317-00-00 |
from US $0.18 |
||
|
10
|
10
90467-09005-00 Clip |
90467-09005-00 |
from US $1.56 |
||
| replacement | |||||
|
10
|
10
90467-08017-00 Clip |
90467-08017-00 |
from US $1.56 |
||
