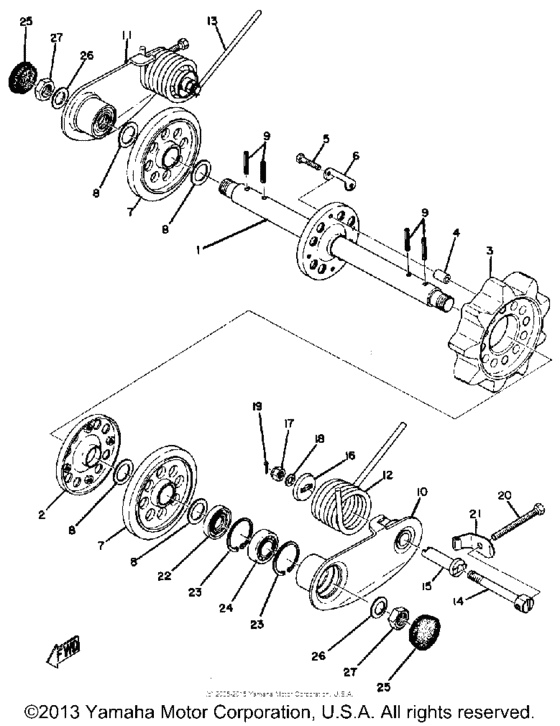

Rear axle Diagram Yamaha GP643
- Model code
- GP643
- Engine Capacity
- 643
- Year
- 1973
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
847-47520-00-00
Rear Axle
|
847-47520-00-00 |
— | ||
|
2
|
2
835-47522-00-00
Rim, Sprocket Whl 2
|
835-47522-00-00 |
— | ||
|
3
|
3
810-47532-00-00
Wheel, Sprocket 2
|
810-47532-00-00 |
— | ||
|
4
|
4
903-87060-21-00
Collar
|
903-87060-21-00 |
— | ||
|
5
|
5
970-13060-35-00 Bolt, Hexagon |
970-13060-35-00 |
from US $2.09 |
||
| replacement | |||||
|
5
|
5
970-14060-35-00 Bolt, Hexagon |
970-14060-35-00 |
from US $2.41 |
||
|
6
|
6
902-15061-00-00
Washer, Lock
|
902-15061-00-00 |
— | ||
|
7
|
7
836-47530-00-00 Guide Wheel |
836-47530-00-00 |
US $42.50 |
||
|
8
|
8
836-47519-00-00
Plate
|
836-47519-00-00 |
— | ||
|
9
|
9
916-09600-36-00
Pin, Spring
|
916-09600-36-00 |
— | ||
|
10
|
10
847-47361-00-00
Arm, Rear Pivot 1
|
847-47361-00-00 |
— | ||
|
11
|
11
847-47362-00-00 Arm, Rear Pivot 2 |
847-47362-00-00 |
US $74.75 |
||
|
12
|
12
905-08721-14-00
Spring, Torsion
|
905-08721-14-00 |
— | ||
|
13
|
13
905-08720-84-00
Spring, Torsion (812-47364-00)
812-47364-00 |
905-08720-84-00 |
— | ||
|
14
|
14
901-49080-22-00
Screw, Spec''l Shape
|
901-49080-22-00 |
— | ||
|
15
|
15
810-47369-00-00
Collar
|
810-47369-00-00 |
— | ||
|
16
|
16
902-09080-67-00
Washer, Spec''l Shap
|
902-09080-67-00 |
— | ||
|
17
|
17
901-85080-89-00
Nut, Self-Locking
|
901-85080-89-00 |
— | ||
| replacement | |||||
|
17
|
17
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
18
|
18
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
19
|
19
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
19
|
19
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
|
20
|
20
901-06080-50-00 Bolt, Dome Head (841-47373-00)841-47373-00 |
901-06080-50-00 |
US $8.93 |
||
|
21
|
21
902-15080-69-00
Washer, Lock
|
902-15080-69-00 |
— | ||
|
22
|
22
931-05300-14-00
Oil Seal, Sdd-Type
|
931-05300-14-00 |
— | ||
|
23
|
23
99009-52500-00 Circlip |
99009-52500-00 |
from US $4.96 |
||
|
24
|
24
933-06205-29-00 Bearing |
933-06205-29-00 |
from US $16.20 |
||
|
25
|
25
847-47552-00-00
Cap
|
847-47552-00-00 |
— | ||
|
26
|
26
902-08240-02-00
Washer, Conical Spr
|
902-08240-02-00 |
— | ||
|
27
|
27
901-70240-98-00
Nut, Hexagon
|
901-70240-98-00 |
— | ||
