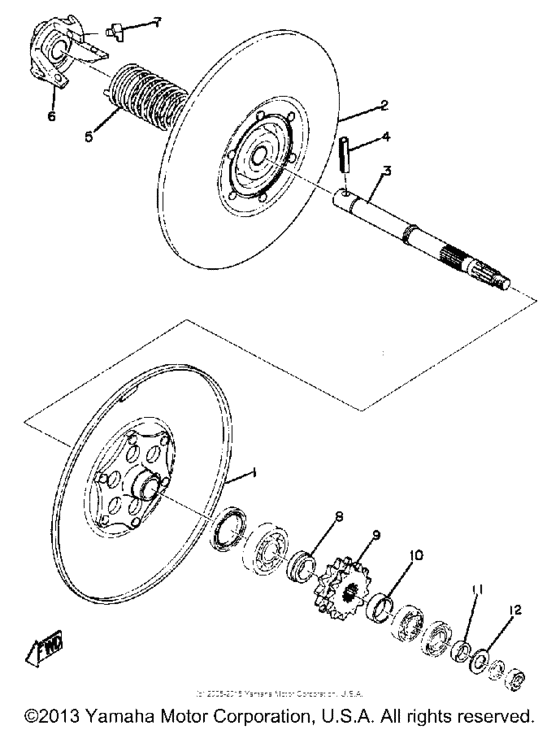

Secondary sheave Diagram Yamaha GP643
- Model code
- GP643
- Engine Capacity
- 643
- Year
- 1973
- Sales region
- USA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
835-17660-00-00
Sec Fxd Shv
|
835-17660-00-00 |
— | ||
|
2
|
2
835-17670-00-00
Sec Sliding Sheave
|
835-17670-00-00 |
— | ||
|
3
|
3
835-17681-00-00
Shaft, Secondary
|
835-17681-00-00 |
— | ||
|
4
|
4
902-54080-01-00
Pin, Spring Type
|
902-54080-01-00 |
— | ||
|
5
|
5
805-17683-00-00
Spring, Secondary (805-17683-00
805-17683-00 |
805-17683-00-00 |
— | ||
|
6
|
6
810-17684-01-00
Seat, Sec Springspring
|
810-17684-01-00 |
— | ||
|
7
|
7
801-17688-10-00 Shoe, Ramp |
801-17688-10-00 |
from US $7.11 |
||
|
8
|
8
903-87191-49-00
Collar (812-17685-00)
812-17685-00 |
903-87191-49-00 |
— | ||
|
9
|
9
806-17682-20-00 Sprocket, Chain Drive12T U.R. |
806-17682-20-00 |
US $49.34 |
||
|
9
|
9
802-17682-40-00 Sprocket, Chain Drive (13T)DR 13TCHAIN DRIVE U.R. |
802-17682-40-00 |
US $54.95 |
||
| replacement | |||||
|
9
|
9
806-17682-30-00 Sprocket, Chain DriveDR 13TCHAIN DRIVE U.R. |
806-17682-30-00 |
US $54.95 |
||
|
9
|
9
810-17682-50-00
Sprkt, Chain Dr 15T
DR 15T U.R. |
810-17682-50-00 |
— | ||
|
9
|
9
806-17682-40-00
Sprocket, Chain Drive
14T U.R. |
806-17682-40-00 |
— | ||
|
10
|
10
903-87171-33-00
Collar
|
903-87171-33-00 |
— | ||
|
11
|
11
903-87171-30-00
Collar (818-17686-00)
818-17686-00 |
903-87171-30-00 |
— | ||
|
12
|
12
150-17417-00-03
Shim 1
|
150-17417-00-03 |
— | ||
|
12
|
12
150-17417-00-02
Shim 1
|
150-17417-00-02 |
— | ||
