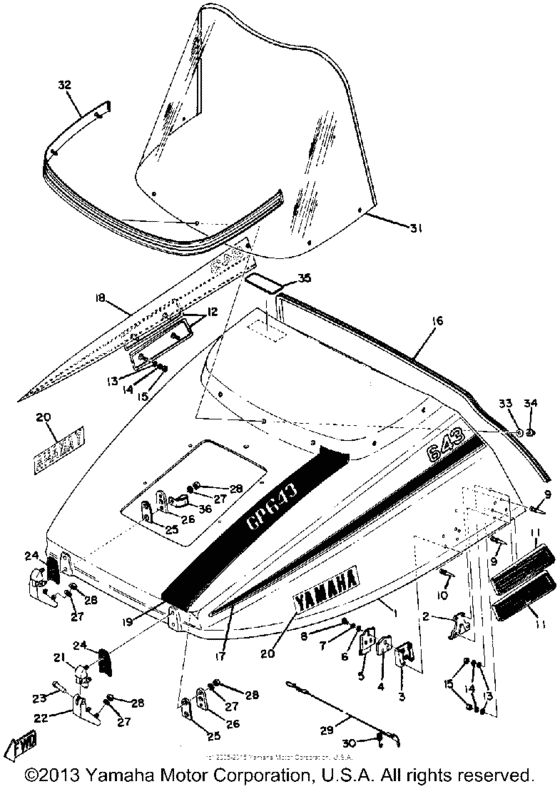

Shroud Diagram Yamaha GP643
- Model code
- GP643
- Engine Capacity
- 643
- Year
- 1973
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
847-77111-00-00
Shroud
|
847-77111-00-00 |
— | ||
|
2
|
2
806-77171-00-00
Body, Latch 1
|
806-77171-00-00 |
— | ||
|
3
|
3
811-77138-00-00
Clamp 4
|
811-77138-00-00 |
— | ||
|
4
|
4
810-77179-00-00
Washer 2
|
810-77179-00-00 |
— | ||
|
5
|
5
810-77136-00-00
Clamp 2
|
810-77136-00-00 |
— | ||
|
6
|
6
90201-05029-00 Washer, Plate |
90201-05029-00 |
from US $1.98 |
||
|
7
|
7
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
8
|
8
97313-05010-00 Bolt, Hexagon |
97313-05010-00 |
from US $1.66 |
||
| replacement | |||||
|
8
|
8
970-13050-10-00 Bolt |
970-13050-10-00 |
from US $0.83 |
||
|
9
|
9
902-6740M-00-00 Rivet, Blind |
902-6740M-00-00 |
from US $0.95 |
||
| replacement | |||||
|
9
|
9
90267-40936-00 Rivet, Blind |
90267-40936-00 |
from US $1.34 |
||
|
10
|
10
902-6740M-00-00 Rivet, Blind |
902-6740M-00-00 |
from US $0.95 |
||
| replacement | |||||
|
10
|
10
90267-40936-00 Rivet, Blind |
90267-40936-00 |
from US $1.34 |
||
|
11
|
11
838-77131-00-00
Louver 1
|
838-77131-00-00 |
— | ||
|
12
|
12
838-77132-00-00
Louver 2
|
838-77132-00-00 |
— | ||
|
13
|
13
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.34 |
||
|
14
|
14
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
15
|
15
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
16
|
16
847-77166-00-00
Trim 2
|
847-77166-00-00 |
— | ||
|
17
|
17
847-77163-00-00
Ornament 1
|
847-77163-00-00 |
— | ||
|
18
|
18
847-77164-00-00
Ornament 2
|
847-77164-00-00 |
— | ||
|
19
|
19
847-77169-00-00
Ornament 3
|
847-77169-00-00 |
— | ||
|
20
|
20
838-77357-00-00
Emblem 7
|
838-77357-00-00 |
— | ||
|
21
|
21
806-77145-00-00
Hinge 1
|
806-77145-00-00 |
— | ||
|
22
|
22
806-77147-00-00
Hinge 3
|
806-77147-00-00 |
— | ||
|
23
|
23
902-43050-02-00
Pin (806-77157-00)
806-77157-00 |
902-43050-02-00 |
— | ||
|
24
|
24
806-77198-00-00
Damper 1
|
806-77198-00-00 |
— | ||
|
25
|
25
810-77199-00-00
Damper 2
|
810-77199-00-00 |
— | ||
|
26
|
26
810-77153-00-00
Plate, Back Up 1
UP 1 |
810-77153-00-00 |
— | ||
|
27
|
27
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
28
|
28
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
29
|
29
838-77118-00-00
Stopper, Shroud
|
838-77118-00-00 |
— | ||
|
30
|
30
838-77159-00-00 Clamp, Rod |
838-77159-00-00 |
from US $6.10 |
||
|
31
|
31
838-77210-01-00
Windshield
|
838-77210-01-00 |
— | ||
|
32
|
32
838-77220-00-00
Trim Lower Assembly
|
838-77220-00-00 |
— | ||
|
33
|
33
90201-05036-00 Washer, Plate |
90201-05036-00 |
from US $1.84 |
||
| replacement | |||||
|
33
|
33
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
34
|
34
95701-05300-00 Nut, Flange |
95701-05300-00 |
US $1.42 |
||
| replacement | |||||
|
34
|
34
95707-05300-00 Nut, Flange |
95707-05300-00 |
from US $1.42 |
||
|
35
|
35
288-21659-00-00
Label, Safety
|
288-21659-00-00 |
— | ||
| replacement | |||||
|
35
|
35
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
36
|
36
90465-06013-00 Clamp |
90465-06013-00 |
US $1.71 |
||
