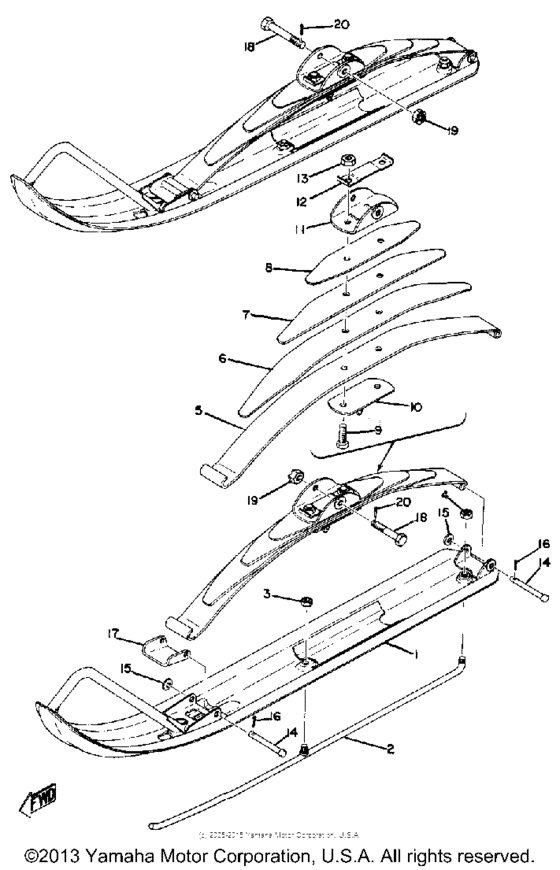

Ski Diagram Yamaha GP643
- Model code
- GP643
- Engine Capacity
- 643
- Year
- 1973
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
838-23710-01-00
Ski 1
|
838-23710-01-00 |
— | ||
|
1
|
1
834-23760-00-00
Spring Assembly 1
|
834-23760-00-00 |
— | ||
|
2
|
2
838-23731-03-00
Runner 1
|
838-23731-03-00 |
— | ||
|
2
|
2
834-23770-00-00
Spring Assembly 2
|
834-23770-00-00 |
— | ||
|
3
|
3
95316-08700-00 Nut(2Gv) |
95316-08700-00 |
from US $1.56 |
||
| replacement | |||||
|
3
|
3
95317-08700-00 Nut, Hexagon Small |
95317-08700-00 |
from US $1.56 |
||
|
4
|
4
953-36086-00-00
Nut, Hex
|
953-36086-00-00 |
— | ||
| replacement | |||||
|
4
|
4
95337-08600-00 Nut |
95337-08600-00 |
from US $1.13 |
||
|
5
|
5
834-23761-00-00 Leaf 1 |
834-23761-00-00 |
US $58.79 |
||
|
6
|
6
834-23762-00-00
Leaf 2
|
834-23762-00-00 |
— | ||
|
7
|
7
834-23763-00-00
Leaf 3
|
834-23763-00-00 |
— | ||
|
8
|
8
834-23764-00-00
Leaf 4
|
834-23764-00-00 |
— | ||
|
9
|
9
901-01100-60-00
Bolt
|
901-01100-60-00 |
— | ||
|
10
|
10
802-23768-00-00 Seat, Spring 1 |
802-23768-00-00 |
US $14.89 |
||
|
11
|
11
806-23766-00-00
Saddle 1
|
806-23766-00-00 |
— | ||
|
12
|
12
902-09100-69-00
Washer, Spec''l Shap
|
902-09100-69-00 |
— | ||
|
13
|
13
95336-10600-00 Nut |
95336-10600-00 |
from US $2.27 |
||
| replacement | |||||
|
13
|
13
95337-10600-00 Nut |
95337-10600-00 |
from US $2.27 |
||
|
14
|
14
902-40080-35-00
Pin, Clevis (801-23733-00)
801-23733-00 |
902-40080-35-00 |
— | ||
|
15
|
15
92906-08200-00 Washer |
92906-08200-00 |
from US $1.56 |
||
| replacement | |||||
|
15
|
15
92907-08200-00 Washer |
92907-08200-00 |
from US $1.56 |
||
|
16
|
16
91401-30020-00 Pin. Cotter |
91401-30020-00 |
US $1.13 |
||
| replacements | |||||
|
16
|
16
914-90300-20-00 Pin. Cotter |
914-90300-20-00 |
US $1.13 |
||
|
16
|
16
914-90300-25-00 Pin. Cotter |
914-90300-25-00 |
from US $1.13 |
||
|
17
|
17
802-23735-00-00
Plate, Wear 1
|
802-23735-00-00 |
— | ||
|
18
|
18
90102-10023-00
Bolt, With Hole
|
90102-10023-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
953-06109-00-00 Nut, Slotted |
953-06109-00-00 |
US $5.53 |
||
|
20
|
20
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
