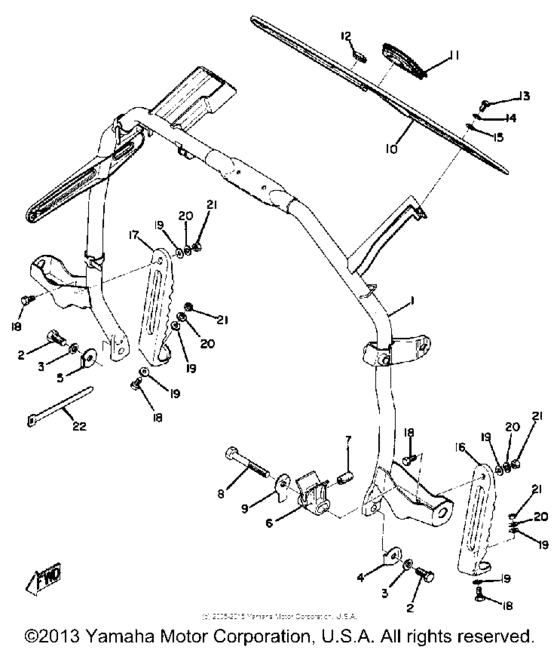

Steering gate Diagram Yamaha GP643
- Model code
- GP643
- Engine Capacity
- 643
- Year
- 1973
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
847-23871-00-00
Gate, Steering
|
847-23871-00-00 |
— | ||
|
2
|
2
97026-08018-00 Bolt |
97026-08018-00 |
from US $1.70 |
||
| replacement | |||||
|
2
|
2
97027-08018-00 Bolt |
97027-08018-00 |
from US $1.70 |
||
|
3
|
3
90201-08624-00 Washer, Plate |
90201-08624-00 |
from US $1.70 |
||
|
4
|
4
861-23895-00-00
Washer, Lock 2
|
861-23895-00-00 |
— | ||
|
5
|
5
902-15080-66-00
Washer, Lock
|
902-15080-66-00 |
— | ||
|
6
|
6
904-64090-03-00
Clamp
|
904-64090-03-00 |
— | ||
|
7
|
7
821-77188-01-00
Stopper
|
821-77188-01-00 |
— | ||
|
8
|
8
901-01080-39-00
Bolt (810-77537-00)
810-77537-00 |
901-01080-39-00 |
— | ||
|
9
|
9
902-15080-39-00
Washer, Lock
|
902-15080-39-00 |
— | ||
|
10
|
10
835-77711-00-00
Panel, Instrument
|
835-77711-00-00 |
— | ||
|
11
|
11
834-77746-00-00
Grommet
|
834-77746-00-00 |
— | ||
|
12
|
12
102-82598-00-00
Grommet
|
102-82598-00-00 |
— | ||
|
13
|
13
970-06050-10-00 Bolt |
970-06050-10-00 |
from US $1.70 |
||
| replacement | |||||
|
13
|
13
97027-05010-00 Bolt, Hexagon |
97027-05010-00 |
from US $1.70 |
||
|
14
|
14
929-06051-00-00
Washer, Spring
|
929-06051-00-00 |
— | ||
| replacement | |||||
|
14
|
14
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
|
15
|
15
92906-05200-00 Washer |
92906-05200-00 |
from US $1.56 |
||
| replacements | |||||
|
15
|
15
92907-05200-00 Washer |
92907-05200-00 |
from US $1.56 |
||
|
15
|
15
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.07 |
||
|
16
|
16
810-27411-00-00
Footrest 1
|
810-27411-00-00 |
— | ||
|
17
|
17
810-27421-00-00
Footrest 2
|
810-27421-00-00 |
— | ||
|
18
|
18
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
18
|
18
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
19
|
19
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
20
|
20
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
21
|
21
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
22
|
22
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
