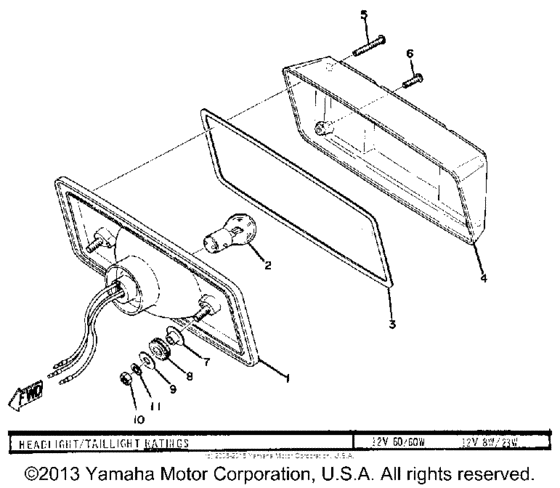

Tail lamp Diagram Yamaha GP643
- Model code
- GP643
- Engine Capacity
- 643
- Year
- 1973
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
853-84710-00-00
Taillight Unit Assembly
|
853-84710-00-00 |
— | ||
|
2
|
2
137-84714-61-00 Bulb (12V-21/5W)12V-21/5W |
137-84714-61-00 |
from US $4.53 |
||
| replacement | |||||
|
2
|
2
137-84714-61-XX
Bulb (12V-21/5W)
12V-21/5W |
137-84714-61-XX |
— | ||
|
3
|
3
821-84712-00-00 Gasket,lens |
821-84712-00-00 |
from US $9.67 |
||
| replacement | |||||
|
3
|
3
3TJ-14457-00-00 Seal |
3TJ-14457-00-00 |
from US $15.30 |
||
|
4
|
4
821-84721-00-00
Lens, Taillight
|
821-84721-00-00 |
— | ||
|
5
|
5
98511-04030-00 Screw, Pan Head |
98511-04030-00 |
US $2.13 |
||
| replacements | |||||
|
5
|
5
985-17040-30-00
Screw, Pan Head(1Ke)
|
985-17040-30-00 |
— | ||
|
5
|
5
98507-04030-00 Screw,pan Head |
98507-04030-00 |
from US $2.13 |
||
|
6
|
6
985-03040-14-00
Screw, Pan Head
|
985-03040-14-00 |
— | ||
| replacement | |||||
|
6
|
6
98580-04014-00 Screw, Pan Head |
98580-04014-00 |
from US $1.42 |
||
|
7
|
7
90387-06024-00 Collar |
90387-06024-00 |
from US $2.55 |
||
|
8
|
8
904-80140-75-00
Grommet
|
904-80140-75-00 |
— | ||
|
9
|
9
90201-06057-00 Washer, Plate |
90201-06057-00 |
from US $1.28 |
||
|
10
|
10
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
11
|
11
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
