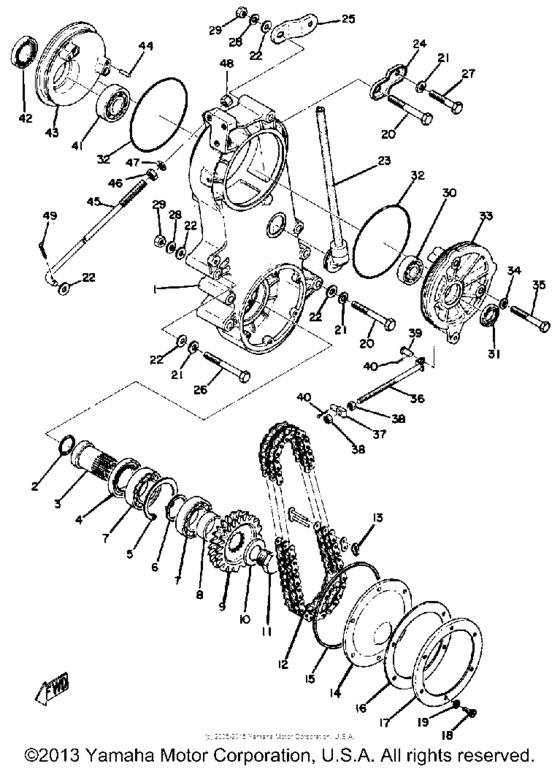

Track drive Diagram Yamaha GP643
- Model code
- GP643
- Engine Capacity
- 643
- Year
- 1973
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
835-47541-00-00
Housing, Chain
|
835-47541-00-00 |
— | ||
|
2
|
2
93210-25070-00 O-Ring (168) |
93210-25070-00 |
from US $2.98 |
||
| replacement | |||||
|
2
|
2
932-10242-35-00 O-Ring |
932-10242-35-00 |
from US $2.32 |
||
|
3
|
3
835-47571-00-00
Journal 1
|
835-47571-00-00 |
— | ||
|
4
|
4
931-02401-01-00
Oil Seal, Sd-Type
|
931-02401-01-00 |
— | ||
|
5
|
5
934-20620-70-00
Circlip
|
934-20620-70-00 |
— | ||
| replacement | |||||
|
5
|
5
99009-62500-00 Circlip |
99009-62500-00 |
from US $1.98 |
||
|
6
|
6
905-60350-50-00
Spacer
|
905-60350-50-00 |
— | ||
|
7
|
7
933-06007-01-00 Bearing (B6007) |
933-06007-01-00 |
from US $16.60 |
||
|
8
|
8
903-87352-07-00
Collar
|
903-87352-07-00 |
— | ||
|
9
|
9
802-47548-60-00
Sprocket, Chn Drvn
|
802-47548-60-00 |
— | ||
|
9
|
9
835-47548-10-00
Sprocket, Chn Drvn
|
835-47548-10-00 |
— | ||
|
9
|
9
835-47548-00-00
Sprocket, Chn Drvn
|
835-47548-00-00 |
— | ||
|
9
|
9
802-47548-50-00
Sprocket, Chn Drvn
|
802-47548-50-00 |
— | ||
|
10
|
10
821-47582-00-00 Spring, Belleville |
821-47582-00-00 |
US $5.29 |
||
|
11
|
11
901-09242-02-00
Bolt (802-47553-00)
802-47553-00 |
901-09242-02-00 |
— | ||
|
12
|
12
948-04250-62-00
Chain (Dk425-2 62L)
62L |
948-04250-62-00 |
— | ||
|
13
|
13
949-04250-01-00
Joint Chain
|
949-04250-01-00 |
— | ||
|
14
|
14
835-47543-00-00
Cap, Housing
|
835-47543-00-00 |
— | ||
|
15
|
15
806-47558-00-00
Ring, Housing
|
806-47558-00-00 |
— | ||
|
16
|
16
821-47544-00-00
Gasket
|
821-47544-00-00 |
— | ||
|
17
|
17
821-47591-00-00
Plate
|
821-47591-00-00 |
— | ||
|
18
|
18
90143-05004-00 Screw, Hexagon |
90143-05004-00 |
from US $2.38 |
||
|
19
|
19
902-10050-05-00
Washer, Seal
|
902-10050-05-00 |
— | ||
|
20
|
20
97021-08070-00 Bolt, Flat Head |
97021-08070-00 |
from US $4.68 |
||
| replacement | |||||
|
20
|
20
97027-08070-00 Bolt, Hexagon |
97027-08070-00 |
from US $4.68 |
||
|
21
|
21
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
22
|
22
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
23
|
23
835-47559-00-00 Cap 2 |
835-47559-00-00 |
US $13.32 |
||
| replacements | |||||
|
23
|
23
JN3-47559-00-00 Cap 2 |
JN3-47559-00-00 |
US $13.32 |
||
|
23
|
23
JN3-47559-01-00 Cap 2 |
JN3-47559-01-00 |
US $10.35 |
||
|
24
|
24
820-47565-00-00
Stay 1
|
820-47565-00-00 |
— | ||
|
25
|
25
820-47566-00-00
Stay 2
|
820-47566-00-00 |
— | ||
|
26
|
26
97013-08075-00 Bolt (6K8) |
97013-08075-00 |
from US $6.09 |
||
|
27
|
27
97313-08050-00 Bolt,hex |
97313-08050-00 |
from US $5.24 |
||
| replacement | |||||
|
27
|
27
97013-08050-00 Bolt, Hexagon |
97013-08050-00 |
from US $4.24 |
||
|
28
|
28
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
29
|
29
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
| replacement | |||||
|
29
|
29
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
30
|
30
93306-20310-00 Bearing |
93306-20310-00 |
from US $15.30 |
||
|
31
|
31
93102-22087-00 Oil Seal |
93102-22087-00 |
from US $6.96 |
||
|
32
|
32
932-11131-09-00
O-Ring
|
932-11131-09-00 |
— | ||
|
33
|
33
847-47561-00-00
Housing, Sec Shaft
|
847-47561-00-00 |
— | ||
|
34
|
34
90210-08002-00 Washer, Seal |
90210-08002-00 |
from US $1.56 |
||
|
35
|
35
970-13080-60-00 Bolt663 |
970-13080-60-00 |
from US $5.72 |
||
|
36
|
36
829-47567-00-00
Bolt, Sec Housing
|
829-47567-00-00 |
— | ||
|
37
|
37
90249-06013-00
Pin, Spec''l Shape
|
90249-06013-00 |
— | ||
|
38
|
38
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
39
|
39
91702-06014-00 PinPin, clevis |
91702-06014-00 |
US $2.27 |
||
| replacement | |||||
|
39
|
39
917-01060-14-00 Pin |
917-01060-14-00 |
from US $2.27 |
||
|
40
|
40
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
40
|
40
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
41
|
41
93306-30407-00 Bearing |
93306-30407-00 |
from US $16.43 |
||
|
42
|
42
93102-30083-00 Oil Seal |
93102-30083-00 |
from US $6.66 |
||
|
43
|
43
810-47562-00-00
Housing, Sec Shaft
|
810-47562-00-00 |
— | ||
|
44
|
44
93604-18058-00
Pin, Dowel
|
93604-18058-00 |
— | ||
| replacement | |||||
|
44
|
44
93604-18251-00
Pin, Dowel(4Ss)
|
93604-18251-00 |
— | ||
|
45
|
45
847-47585-00-00
New Genuine Part
IN PRICE BOOK N/A |
847-47585-00-00 |
— | ||
|
46
|
46
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
| replacement | |||||
|
46
|
46
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
47
|
47
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
48
|
48
901-85080-89-00
Nut, Self-Locking
|
901-85080-89-00 |
— | ||
| replacement | |||||
|
48
|
48
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
49
|
49
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
49
|
49
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
