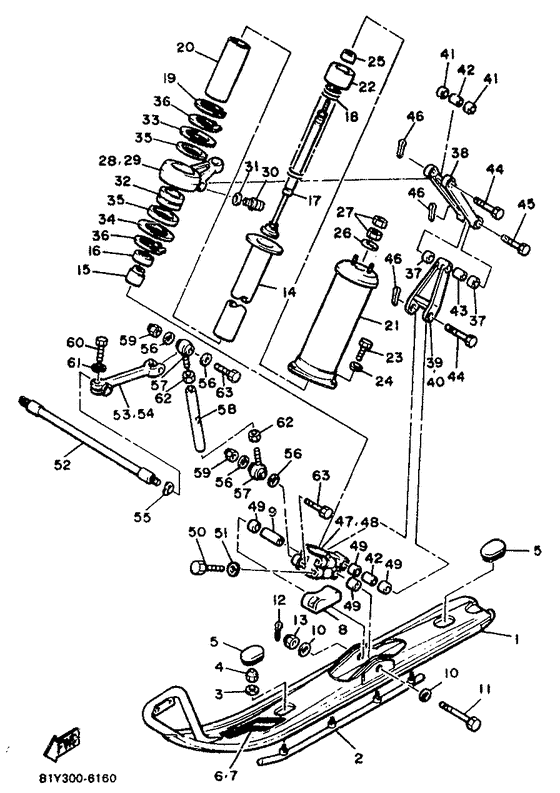

Ski Diagram Yamaha PZ480 Phazer II
- Model code
- 81Y
- Engine Capacity
- 480
- Year
- 1996
- Sales region
- Europe (General) (999)
- Model
- Phazer II
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
81Y-23710-00-00 Ski Comp. 1 |
81Y-23710-00-00 |
US $235.22 |
||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
8M6-23731-01-00 Runner, 1 (8M6-23731-01-00) |
8M6-23731-01-00 |
US $63.14 |
||
| replacements | |||||
|
02
|
02
VMX-23731-01-XX
Runner, 1 (8M6-23731-01-00)
|
VMX-23731-01-XX |
— | ||
|
02
|
02
8M6-23731-02-XX
Runner 1 :sm
|
8M6-23731-02-XX |
— | ||
|
03
|
03
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
04
|
04
95602-08100-00 Nut, U |
95602-08100-00 |
from US $3.26 |
||
| replacement | |||||
|
04
|
04
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
05
|
05
8V0-23741-00-00 Cap 1 |
8V0-23741-00-00 |
US $3.67 |
||
|
06
|
06
81H-77365-00-00
Emblem 10
|
81H-77365-00-00 |
— | ||
| replacement | |||||
|
06
|
06
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
07
|
07
81H-77366-00-00
Emblem 11
|
81H-77366-00-00 |
— | ||
| replacement | |||||
|
07
|
07
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
08
|
08
8V0-23743-01-00
Stopper 1
|
8V0-23743-01-00 |
— | ||
|
09
|
09
90387-106J3-00 Collar |
90387-106J3-00 |
from US $4.39 |
||
|
10
|
10
92906-10600-00 Washer, Plate |
92906-10600-00 |
from US $1.07 |
||
| replacement | |||||
|
10
|
10
92907-10600-00 Washer, Plate |
92907-10600-00 |
from US $1.07 |
||
|
11
|
11
90102-10050-00 Bolt, With Hole |
90102-10050-00 |
from US $11.33 |
||
|
12
|
12
914-01200-20-00
Pin, Cotter
|
914-01200-20-00 |
— | ||
| replacement | |||||
|
12
|
12
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
13
|
13
95706-10300-00 Nut, Nylon |
95706-10300-00 |
from US $2.55 |
||
| replacement | |||||
|
13
|
13
95707-10300-00 Nut, Flange |
95707-10300-00 |
from US $1.34 |
||
|
14
|
14
8V0-22471-00-00 Cylinder, Shock Absabsorber |
8V0-22471-00-00 |
US $177.48 |
||
|
15
|
15
8V0-23768-00-00
Seat, Spring 1
|
8V0-23768-00-00 |
— | ||
|
16
|
16
93399-99908-00 Bearing, Special |
93399-99908-00 |
US $37.15 |
||
|
17
|
17
80L-2376A-00-00 Absorber Assembly (8V0-2376A-00 |
80L-2376A-00-00 |
US $187.31 |
||
|
18
|
18
90501-60716-00 Spring, Compression |
90501-60716-00 |
from US $14.31 |
||
|
19
|
19
8V0-22494-00-00 Stop, Rebound |
8V0-22494-00-00 |
from US $8.51 |
||
|
20
|
20
8V0-2376R-00-00
Protector
|
8V0-2376R-00-00 |
— | ||
|
21
|
21
8V0-2376J-00-00
Holder, Absorber
|
8V0-2376J-00-00 |
— | ||
|
22
|
22
8V0-22493-00-00
Bump, Stop
|
8V0-22493-00-00 |
— | ||
|
23
|
23
97316-06020-00 Bolt |
97316-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
23
|
23
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
24
|
24
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
24
|
24
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
25
|
25
8V0-2386J-00-00
Cushion
|
8V0-2386J-00-00 |
— | ||
|
26
|
26
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
27
|
27
95301-08700-00 Nut |
95301-08700-00 |
US $1.42 |
||
| replacement | |||||
|
27
|
27
95380-08700-00 Nut |
95380-08700-00 |
from US $1.42 |
||
|
28
|
28
8V0-23851-01-00
Arm, Outside 1
|
8V0-23851-01-00 |
— | ||
|
29
|
29
8V0-23852-01-00
Arm, Outside 2
|
8V0-23852-01-00 |
— | ||
| replacement | |||||
|
29
|
29
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
30
|
30
937-00060-04-00
Nipple, Grease
|
937-00060-04-00 |
— | ||
| replacement | |||||
|
30
|
30
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $2.66 |
||
|
31
|
31
90201-067F9-00 Washer, Plate |
90201-067F9-00 |
from US $1.56 |
||
|
32
|
32
90384-63188-00
Bush, Bimetal Formed
|
90384-63188-00 |
— | ||
|
33
|
33
90201-637F3-00 Washer, Plate |
90201-637F3-00 |
US $7.79 |
||
|
34
|
34
902-01635-H7-00
Washer, Plate
|
902-01635-H7-00 |
— | ||
|
35
|
35
93109-63044-00 Oil Seal |
93109-63044-00 |
US $7.79 |
||
|
36
|
36
934-10630-66-00 Circlip |
934-10630-66-00 |
US $8.19 |
||
|
37
|
37
90384-14091-00 Bush, Bimetal Formed |
90384-14091-00 |
from US $4.11 |
||
|
38
|
38
8V0-2382E-01-00
Arm, Front 1
|
8V0-2382E-01-00 |
— | ||
|
39
|
39
8V0-2382F-02-00 Arm, Front 2 (L, H) |
8V0-2382F-02-00 |
US $77.56 |
||
|
40
|
40
8V0-2383F-02-00 Arm, Front4 (R, H) |
8V0-2383F-02-00 |
US $71.14 |
||
|
41
|
41
903-84140-96-00 Bush, Bimetal Formed |
903-84140-96-00 |
from US $3.97 |
||
|
42
|
42
90387-10089-00 Collar |
90387-10089-00 |
from US $5.10 |
||
| replacement | |||||
|
42
|
42
90387-101Y9-00 Collar |
90387-101Y9-00 |
from US $5.10 |
||
|
43
|
43
90387-100A4-00 Collar |
90387-100A4-00 |
from US $3.32 |
||
|
44
|
44
90102-10054-00
Bolt, With Hole
|
90102-10054-00 |
— | ||
|
45
|
45
90102-10055-00
Bolt, With Hole
|
90102-10055-00 |
— | ||
|
46
|
46
914-01200-20-00
Pin, Cotter
|
914-01200-20-00 |
— | ||
| replacement | |||||
|
46
|
46
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
47
|
47
8V0-2376E-01-00
Bracket, 1
|
8V0-2376E-01-00 |
— | ||
| replacement | |||||
|
47
|
47
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
48
|
48
8V0-2377E-01-00
Bracket 2
|
8V0-2377E-01-00 |
— | ||
| replacement | |||||
|
48
|
48
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
49
|
49
90384-14091-00 Bush, Bimetal Formed |
90384-14091-00 |
from US $4.11 |
||
|
50
|
50
97326-08035-00 Bolt |
97326-08035-00 |
from US $2.13 |
||
| replacement | |||||
|
50
|
50
97017-08035-00 Bolt |
97017-08035-00 |
from US $2.13 |
||
|
51
|
51
929-06081-00-00
Washer, Spring
|
929-06081-00-00 |
— | ||
| replacement | |||||
|
51
|
51
92907-08100-00 Washer, Spring |
92907-08100-00 |
from US $0.85 |
||
|
52
|
52
8V0-2386E-01-00
Bar, Stablzr Front
|
8V0-2386E-01-00 |
— | ||
|
53
|
53
8V0-2386L-01-00
Arm, Stabilizer
|
8V0-2386L-01-00 |
— | ||
| replacement | |||||
|
53
|
53
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
54
|
54
8V0-2386M-01-00
Arm, Stabilizer 2
|
8V0-2386M-01-00 |
— | ||
| replacement | |||||
|
54
|
54
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
55
|
55
902-06120-52-00 Washer, Wave |
902-06120-52-00 |
from US $2.32 |
||
|
56
|
56
90201-08624-00 Washer, Plate |
90201-08624-00 |
from US $1.70 |
||
|
57
|
57
8V0-23841-02-00 Joint, Universal 1 |
8V0-23841-02-00 |
from US $34.90 |
||
| replacement | |||||
|
57
|
57
J45-23841-00-00 Joint Universal 1 (8V0-23841-02 |
J45-23841-00-00 |
from US $38.03 |
||
|
58
|
58
8V0-2386F-01-00
Link, Stablzr Front
|
8V0-2386F-01-00 |
— | ||
| replacement | |||||
|
58
|
58
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
59
|
59
95606-08100-00 Nut, U |
95606-08100-00 |
from US $3.26 |
||
| replacement | |||||
|
59
|
59
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
60
|
60
97326-06025-00 Bolt |
97326-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
60
|
60
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
61
|
61
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
61
|
61
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
62
|
62
95306-08700-00 Nut |
95306-08700-00 |
from US $1.56 |
||
| replacement | |||||
|
62
|
62
95317-08700-00 Nut, Hexagon Small |
95317-08700-00 |
from US $1.56 |
||
|
63
|
63
97306-08035-00 Bolt |
97306-08035-00 |
from US $2.13 |
||
| replacement | |||||
|
63
|
63
97017-08035-00 Bolt |
97017-08035-00 |
from US $2.13 |
||
