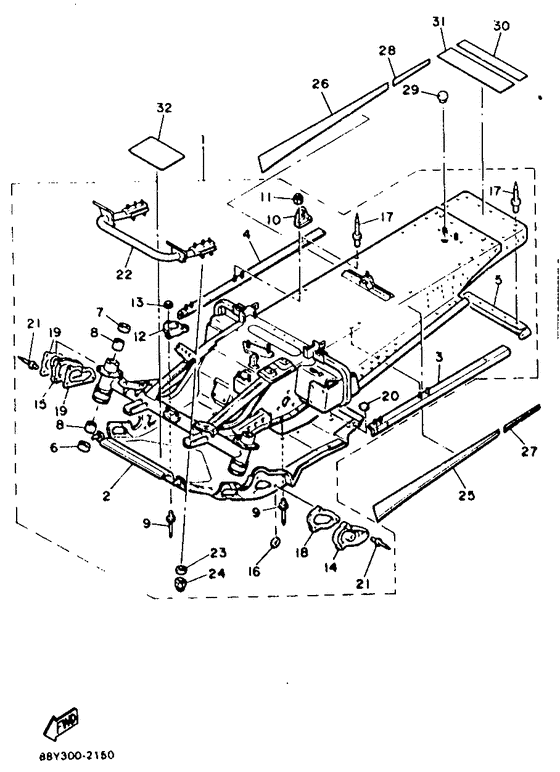

Frame Diagram Yamaha PZ480 Phazer II ST
- Model code
- 88Y2
- Engine Capacity
- 480
- Year
- 1992
- Sales region
- Europe (General) (999)
- Model
- Phazer II ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
88Y-21910-10-00
Frame comp
|
88Y-21910-10-00 |
— | ||
|
02
|
02
87F-21912-00-00 Belly Pan |
87F-21912-00-00 |
US $291.33 |
||
|
03
|
03
88Y-21964-00-00
Patch 4
|
88Y-21964-00-00 |
— | ||
|
04
|
04
88Y-21965-00-00
Patch 5
|
88Y-21965-00-00 |
— | ||
|
05
|
05
88X-21923-00-00 Reineforcement, Frame Rear 1 |
88X-21923-00-00 |
US $70.85 |
||
|
06
|
06
93103-36117-00 Oil Seal |
93103-36117-00 |
from US $15.58 |
||
|
07
|
07
93102-36232-00 Oil Seal |
93102-36232-00 |
from US $4.11 |
||
|
08
|
08
90384-36134-00 Bush, Bimetal Formed |
90384-36134-00 |
from US $6.80 |
||
|
09
|
09
90267-48141-00 Rivet, Blind (4.8X18.6 Black) |
90267-48141-00 |
from US $1.28 |
||
| replacement | |||||
|
09
|
09
90267-48018-00 Rivet, Blind (4.8X18.6 Black) |
90267-48018-00 |
from US $1.28 |
||
|
10
|
10
8V0-21946-00-00 Bracket, Seat Fitting |
8V0-21946-00-00 |
from US $5 |
||
|
11
|
11
95701-06300-00 Nut, Nylon |
95701-06300-00 |
from US $1.56 |
||
| replacement | |||||
|
11
|
11
95707-06300-00 Nut, Nylon |
95707-06300-00 |
from US $1.56 |
||
|
12
|
12
80L-21998-00-00
Spacer
|
80L-21998-00-00 |
— | ||
|
13
|
13
902-01043-25-00
Washer, Plate
|
902-01043-25-00 |
— | ||
| replacements | |||||
|
13
|
13
90201-04027-00 Washer, Plate |
90201-04027-00 |
from US $1.35 |
||
|
13
|
13
902-01044-R6-00
Washer, Plate (90201-04325-00 )
|
902-01044-R6-00 |
— | ||
|
14
|
14
8M6-2198F-00-00 Cover 1 |
8M6-2198F-00-00 |
from US $4.68 |
||
|
15
|
15
80L-2198G-00-00 Cover 2 |
80L-2198G-00-00 |
from US $32.46 |
||
|
16
|
16
90201-047A7-00 Washer, Plate |
90201-047A7-00 |
from US $1.35 |
||
| replacement | |||||
|
16
|
16
90201-04027-00 Washer, Plate |
90201-04027-00 |
from US $1.35 |
||
|
17
|
17
90266-04019-00
Rivet
|
90266-04019-00 |
— | ||
|
18
|
18
8M6-21998-00-00 Spacer |
8M6-21998-00-00 |
from US $2.69 |
||
|
19
|
19
80L-77526-00-00 Washer 2 |
80L-77526-00-00 |
US $18.85 |
||
|
20
|
20
80F-21998-00-00 Spacer |
80F-21998-00-00 |
from US $8.36 |
||
|
21
|
21
90267-40029-00 Rivet, Blind (4X18 Black) |
90267-40029-00 |
from US $3.26 |
||
|
22
|
22
87F-77512-00-00 Bumper, Front 2 |
87F-77512-00-00 |
US $112.92 |
||
|
23
|
23
90201-082E7-00 Washer, Plate |
90201-082E7-00 |
from US $2.70 |
||
| replacement | |||||
|
23
|
23
90201-083A6-00 Washer, Plate (3Y6) |
90201-083A6-00 |
from US $3.26 |
||
|
24
|
24
95712-08300-00 Nut, Lock |
95712-08300-00 |
from US $3.21 |
||
| replacement | |||||
|
24
|
24
957-17083-00-00 Nut, Flange |
957-17083-00-00 |
from US $3.26 |
||
|
25
|
25
89H-77351-00-00
Emblem 1
|
89H-77351-00-00 |
— | ||
|
26
|
26
89H-77352-00-00
Emblem 2
|
89H-77352-00-00 |
— | ||
|
27
|
27
89H-77353-00-00
Emblem 3
|
89H-77353-00-00 |
— | ||
|
28
|
28
89H-77354-00-00
Emblem 4
|
89H-77354-00-00 |
— | ||
|
29
|
29
810-77716-00-00
Ornament, Instrument Panel 2
|
810-77716-00-00 |
— | ||
|
30
|
30
88Y-77762-00-00
Label, Warning 2
|
88Y-77762-00-00 |
— | ||
|
31
|
31
88X-77351-00-00
Emblem 1
|
88X-77351-00-00 |
— | ||
| replacement | |||||
|
31
|
31
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
32
|
32
87F-2199H-00-00 Shield, Heat |
87F-2199H-00-00 |
from US $32.04 |
||
