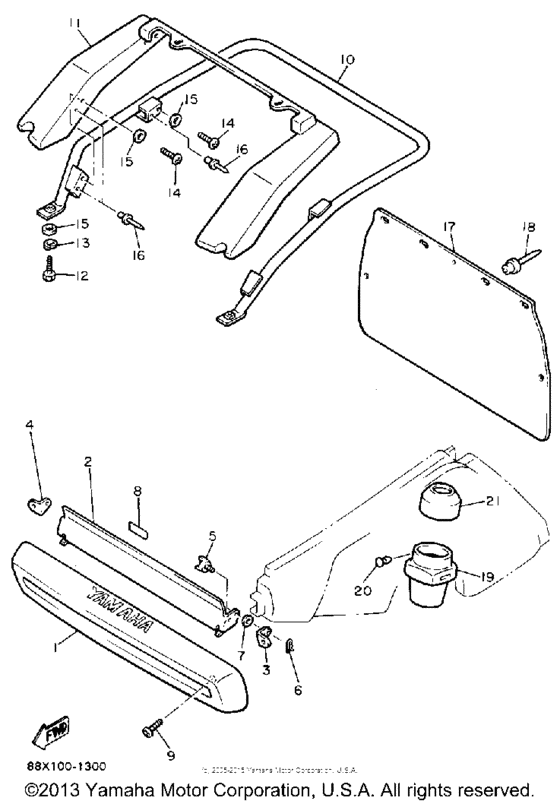

Bumper Diagram Yamaha PZ480 Phazer II ST
- Model code
- PZ480ST
- Engine Capacity
- 480
- Year
- 1991
- Sales region
- USA
- Model
- Phazer II ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
88F-77511-00-00 Bumper, Front 1 (White)WHITE |
88F-77511-00-00 |
US $150.68 |
||
|
2
|
2
80L-77185-00-00
Plate 1
|
80L-77185-00-00 |
— | ||
|
3
|
3
87F-77125-00-00 Stay 1 |
87F-77125-00-00 |
from US $5.88 |
||
|
4
|
4
87F-77126-00-00 Stay 2 |
87F-77126-00-00 |
from US $5.88 |
||
|
5
|
5
90122-05022-00 Bolt, Wing |
90122-05022-00 |
from US $2.39 |
||
|
6
|
6
90468-10003-00 Clip |
90468-10003-00 |
from US $3.14 |
||
|
7
|
7
90202-05088-00 Washer, Plate |
90202-05088-00 |
US $1.65 |
||
|
8
|
8
8Y0-77762-00-00 Label, Warning 2UR |
8Y0-77762-00-00 |
US $14.85 |
||
| replacement | |||||
|
8
|
8
8BE-77762-00-00 Label, Warning 2UR |
8BE-77762-00-00 |
US $13.77 |
||
|
9
|
9
98906-06016-00 Screw, Bind |
98906-06016-00 |
from US $1.50 |
||
| replacement | |||||
|
9
|
9
98907-06016-00 Screw, Bind |
98907-06016-00 |
from US $1.50 |
||
|
10
|
10
88X-77541-00-00
Bumper, Rear 1
|
88X-77541-00-00 |
— | ||
|
11
|
11
88X-77542-00-00
Bumper, Rear 2
|
88X-77542-00-00 |
— | ||
|
12
|
12
97011-08016-00 Bolt(2Vy) |
97011-08016-00 |
from US $1.20 |
||
| replacement | |||||
|
12
|
12
97017-08016-00 Bolt |
97017-08016-00 |
from US $1.20 |
||
|
13
|
13
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.50 |
||
|
14
|
14
98980-08025-00 Screw, Bind (98902-08025-00)98902-08025-00 |
98980-08025-00 |
from US $3.28 |
||
|
15
|
15
92990-08200-00 Washer, Plain |
92990-08200-00 |
US $0.90 |
||
|
16
|
16
90267-48117-00 Rivet, Blind |
90267-48117-00 |
US $6.08 |
||
|
17
|
17
85L-77595-00-00
Flap
|
85L-77595-00-00 |
— | ||
| replacement | |||||
|
17
|
17
8V9-77595-00-00
Flap
|
8V9-77595-00-00 |
— | ||
|
18
|
18
90267-48086-00 Rivet, Blind (4.8X19 Black)4.8X19 BLACK |
90267-48086-00 |
from US $1.65 |
||
|
19
|
19
82M-77551-00-00 Protector 1 |
82M-77551-00-00 |
US $51.01 |
||
|
20
|
20
90269-04025-00 Rivet |
90269-04025-00 |
from US $1.50 |
||
|
21
|
21
82M-77554-01-00 Protector 4 |
82M-77554-01-00 |
from US $21.84 |
||
